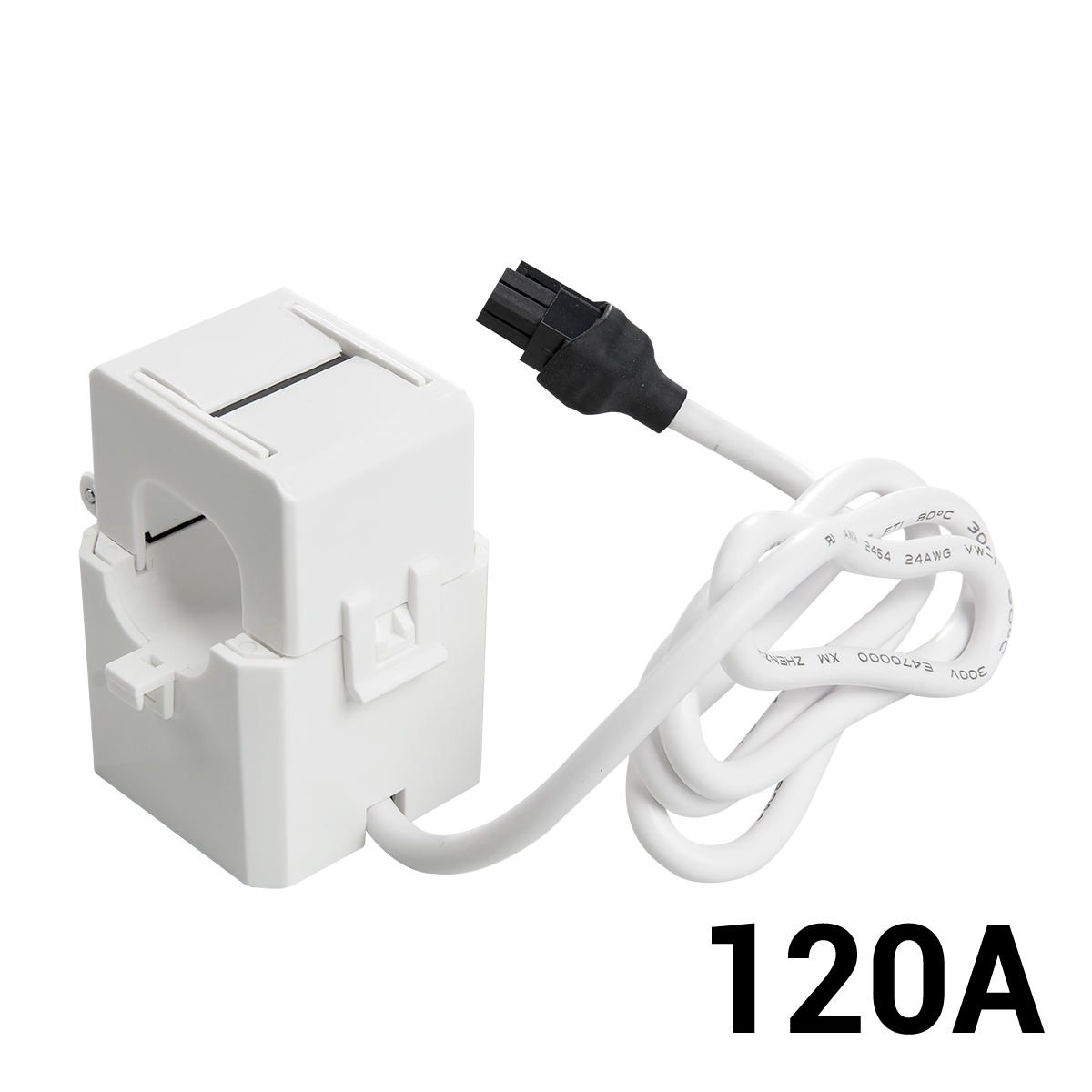

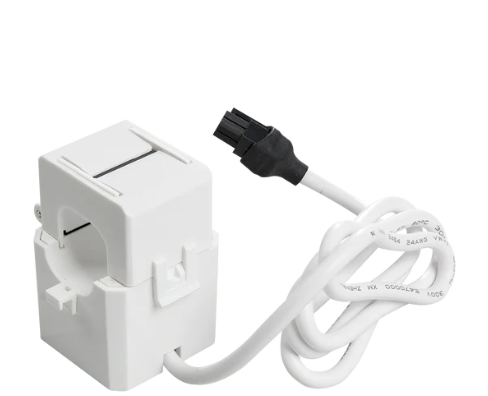

Shelly Clamp 120A

Shelly Clamp 120A

$32.20 AUD
$32.20 AUD
Sale Sold out
Tax included. Shipping calculated at checkout.
  • We use Australia Post Carbon Neutral Shipping: 2-5 Days $9.99, 1-3 Days $15 or StarTrack Premium $20
  • Order before Midday and we Dispatch the same day
  • Found a Cheaper Price we will Match it

120A Clamp for Shelly EM*

Please note: You must have a Shelly EM for this to have functionality.

*Please NOTE: This product is NOT compatible with the Shelly Pro 3EM

Specification:

FEATURES

  • Accuracy1%
  • Core: Ferrite core
  • Electrical Strength: 3000 VAC at 1 mA 60s
  • Internal diameter: 16mm
  • Load Resistance: 20Ω
  • Rated Primary Current: 120A
  • Rated Secondary Current: 40 mA
  • Saturation current: ≥ 120A

    View full details

    Customer Reviews

    Based on 2 reviews
    50%
    (1)
    50%
    (1)
    0%
    (0)
    0%
    (0)
    0%
    (0)
    A
    Anonymous
    Great Item for Home Metering

    I have purchased a number of these and I use them with Shelly EM. They seem to do a very good job. I have continuous graphs running on my home assistant using these devices. However, there is a very small error. They read about 7 Watts, instead of 0 Watts, at night when my solar panels are not generating, so I suspect they are picking up readings from adjacent cables in the meter box. Better positioning of the device, ie. not in the meter box, would probably resolve this very small error.
