Oz Smart ZigBee Push Dimmer

Oz ZigBee Push Button Smart Dimmer

PRE-ORDER: Shipping from the 17th of October

The Oz ZigBee Push Button Smart Dimmer is the latest innovation in smart lighting, designed with advanced ZigBee 3.0 protocol compatibility. This compact, versatile dimmer delivers seamless control over your lighting, offering features that enhance both user experience and energy efficiency.

Key Features:

• ZigBee 3.0 Compatibility: Based on the latest ZigBee 3.0 protocol, ensuring compatibility with a wide range of ZigBee-enabled smart home ecosystems.

• Neutral-Free Wiring: Simplifies installation by eliminating the need for a neutral wire, making it ideal for older homes and new builds alike.

• Versatile Load Support: Controls resistive, capacitive, and inductive loads, accommodating various types of lighting, including dimmable LED bulbs, incandescent lights, and low-voltage halogen lamps.

• Advanced Dimming Control: Features leading-edge and trailing-edge dimming modes, preset by factory settings, allowing for smooth, flicker-free dimming up to 350W.

• Customizable Brightness Settings: Easily set minimum and startup brightness levels to suit your preferences, enhancing the overall lighting experience.

• Touchlink Commissioning: Supports direct pairing with ZigBee remotes via Touchlink without needing a coordinator, enabling quick and hassle-free setup.

• Multiple Control Options: Can be controlled via ZigBee gateways, remotes, or directly through a local push button, offering flexible control solutions.

• Self-Forming ZigBee Network: Capable of creating its own ZigBee network without a coordinator and adding other devices to the network, enhancing the stability and reach of your smart home setup.

• Find and Bind Mode: Simplifies pairing with ZigBee remotes, making it easier to expand your smart lighting system.

• Energy and Power Monitoring: Built-in energy metering allows you to monitor power usage in real-time, helping you optimize energy efficiency.

• Compact Design: Fits standard Australian wall switch plates, making it compatible with existing installations without the need for additional modifications.

• IP20 Rated: Designed for indoor use with a robust build that ensures long-lasting performance.

• • Standby Power Consumption: <0.5W
  • Power Consumption Monitoring: Supported
  • Default Dimming Level on Power-On:
    • The dimmer retains the last brightness setting. For example, if set to 80% before turning off, it will resume at 80% when turned back on.
  • Memory Function (Restoring Last Dimming Level):
    • Yes, configurable via Home Assistant. Four power-on state options are available:
      1. Off
      2. On
      3. Switch
      4. Last state
  • Minimum Dimming Level: Supported
  • Maximum Dimming Level: Not supported
  • Adjustable Dimming Speed (Up/Down):
    • Speed adjustment is not directly supported, but the dimming curve can be modified.
  • Fade-in Speed (When Turning On): Supported
  • Fade-out Speed (When Turning Off): Supported

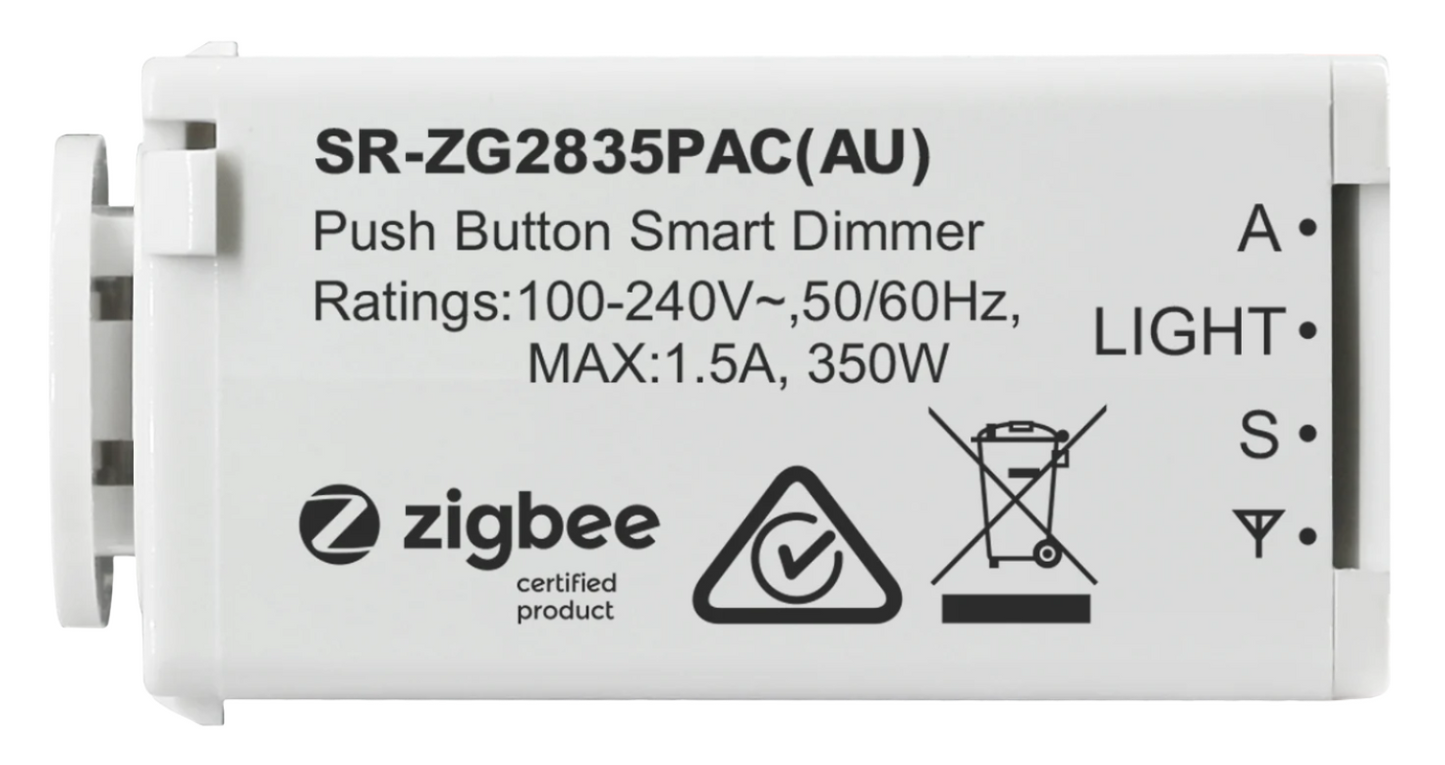

Product Specifications:

• Input/Output Voltage: 100-240VAC
• Output Current: Up to 1.5A
• Maximum Load: 350W @ 230V, 175W @ 110V
• Operating Temperature: -20°C ~ +50°C
• Dimensions: 45 x 21 x 21mm
• Radio Frequency: 2.4GHz

Installation Notes:

• Safety First: Ensure the power is turned off before installation. Licensed Electrical must be used for installation
• Wiring: Simple, neutral-free wiring; refer to the included diagram for correct installation.

Whether upgrading your existing lighting or integrating smart controls into your new home, the ZG2835PAC(AU) ZigBee Push Button Smart Dimmer is the perfect solution for achieving modern, energy-efficient lighting control.
