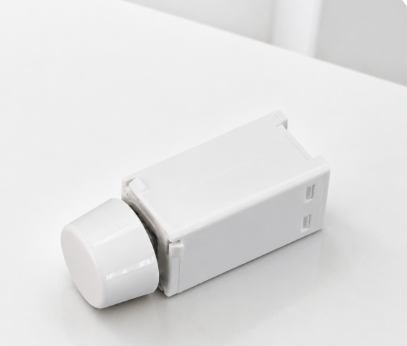

Oz Smart ZigBee Rotary Dimmer

SR-ZG2835RAC(AU) Oz ZigBee Rotary Smart Dimmer

The SR-ZG2835RAC(AU) Knob Smart Dimmer is a versatile and stylish solution for controlling the brightness of your lights with precision and ease. Designed for the modern smart home, this Zigbee-compatible dimmer combines traditional rotary control with advanced smart features, allowing you to seamlessly integrate it into your existing Zigbee network.

Key Feature:

• ZigBee 3.0 Protocol: Advanced compatibility with the latest ZigBee 3.0 standard for seamless integration.
• Neutral-Free Wiring: Simplified installation process without the need for a neutral wire.
• Load Compatibility: Supports resistive, capacitive, and inductive loads, making it versatile for various lighting types.
• Adjustable Brightness Settings: Set and adjust minimum brightness and startup brightness to suit your preferences.
• Single Channel Output: Capable of controlling loads up to 350W.
• Leading/Trailing Edge Dimming: Factory preset options available for precise control over different load types.
• Multifunctional Control: ON/OFF control and light intensity adjustment directly via the knob or remotely through a ZigBee network.
• Touchlink Commissioning: Pair with compatible ZigBee remotes and devices without a coordinator for quick and easy setup.
• Universal Compatibility: Works with most ZigBee gateways and can bind up to 20 ZigBee green power switches.
• Push Switch Input: Allows control via a standard AC push switch.
• Compact Design: Fits standard Australian wall switch plates.
• IP20 Waterproof Rating: Suitable for indoor use, providing durability and reliability.
• OTA Firmware Updates: Automatically receive firmware updates from the ZigBee controller for the latest features.
• Standby Power Consumption: <0.5W
• Power Consumption Monitoring: Supported

• Default Dimming Level on Power-On:
  • The dimmer retains the last brightness setting. For example, if set to 80% before turning off, it will resume at 80% when turned back on.

• Memory Function (Restoring Last Dimming Level):
  • Yes, configurable via Home Assistant. Four power-on state options are available:
    1. Off
    2. On
    3. Switch
    4. Last state

• Minimum Dimming Level: Supported
• Maximum Dimming Level: Not supported
• Adjustable Dimming Speed (Up/Down):
  • Speed adjustment is not directly supported, but the dimming curve can be modified.

• Fade-in Speed (When Turning On): Supported
• Fade-out Speed (When Turning Off): Supported

This dimmer is an ideal solution for smart home enthusiasts looking to upgrade their lighting system with advanced ZigBee technology and user-friendly features.

OTA can be done via the Sunricher app and Sunricher Hub.
