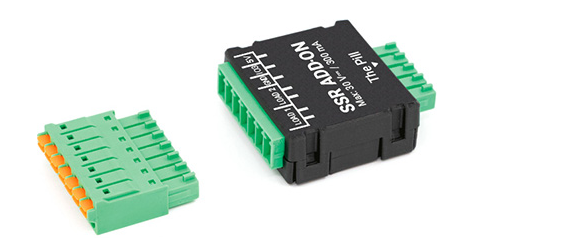

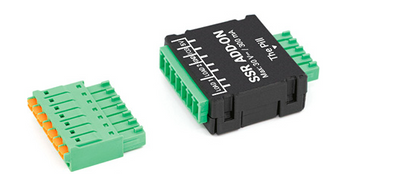

SSR Add-on for The Pill by Shelly

SSR Add-on for The Pill by Shelly | Dual-Channel DC Load Control Accessory

The Dual Channel DC Load Control Add-On is designed to isolate and control two independent DC loads up to 30V / 300mA per channel. Using galvanically isolated solid-state relay outputs, it provides reliable low-voltage DC switching for smart control projects, automation setups, and connected devices.

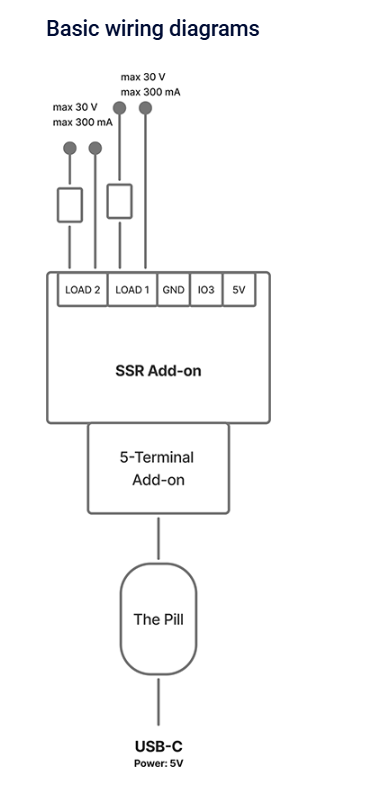

This add-on is ideal for applications where two separate DC circuits need to be controlled safely and independently. It connects with The Pill using the required 5-Terminal Add-on, making it a compact and flexible solution for advanced DC load automation.

Key Features

• Controls two independent DC loads
• Supports up to 30V / 300mA per channel
• Galvanically isolated solid-state relay outputs
• 2 potential-free contact outputs: LOAD1 and LOAD2
• 1 configurable digital input/output: IO3
• Optional 5V and GND power terminals
• Compact black design
• Low power consumption under 0.6W
• Designed for use with The Pill
• Requires 5-Terminal Add-on for connection

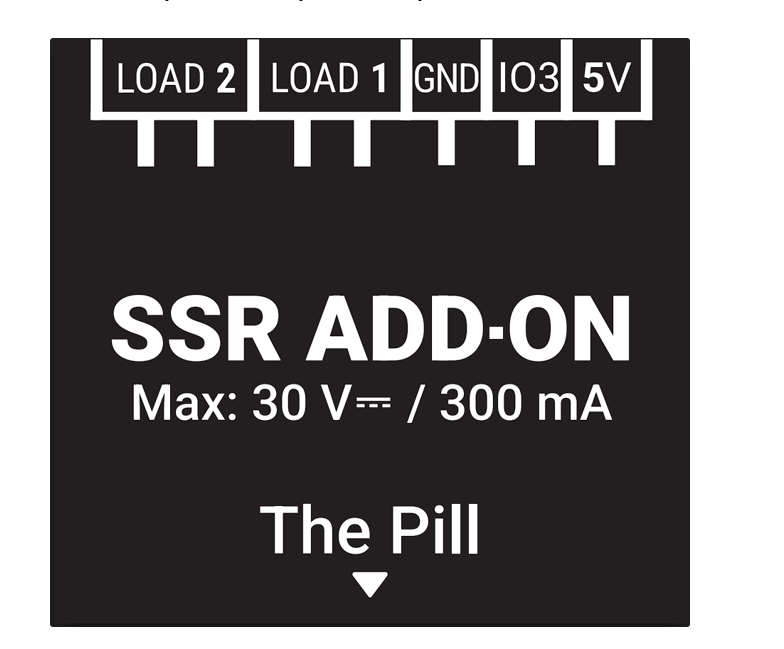

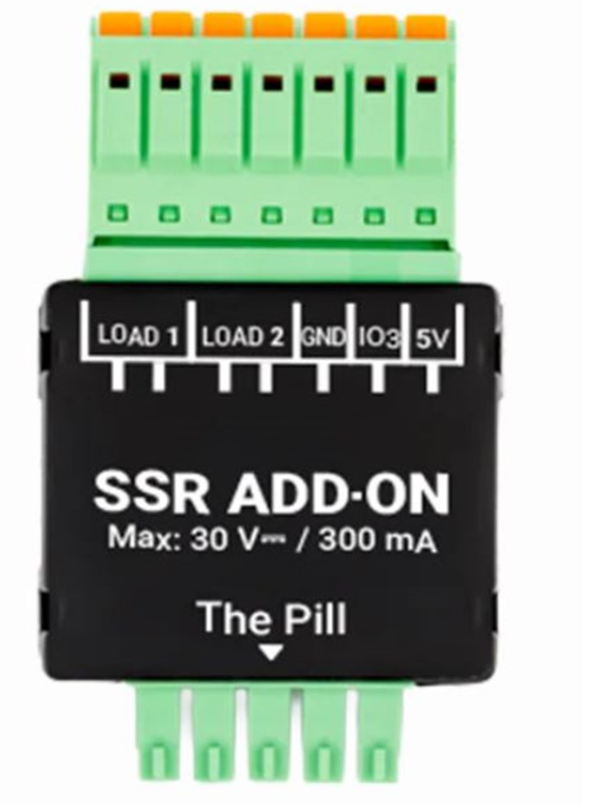

Device Interfaces

• LOAD1: Channel 1 output, max 30V DC / 300mA
• LOAD2: Channel 2 output, max 30V DC / 300mA
• IO3: Configurable 3.3V logic-level digital input or output
• GND: Reference ground for connected sensors or power supply
• 5V: Power output for peripherals or 5V power for The Pill

Specifications

• Size: 36 mm x 31 mm x 11.5 mm
• Weight: 12 g
• Colour: Black
• Max switching voltage: 30V DC
• Max switching current: 300mA
• Power consumption: < 0.6W
• Operating temperature: 0°C to 40°C
• Humidity: 30% to 70% RH

The Dual Channel DC Load Control Add-On is a compact and practical solution for controlling low-voltage DC loads in smart automation and custom electronics projects.
