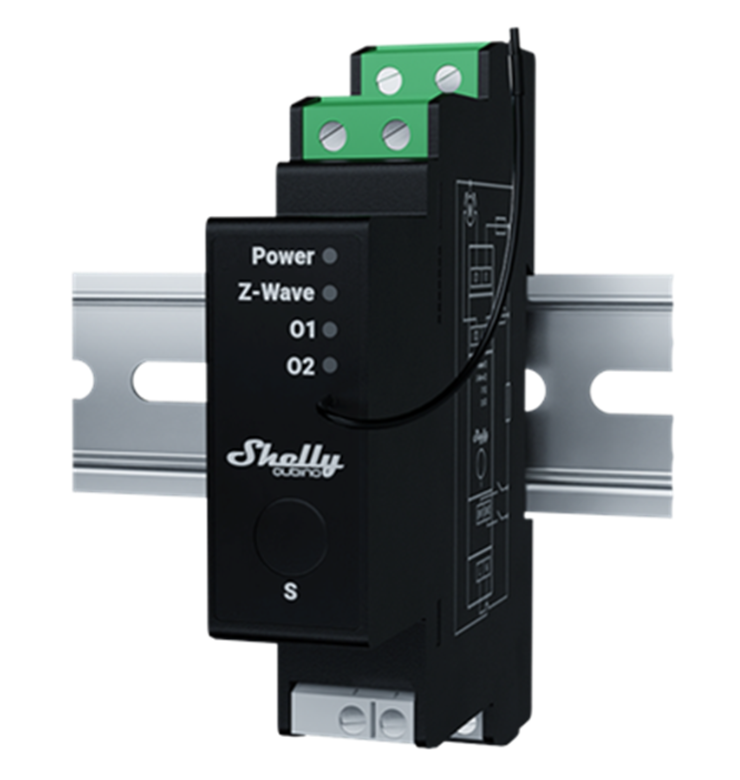

Shelly Wave Pro Shutter – Smart DIN-Rail Shutter & Blind Controller

Shelly Wave Pro Shutter is a DIN rail–mountable Z-Wave smart shutter controller designed for motorized blinds, roller shutters, venetian blinds, awnings, and similar applications. It enables full remote control, supports automatic calibration, and includes built-in power measurement for precise energy monitoring of connected motors.

Important: Use only with motors that have electronic or mechanical limit switches. Limit switches must be correctly set before connecting the device.

The device supports local control via connected switches or push-buttons, offering full manual open/close/stop operation depending on configuration.

Automatic calibration ensures accurate shutter position handling. Calibration can be initiated via the gateway, the SW1 input, or the onboard S button.

Venetian mode is supported for slat-tilting blinds, with adjustable rotation time to match the blind mechanism.

Main Applications

  • Residential homes
  • MDU environments (apartments, hotels, condominiums)
  • Light commercial buildings
  • Government and municipal facilities
  • Universities and colleges
  • Farming applications

Integrations

Shelly Qubino Wave devices are built using leading Z-Wave technology and are compatible with all certified Z-Wave gateways. Compatibility is continually tested to ensure smooth operation across various ecosystems supporting Z-Wave.

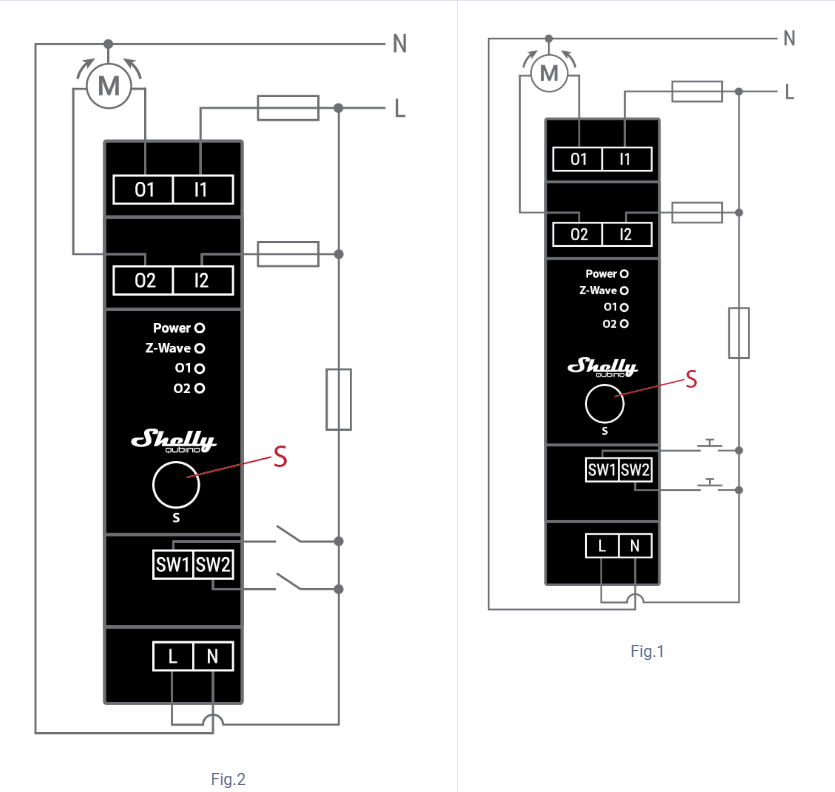

Device Interfaces

Inputs

  • 2 × switch/button inputs
  • Power supply inputs: N and L

Outputs

  • 2 × relay outputs with power measurement

Connectivity

  • Z-Wave (Unsecure, S0, S2 Unauthenticated, S2 Authenticated)
  • Acts as a Z-Wave repeater

Safety Features

  • Overload detection
  • Overheat protection
  • Overvoltage protection

Supported Load Types

  • Resistive loads
  • Capacitive loads
  • Inductive loads (with RC Snubber)

User Interface & S Button

The onboard S Button provides enrollment, deletion, and factory-reset functionality, as well as access to calibration mode. LED indicators display operational status and mode selection.

Functionality Highlights

  • Automatic shutter calibration (up, down, up, then down to 50%)
  • Venetian mode with adjustable slat-tilt rotation time
  • Power monitoring for connected motor loads

Specifications

  • Power Supply: 110–240 V AC, 50/60 Hz
  • Power Consumption: < 0.3 W
  • Power Measurement: Yes
  • Max Load: 16 A per channel
  • Operating Temperature: -20°C to 40°C
  • Dimensions: 94 × 19 × 69 mm
  • Mounting: DIN rail
  • Material/Color: Black plastic
