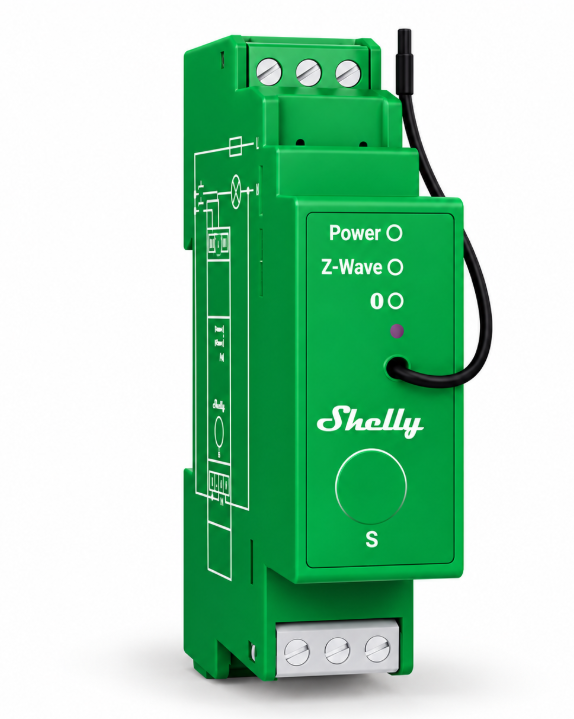

Shelly Wave Pro Dimmer 1PM

Shelly Wave Pro Dimmer 1PM – Z-Wave Smart DIN Rail Dimmer with Power Monitoring

Upgrade your lighting with the Shelly Wave Pro Dimmer 1PM, a professional single-channel Z-Wave smart dimmer designed for intelligent lighting control in Australian homes, offices and commercial buildings.

Featuring trailing-edge dimming, up to 200W load capacity, built-in power monitoring and advanced Z-Wave S800 technology, this compact DIN rail controller delivers precise brightness control and smart home integration.

Control compatible dimmable LED lights, incandescent bulbs, halogen lamps and supported transformer-based lighting using conventional wall switches, push buttons or a compatible Z-Wave automation system.

Whether you're upgrading an existing lighting circuit or building a fully automated smart property, the Shelly Wave Pro Dimmer 1PM combines intelligent control, energy monitoring and reliable Z-Wave connectivity in one professional DIN rail solution.

Key Features & Benefits

• Smart Single-Channel Dimming: Control one lighting circuit with adjustable brightness and automation capabilities.
• Up to 200W Output: Supports compatible dimmable lighting loads up to 200W.
• Trailing-Edge Dimming: Designed for compatible dimmable LED, incandescent, halogen and transformer-based lighting.
• Z-Wave S800 Technology: Advanced wireless communication for compatible smart home automation networks.
• Built-in Power Monitoring: Monitor the electrical consumption of connected lighting through supported Z-Wave gateways.
• Compact DIN Rail Design: Professional installation inside compatible electrical distribution boards.
• Existing Switch Compatibility: Works with conventional switches and push buttons for manual lighting control.
• Two Switch Inputs: Flexible input configuration for switching, dimming and supported automation functions.
• Z-Wave Repeater: Helps extend the coverage of compatible Z-Wave mesh networks.
• Secure Communication: Supports Z-Wave S0, S2 Unauthenticated and S2 Authenticated security.
• Electrical Protection: Integrated overheating, overcurrent and overvoltage protection.
• Smart Home Integration: Compatible with supported Z-Wave gateways, including Home Assistant systems with suitable Z-Wave hardware.
• Remote Access: Control and monitor lighting remotely through a compatible internet-connected Z-Wave gateway.
• Local Operation: Supports standalone manual switch control without requiring an internet connection.

Professional Trailing-Edge LED Dimming

The Shelly Wave Pro Dimmer 1PM uses trailing-edge dimming technology to control compatible dimmable lighting loads.

Adjust light brightness to create the ideal atmosphere for working, relaxing, entertaining or nighttime use.

With supported calibration functionality, the device can be configured for compatible lighting installations to help achieve improved dimming performance.

Supported Lighting Loads

• Dimmable LED Lamps: Up to 200W
• Incandescent Bulbs: Up to 200W
• Halogen Lamps: Up to 200W
• Iron-Core Transformers with Low-Voltage Incandescent Lamps: Up to 200VA
• Dimmable Electronic Transformers: Up to 200W

Important: Connected LED lamps and drivers must support trailing-edge dimming. Verify the electrical characteristics and compatibility of the connected lighting before installation.

Smart Lighting Automation Applications

1. Smart Home Lighting Control

Upgrade compatible household lighting circuits with smart dimming and automation. Adjust brightness using wall switches or your preferred Z-Wave smart home platform.

Create lighting settings for living rooms, bedrooms, kitchens, entertainment areas and other spaces where adjustable brightness improves comfort.

2. Home Assistant Integration

Connect the Shelly Wave Pro Dimmer 1PM to Home Assistant using a compatible Z-Wave controller and supported integration such as Z-Wave JS.

Build smart automation scenarios based on time, motion detection, occupancy, environmental conditions or other connected smart home devices.

3. Commercial Lighting Automation

Suitable for offices, retail stores, restaurants and commercial properties requiring professional lighting control.

Combine lighting automation with a supported Z-Wave controller to manage brightness, monitor electrical usage and streamline building operations.

4. Energy Monitoring & Management

The integrated power measurement feature allows supported Z-Wave gateways to monitor electricity consumption from the connected lighting circuit.

Use this information to better understand lighting energy usage and identify opportunities for more efficient operation.

5. Retrofit Existing Lighting Installations

Introduce smart lighting control into compatible existing electrical installations while retaining suitable conventional wall switches or push buttons.

The DIN rail design makes it particularly useful for professional installations where control equipment is located inside an electrical distribution board.

6. Apartment & Multi-Dwelling Automation

Suitable for automation projects in apartments, hotels, universities, offices and other multi-dwelling or commercial buildings using compatible Z-Wave infrastructure.

Z-Wave S800 Smart Home Connectivity

The Shelly Wave Pro Dimmer 1PM uses Z-Wave S800 technology, allowing the device to communicate with compatible Z-Wave gateways and other supported Z-Wave equipment.

Unlike Wi-Fi smart dimmers, Shelly Wave devices communicate using the Z-Wave protocol and require a compatible Z-Wave gateway for network-based automation.

Once paired with a suitable controller, the device can become part of a larger smart home system with lighting scenes, automation routines and remote management.

Supported Z-Wave Security Modes

• Z-Wave Unsecure
• S0 Security
• S2 Unauthenticated Security
• S2 Authenticated Security

Z-Wave Mesh Network Repeater

The Shelly Wave Pro Dimmer 1PM also functions as a Z-Wave repeater, helping relay compatible network communications and extend Z-Wave coverage throughout a property.

Compatible Smart Home Platforms

The Shelly Wave Pro Dimmer 1PM is designed for compatible certified Z-Wave gateways. Manufacturer compatibility testing includes:

• Home Assistant: Tested dimming, switch dimming, detached controls and binary input reporting.
• Fibaro Home Center 3: Tested dimming and advanced input functionality.
• Homey: Supports tested dimming and binary input functions, with limitations on detached scene control.
• Homee Gen 7: Tested dimming and supported switch control functionality.
• Homee Gen 5: Compatibility testing pending for the listed functions.
• Samsung SmartThings: Tested basic dimming functionality; advanced input functions may not be available.
• Vera Ezlo: Tested basic dimming functionality with limitations on advanced controls.

Gateway compatibility and available features depend on the controller model, firmware, supported Z-Wave command classes and regional frequency. Some advanced scene-control functions may not be available on every platform.

Manual Switch & Push-Button Control

The device includes two switch/push-button inputs, allowing compatible conventional wall controls to be used alongside smart home automation.

Depending on configuration and controller compatibility, connected inputs may provide manual switching, brightness adjustment and detached input reporting for supported automation functions.

Built-In Safety Protection

The Shelly Wave Pro Dimmer 1PM includes multiple protection mechanisms to support reliable operation.

• Overheating Protection: Helps protect the device when excessive operating temperatures are detected.
• Overcurrent Protection: Provides protection against excessive load current.
• Overvoltage Protection: Helps protect the controller against excessive electrical voltage.

Electrical Interfaces & Terminals

• N: Neutral supply terminal
• L: Live supply terminals (110–240V AC)
• SW1: Switch/push-button input for lighting control
• SW2: Additional switch/push-button input
• O1: Dimmable lighting circuit output

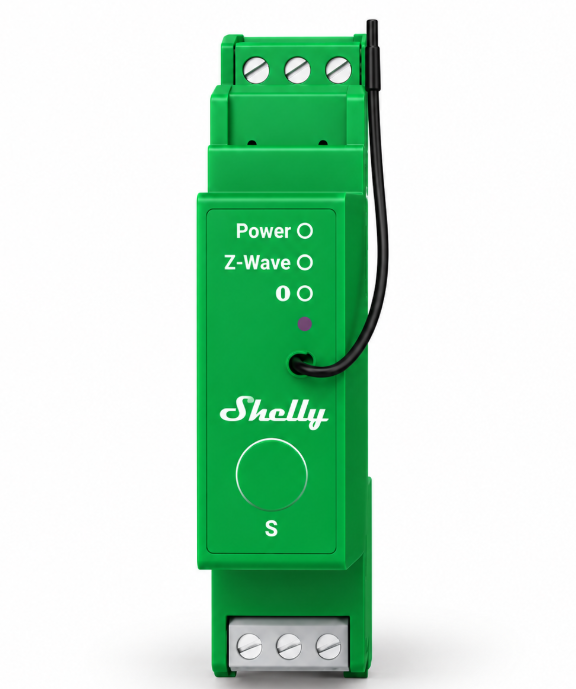

• S Button: Used for Z-Wave network inclusion, exclusion and factory reset procedures

Technical Specifications

Frequently Asked Questions

What is the Shelly Wave Pro Dimmer 1PM?

The Shelly Wave Pro Dimmer 1PM is a DIN rail-mounted, single-channel Z-Wave smart dimmer that provides trailing-edge lighting control and built-in power monitoring.

Can I use it with Home Assistant?

Yes. Home Assistant is included in the manufacturer's tested compatibility list. A suitable Z-Wave controller and integration, such as Z-Wave JS, are required.

Does the Shelly Wave Pro Dimmer 1PM require a hub?

A compatible Z-Wave gateway is required for network automation and remote control. Local operation using connected switches or push buttons is also supported.

Does the device connect directly to Wi-Fi?

No. The Shelly Wave Pro Dimmer 1PM communicates through the Z-Wave wireless protocol rather than Wi-Fi.

Can I dim LED downlights?

Yes, provided the LED lamps or drivers are compatible with trailing-edge dimming and the connected load stays within the rated 200W output capacity.

Can I use an existing wall switch?

Yes. The device supports conventional switches and push buttons through its two control inputs.

Does the Shelly Wave Pro Dimmer 1PM measure power usage?

Yes. The device includes built-in power measurement for monitoring the connected lighting circuit through supported Z-Wave gateways.

Does this device work as a Z-Wave repeater?

Yes. It supports Z-Wave repeating functionality, helping extend compatible Z-Wave mesh network coverage.

Can I use it with Samsung SmartThings?

The manufacturer lists tested basic dimming compatibility with SmartThings. Some advanced scene and binary input functions are not supported in the supplied compatibility testing.

Can the device control multiple lighting circuits?

No. The Wave Pro Dimmer 1PM has one dimming output. For independent control of two lighting circuits, consider the Shelly Wave Pro Dimmer 2PM.

Is professional installation required?

Yes. Installation involving fixed mains electrical wiring in Australia must be performed by an appropriately licensed electrician.

Why Buy Shelly Wave Pro Dimmer 1PM from Oz Smart Things?

At Oz Smart Things, we specialise in smart home products, Z-Wave automation, intelligent lighting and professional smart building solutions for Australian customers.

The Shelly Wave Pro Dimmer 1PM combines advanced Z-Wave connectivity, precise dimming control, energy monitoring and a compact DIN rail form factor, making it a practical solution for modern electrical installations.

Shop the Shelly Wave Pro Dimmer 1PM at Oz Smart Things and bring intelligent Z-Wave lighting control to your home or business.

Important: A compatible regional Z-Wave gateway is required for network operation. Confirm the device frequency, Australian electrical compliance, dimmable load compatibility and installation requirements before purchasing. The Z-Wave gateway is sold separately unless stated otherwise.
