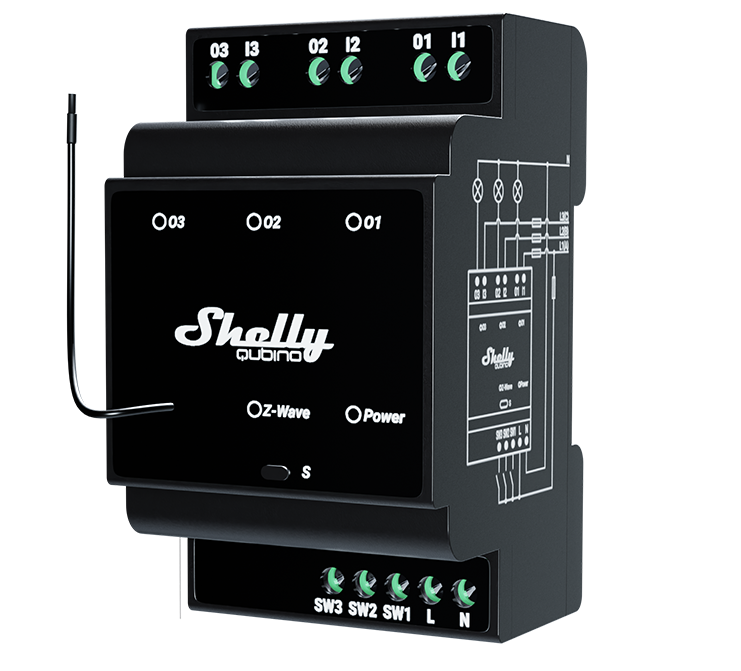

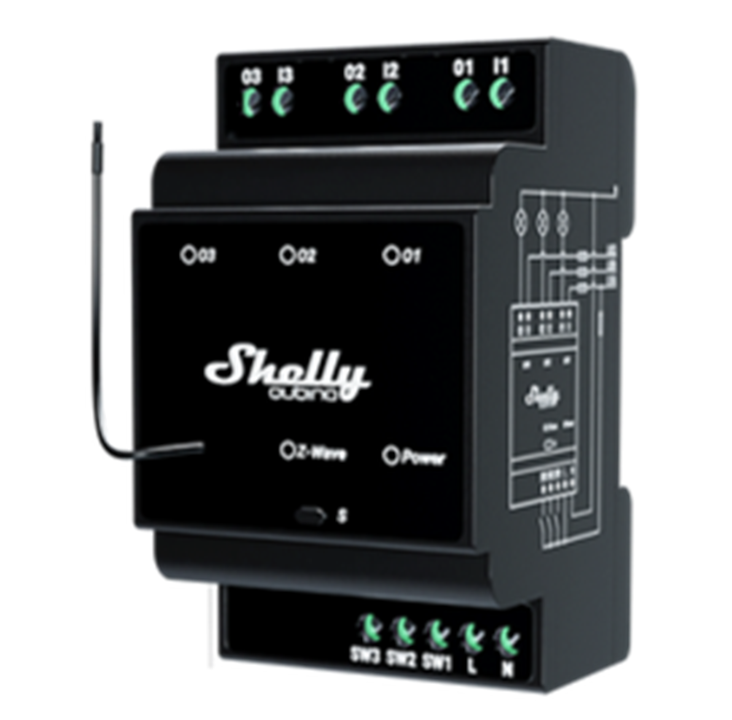

Shelly Wave Pro 3

Shelly Wave Pro 3 – Professional 3-Channel Z-Wave DIN Rail Smart Switch

The Shelly Wave Pro 3 is a DIN rail mountable, professional-grade 3-channel smart switch designed for seamless automation of residential, commercial, and industrial environments. Featuring three independently controlled potential-free relay outputs (up to 16 A per channel / 48 A total), it offers unmatched flexibility for switching a wide range of electrical loads.

With support for switches, push-buttons, and switch-memory modes, the device integrates effortlessly into existing electrical installations. Powered by the Z-Wave S800 platform, it ensures fast, secure, and reliable communication with all certified Z-Wave gateways.

Key Features

• 3 independent relay channels (potential-free contacts)
• Supports switch, push-button, and switch-memory modes
• Up to 16 A per channel, 48 A total
• Z-Wave S800 with S2 Authenticated Security
• Supports Z-Wave associations for advanced scene automation

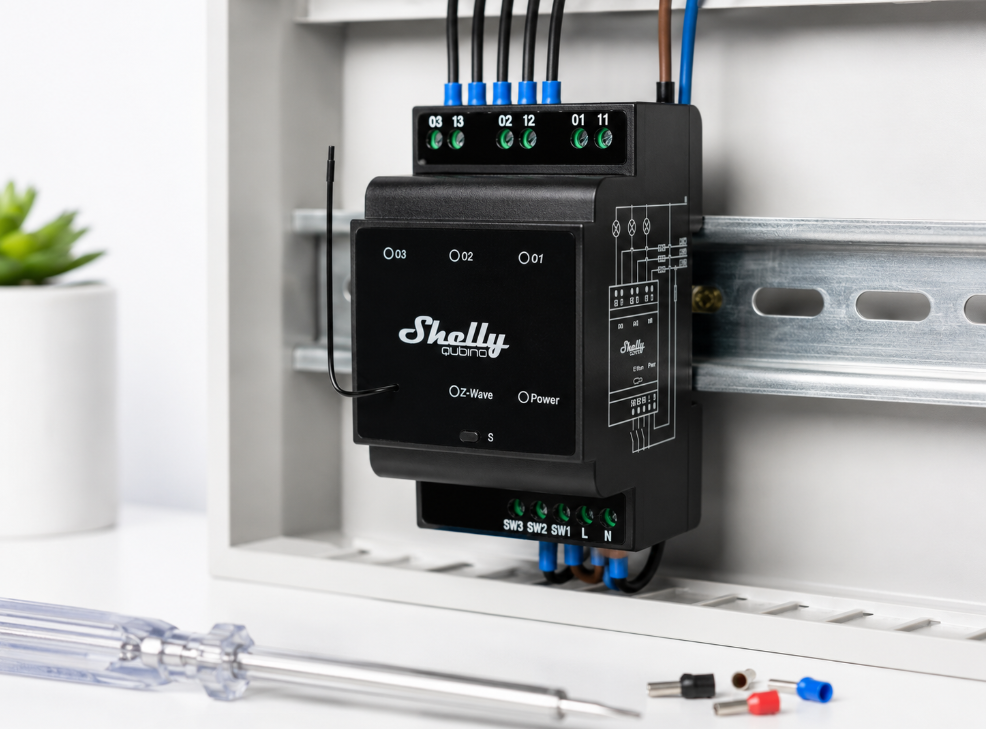

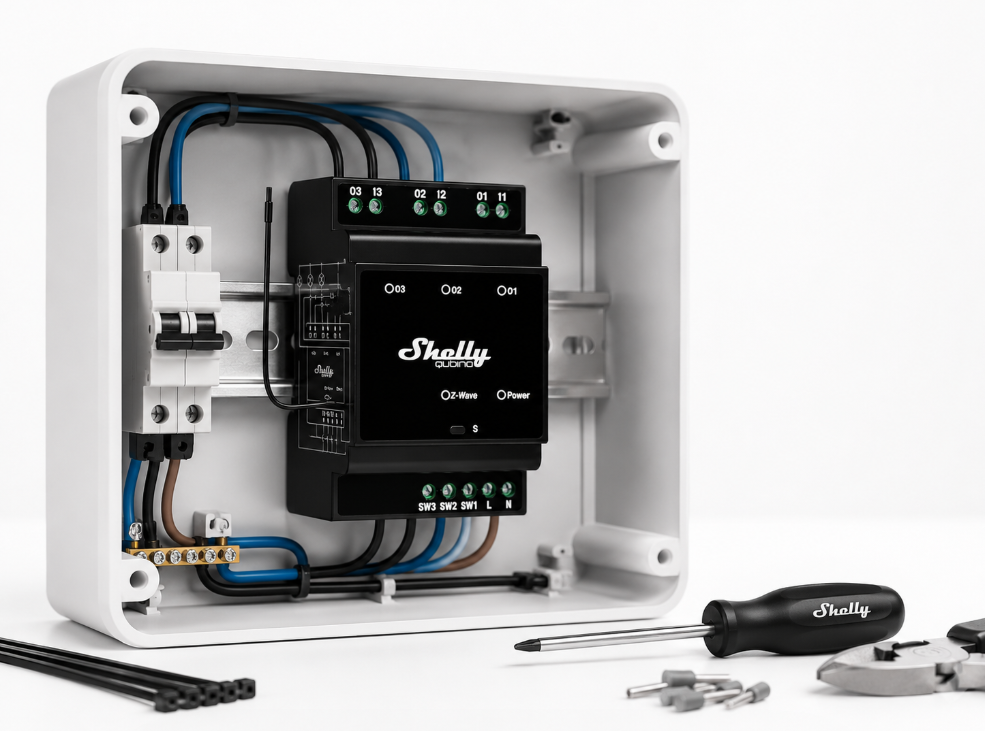

• DIN rail mountable – ideal for professional installations
• Overheat protection for added safety
• Compatible with resistive, capacitive, and inductive loads (with RC snubber)

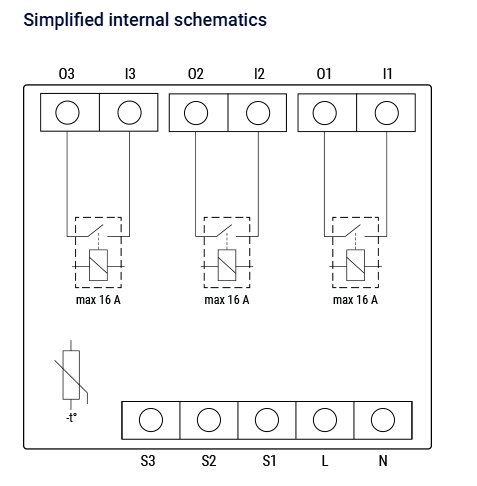

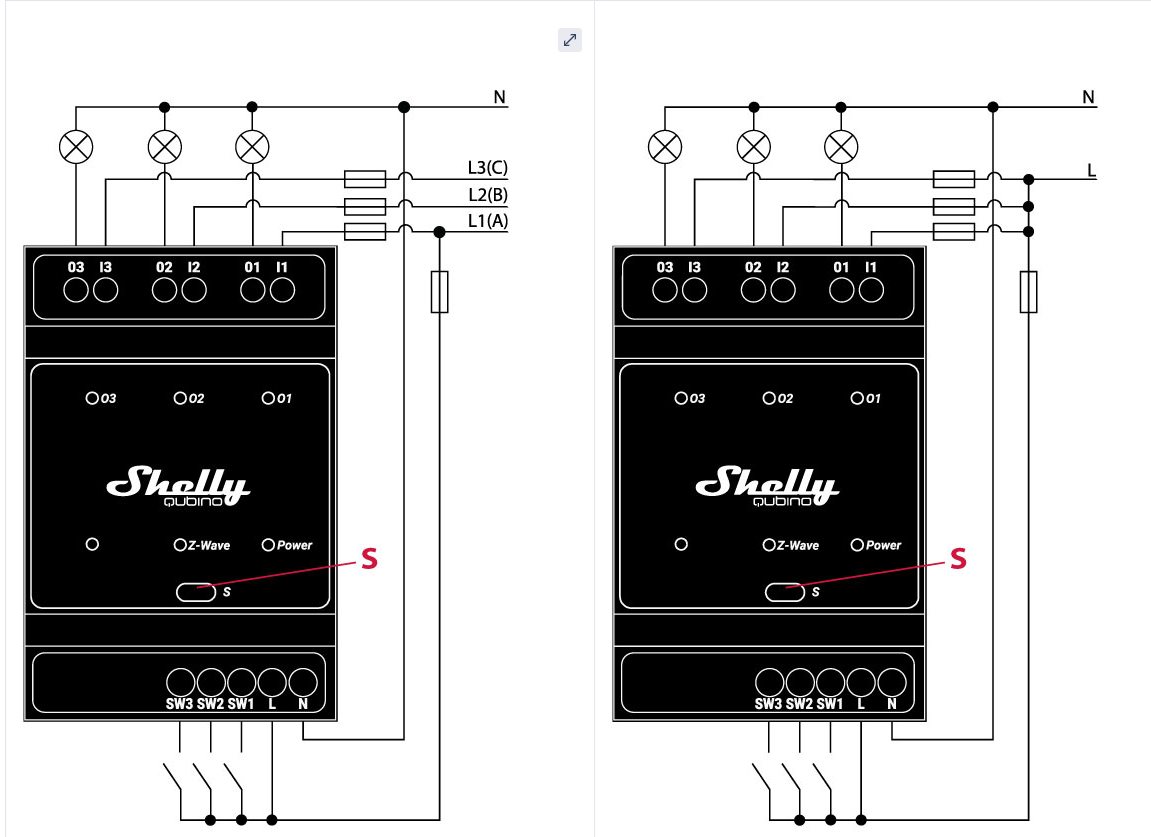

Input & Output Options

Inputs:

• 3 switch or push-button inputs
• 2 power supply terminals (N, L)

Outputs:

• 3 potential-free relay outputs

Ideal for Many Applications

• Residential homes
• Apartments, hotels, and MDUs
• Light commercial spaces
• Government & municipal buildings
• Universities & campuses
• Agricultural and farming facilities

Integrations

Built on proven Z-Wave technology, Shelly Wave Pro 3 works with all certified Z-Wave gateways. The device supports Unsecure, S0, S2 Unauthenticated, and S2 Authenticated security levels for maximum compatibility and protection.

User Interface & Controls

• Dedicated S-button for inclusion, exclusion, and factory reset
• LED indicators for operating mode and device status
• Short press, hold, and release actions for push-button inputs

Specifications

• Power Supply: 110–240 V AC, 50/60 Hz
• Max Switching: 16 A per channel / 48 A total
• Z-Wave Frequency: 919.8 MHz
• Range: Up to 40 m indoors (varies by environment)
• Processor: Z-Wave S800
• Operating Temp: -20°C to 40°C
• Mounting: DIN rail
• Dimensions: 96 × 53 × 59 mm

The Shelly Wave Pro 3 offers a robust, secure, and highly flexible automation solution for any professional smart home or building project.
