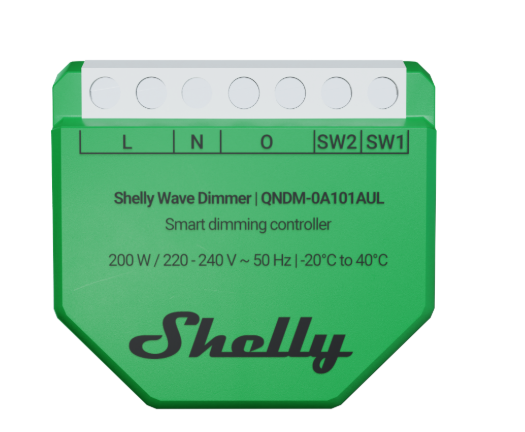

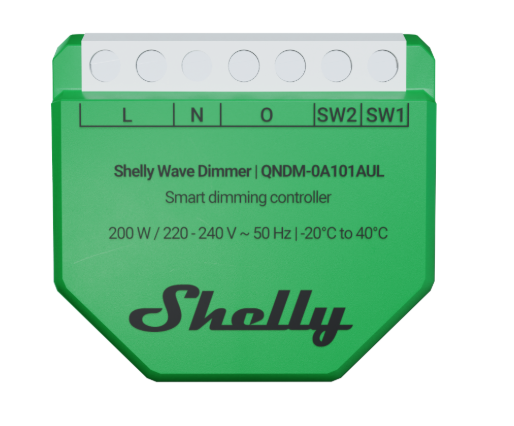

Shelly Wave Dimmer (Z-Wave Smart Dimming Controller)
The Shelly Wave Dimmer is a compact in-wall smart dimming controller that lets you control dimmable lights and drivers from your smartphone, tablet, PC, or any Z-Wave compatible home automation system. Supports trailing-edge dimming and can be installed with or without a neutral wire.
Key Features
- Flexible installation – works with or without a neutral wire (Shelly Bypass required for loads under 5 W).
- Smart dimming – smooth brightness control with single or dual-button operation.
- Customisable performance – set minimum/maximum brightness, fade rate, and transition durations.
- Energy monitoring – measures voltage (V), power (W), current (A) and energy (kWh).
- Z-Wave repeater – helps extend and strengthen your Z-Wave network.
- OTA firmware updates – keep device firmware current and secure.
- Built-in safety – overheat, overcurrent and overvoltage protection.
- Compact form factor – fits in standard in-wall electrical boxes.
Use Cases
- Residential homes — smart control of dimmable LED, halogen or incandescent lights.
- Apartments & hotels — scalable lighting control for MDUs.
- Light commercial — restaurants, retail, small offices.
- Government & education — energy efficient lighting with monitoring.
Integration & Compatibility
Built on the Z-Wave 800 platform and compatible with certified Z-Wave gateways. Supports S0, S2 Unauthenticated and S2 Authenticated security modes.
Tested with popular gateways including: Home Assistant (Z-Wave JS), Fibaro HC3, Homee, SmartThings and more.
Supported Load Types
- Dimmable LED lamps — up to 150 W
- Incandescent bulbs — up to 200 W
- Halogen lamps — up to 200 W
- Iron-core transformer with low-voltage lamps — up to 200 VA
- Dimmable electronic transformers — up to 200 W
Technical Specifications
| Power supply | 220–240 V AC, 50 Hz |
|---|---|
| Dimming type | Trailing edge |
| Power consumption | < 0.3 W |
| Max. output power | 200 W |
| Operating temperature | −20 °C to 40 °C |
| Range (indoor) | Up to 40 m (depends on local conditions) |
| Size (H×W×D) | 37 × 42 × 16 mm |
| Weight | 25 g |
| Mounting | In-wall box |
| Z-Wave frequency (ANZ) | 919.8 MHz |
| CPU | Z-Wave® S800 |
Safety Features
- Overheat protection
- Overcurrent protection
- Overvoltage protection

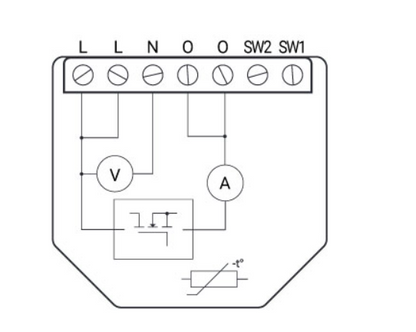

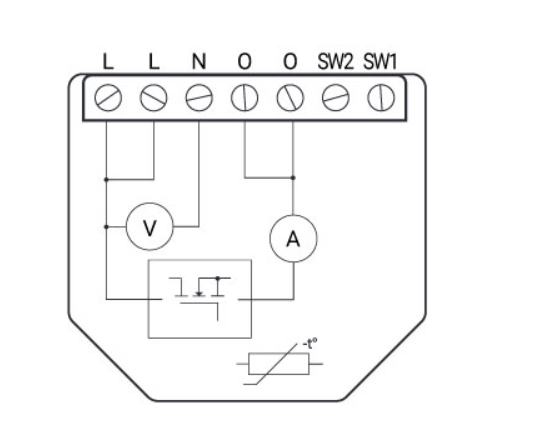

Device Interfaces & Wiring
Inputs: 2 × switch/push-button inputs (screw terminals).
Power inputs: N, 2 × L (screw terminals).
Outputs: 2 × load outputs.

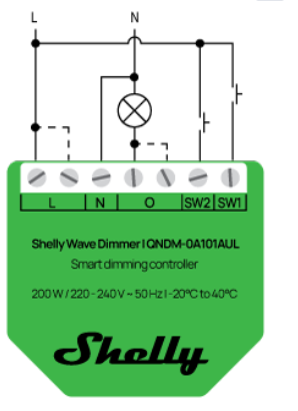

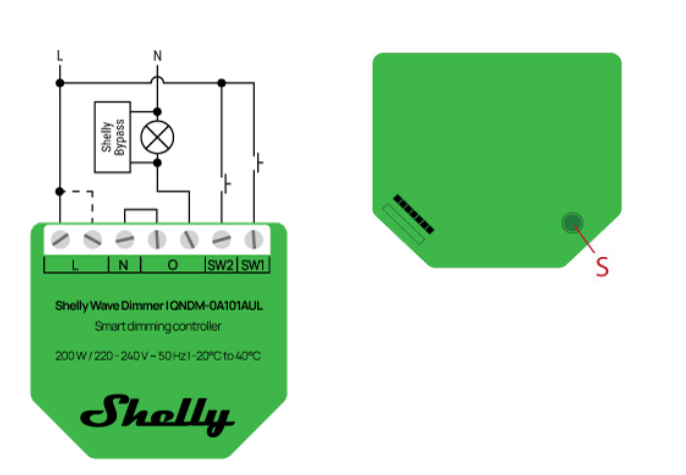

See manufacturer wiring diagrams for with neutral and without neutral + bypass wiring options.
What’s in the Box
- 1 × Shelly Wave Dimmer module
- 1 × User manual
