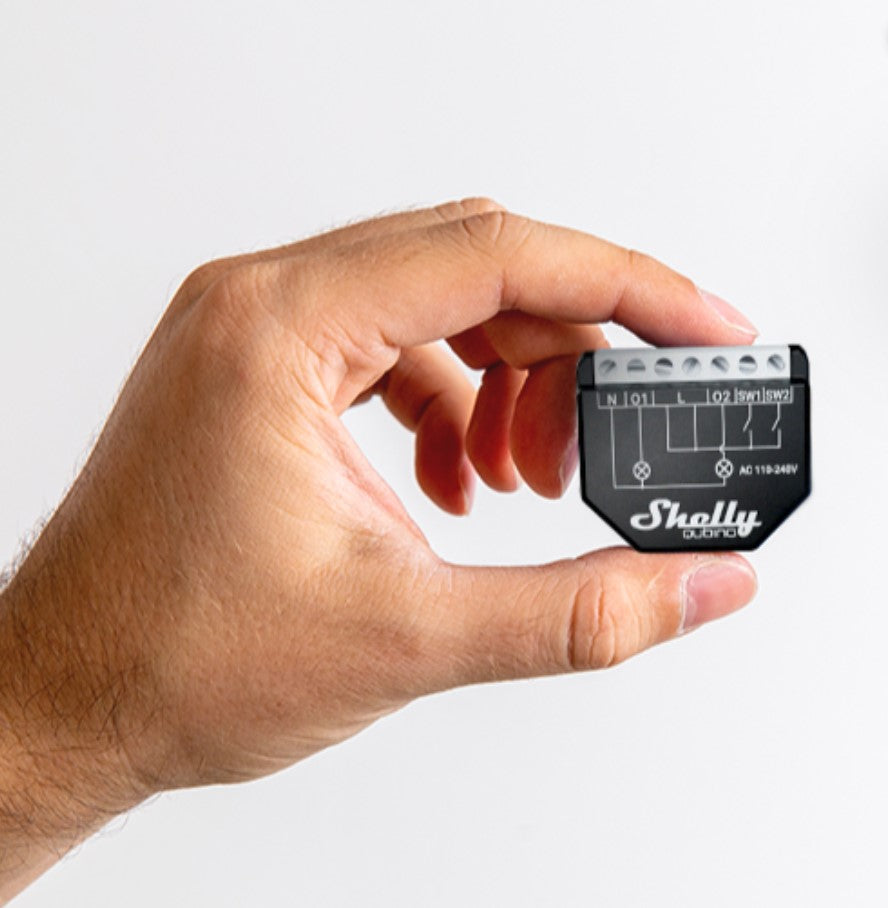

Introducing the Wave 2PM, a cutting-edge Z-Wave™ smart switch featuring two channels with a total current capacity of 16 A (with an 18 A peak) and advanced power metering capabilities. With the Wave 2PM, you can remotely control two independent electrical appliances, such as lights, while monitoring their power consumption separately and in total.
Key Features:
- Dual channels offering a total current capacity of 16 A (2x 10 A)
- Individual power metering on each channel and aggregated total
- Ultra-low power consumption of just 0.3 W
- Utilizes the Z-Wave 800 Series technology for enhanced reliability
- Supports automatic setup with SmartStart and Security 2 Authentication for top-tier security
- Enables over-the-air firmware updates for continuous optimization
- Compatible with most standard electrical boxes and switches for easy installation
- Works seamlessly with Z-Wave certified gateways and an extensive range of Z-Wave devices
Installation and Compatibility: The Wave 2PM is designed for simple retrofitting behind any switch or socket, instantly transforming it into a smart device. Once installed, integrate it into your Z-Wave network via a compatible gateway, enabling remote control of connected appliances from anywhere using your smartphone or tablet.
Functionalities:
- Operates seamlessly within your Z-Wave network, compatible with all certified Z-Wave gateways
- Establishes direct communication between devices for custom actions even without a hub present
- Provides precise power consumption monitoring on each channel separately and combined
- Supports a wide range of voltage levels, ensuring compatibility with various devices and appliances
- Allows for the creation of personalized schedules aligned with your daily routine or synchronized with sunrise/sunset for efficient lighting management
- Enables the creation of custom scenes by combining the Wave 2PM with other Z-Wave devices via a compatible gateway
Use Cases:
- Control two lights or electrical appliances remotely with ease, enhancing convenience and energy efficiency
- Monitor real-time energy usage for informed decision-making and cost savings
- Create customized schedules to automate lighting based on your daily routine or occupancy status, optimizing comfort and convenience
Experience the convenience, energy efficiency, and versatility of the Wave 2PM Z-Wave smart switch, designed to seamlessly integrate into your smart home ecosystem and elevate your living experience.
Specifications
| Power supply |
110-240 V AC / 24 V DC +/-10% |
| Power consumption |
< 0.3 W |
| Power measurement (W) |
Yes |
| Max switching voltage AC |
240 V |
| Max switching current AC |
10 A per channel, 16 A total, 18 A total peak |
| Max switching voltage DC |
30 V |
| Max switching current DC |
10 A |
| Overheating protection |
Yes |
| Overload protection |
Yes |
| Distance |
Up to 40 m indoors (131 ft.) (depends on local condition) |
| Z-Wave™ repeater: |
Yes |
| CPU |
Z-Wave™ S800 |
| Z-Wave™ frequency band: |
919.8 MHz |
| Maximum radio frequency power transmitted in frequency band(s) |
< 25 mW |
| Size (H x W x D) |
37x42x16 ±0.5 mm / 1.46x1.65x0.63 ±0.02 in |
| Mounting |
Wall console |
| Screw terminals max. torque |
0.4 Nm / 3.5 lbin |
| Conductor cross section |
0.5 to 1.5 mm² / 20 to 16 AWG |
| Conductor stripped length |
5 to 6 mm / 0.20 to 0.24 in |
| Shell material |
Plastic |
| Color |
Black |
| Ambient temperature |
-20°C to 40°C / -5°F to 105°F |
| Humidity |
30% to 70% RH |
| Max. altitude |
2000 m / 6562 ft. |
