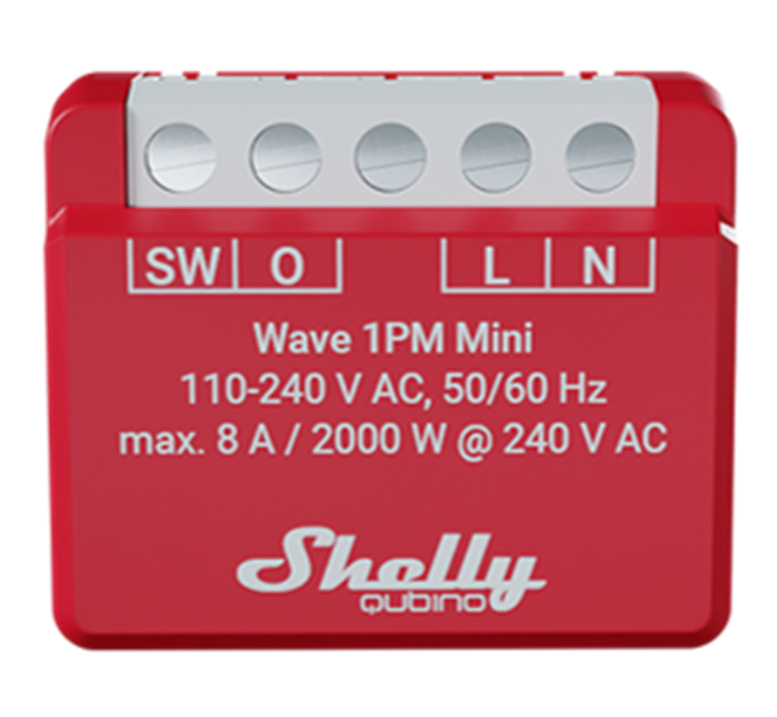

Shelly Wave 1PM Mini

Shelly Wave 1PM Mini – Compact Z-Wave Smart Switch with Power Monitoring

The Shelly Wave 1PM Mini is an ultra-compact smart switch designed for discreet in-wall installations. Despite its size, it delivers powerful functionality—providing ON/OFF control for one electrical appliance (up to 8A AC) while offering real-time power measurement. Compatible with switches and push-buttons, it’s an ideal solution for lights, fans, small appliances, and more.

Switch & Push-Button Control

The device supports multiple input configurations via the SW (SW1) terminal:

• Switch Mode (default): Each toggle changes the relay state (ON/OFF).
• Switch-Memory Mode: “Close” sets the relay ON; “Open” sets it OFF.
• Push-Button Mode: Single press toggles ON/OFF, double-click sends additional Z-Wave commands, and hold/release actions can be used for scene control via associated devices.

Main Applications

• Residential homes
• MDU projects (apartments, condos, hotels)
• Light commercial environments
• Government & municipal facilities
• Universities & education buildings
• Farming and agricultural automation

Smart Integrations

Shelly Qubino Wave products use the industry-leading Z-Wave S800 chipset and are compatible with all certified Z-Wave gateways. Devices undergo regular compatibility testing to ensure smooth integration across popular Z-Wave controllers.

Device Electrical Interfaces

• Inputs: 1x switch/push-button input (SW1), N & L power supply terminals
• Output: 1x relay output with power measurement
• Addon Interface: Not available

Connectivity

• Z-Wave S0, S2 Unauthenticated & S2 Authenticated security
• Acts as a Z-Wave repeater
• Z-Wave S800 chipset for extended range and improved reliability

Safety & Protection Features

• Overheat Protection: Automatically switches off the relay and sends a notification to the gateway.
• Over-Current Protection: Triggers if load exceeds 16A+10% for more than 5 seconds.
• Over-Voltage Protection: Engages when voltage exceeds 278 V AC for more than 5 seconds.
• Each protection event sends a Z-Wave Notification Report.
• Protections cannot be disabled for added safety.

User Interface – S Button

The built-in S button supports:

• Entering device setting mode
• Manual inclusion/exclusion from a Z-Wave network
• Factory reset

Supported Load Types

• Resistive loads (incandescent bulbs, heaters)
• Capacitive loads (electronics, motor start capacitors)
• Inductive loads with RC snubber (LED drivers, transformers, fans, AC units)

Specifications

• Power Supply: 110–240 V AC, 50/60 Hz
• Max Switching Current: 8A AC
• Max Switching Power: 2000 W
• Power Consumption: < 0.3 W
• Power Measurement: Yes
• Dimensions: 29 x 35 x 16 mm
• Mounting: Fits standard in-wall junction boxes
• Operating Temperature: -20°C to 40°C
• Humidity: 30%–70% RH
• Colour: Red
• Weight: 18 g
