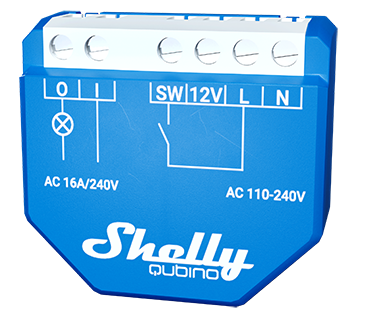

Shelly Wave 1 (Z-wave)

Shelly Wave 1- Z-wave (AU)—Smart Relay (Dry Contact, Z-Wave)

Take full control of your electrical devices with the Shelly Wave 1-Z-Wave (AU) Designed for versatility, this compact Z-Wave device allows you to control a wide range of applications, including lights, fans, heaters, locks, garage doors, and more.

⚡ Key Features

• Dry Contact (Potential-Free Output) – Supports multiple power supply loads up to 16A
• Wide Compatibility – Works with switches and push-buttons (default)
• Z-Wave Enabled – Compatible with all certified Z-Wave gateways
• Compact Design – Perfect for wall console installation
• Low Power Consumption – Less than 0.3W

🔄 Smart Switch Control

When connected to the SW (SW1) terminal:

• Single Toggle: Switches output ON/OFF
• Double Toggle: Sends command to associated Z-Wave devices (within 500ms)

🏠 Main Applications

• Residential homes
• Multi-dwelling units (apartments, hotels)
• Light commercial (offices, retail, restaurants)
• Government & educational facilities

🔗 Integrations

Built on the Z-Wave protocol, Shelly Qubino Wave works seamlessly with:

• Z-Wave certified hubs and gateways
• Smart home ecosystems supporting Z-Wave

Regular compatibility testing ensures reliable performance across multiple platforms.

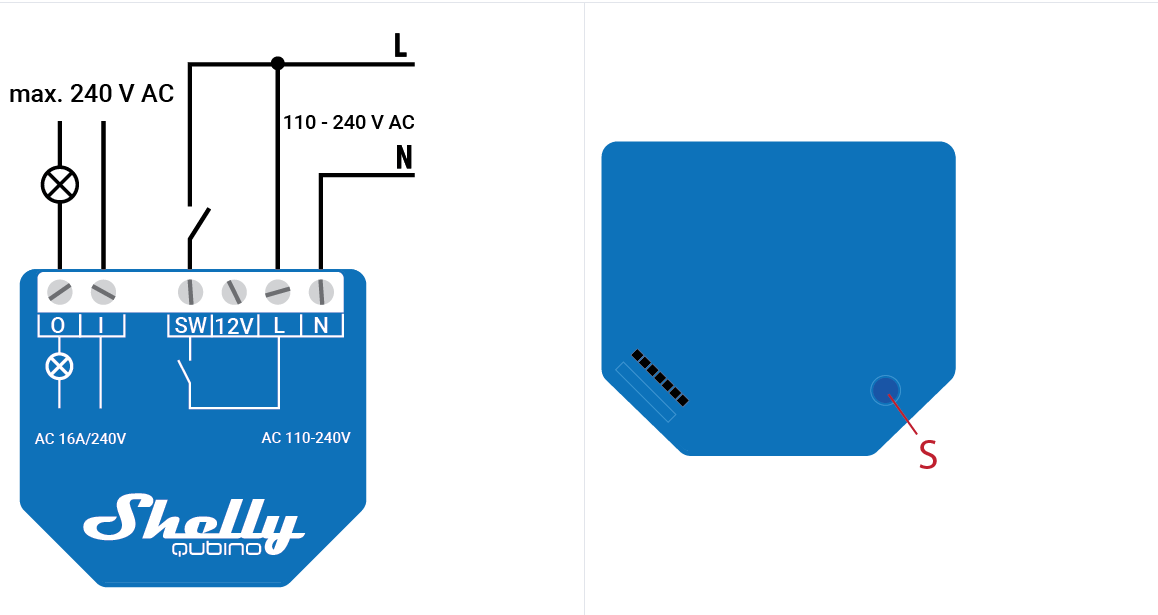

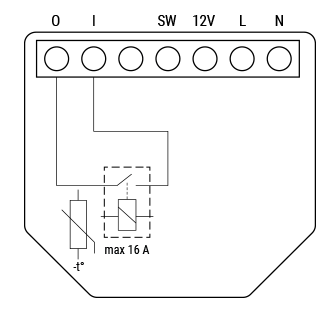

🛠 Device Interfaces

• 1x Switch/Button Input (SW)
• 1x Dry Contact Relay Output
• Power Supply Terminals: L & N

🛡 Safety Features

• Overheat Protection (always active)
• Automatic relay shutdown
• Real-time notification to gateway
• LED indication for overheating status

Note: Overheat protection cannot be disabled.

💡 Supported Load Types

• Resistive (heaters, incandescent bulbs)
• Capacitive (electronics, capacitor banks)
• Inductive (fans, transformers, air-conditioners – with RC snubber)

🎛 User Interface & Controls

• S Button Functions:
  • Add/Remove device from Z-Wave network
  • Factory reset
  • Manual ON/OFF control
• LED status indicators for operation modes

📡 Connectivity

• Z-Wave S800 Chip
• Supports S0, S2 Unauthenticated & Authenticated Security
• Frequency: 919.8 MHz
• Range: Up to 40m indoors (depending on conditions)
• Acts as a Z-Wave repeater

📏 Technical Specifications

📦 Ideal For

Lighting control, ceiling fans, heaters, garage doors, electric locks, irrigation systems, and more.

Upgrade your smart home with reliable Z-Wave control today.
