Shelly Wall Display XL- Silver

Shelly Wall Display XL – Smart Home Control Panel (10.1”)

The Shelly Wall Display XL is an advanced smart home control panel designed to act as a central hub for monitoring, controlling, and automating devices within a room or entire space. Featuring a large 10.1” touch-sensitive color display, integrated relay control, audio capabilities, and environmental sensing, it delivers powerful functionality in a sleek, wall-mounted form factor.

Main Features

• Large 10.1” touch-sensitive color display

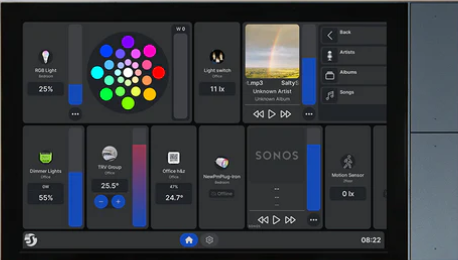

• Customizable home screen with intuitive navigation

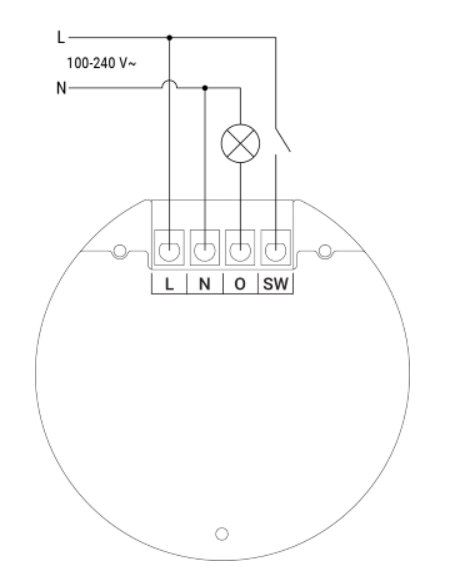

• Integrated relay for direct appliance control
• Four fully customizable physical control buttons
• On/Off screen control button
• Integrated light (LUX) sensor
• Built-in microphone and proximity sensor
• Integrated dual 2 W speakers
• Room-level power consumption monitoring via Shelly Smart Control
• Wi-Fi 6 dual-band and Bluetooth connectivity
• Overheating protection for enhanced safety

Key Use Cases

• Centralized Appliance Control: Control lights, fans, dehumidifiers, humidifiers, and other smart devices from a single interface.
• Power Monitoring: Track and analyze energy usage of devices within a room to improve efficiency.
• Home Automation: Create custom scenes, schedules, and automation routines.
• Climate & Comfort Management: Use temperature, humidity logic (via integrated ecosystem data) to maintain comfortable indoor conditions.
• Energy Efficiency: Identify energy-intensive devices and optimize usage.
• Remote Monitoring: Monitor and control devices remotely through internet access.
• Security Enhancement: Detect abnormal environmental changes that may indicate fire or flooding risks.
• Greenhouse & Specialized Environments: Optimize ventilation, watering, and environmental conditions.

Audio & Media Integration

Enhance your smart home experience with audio integration. The Shelly Wall Display XL supports connection to external Bluetooth or Sonos speakers, allowing you to stream music, system notifications, alarms, and alerts for improved sound coverage throughout your space.

Main Applications

• Residential homes
• MDUs (apartments, condominiums, hotels)
• Light commercial spaces (offices, retail, restaurants)
• Government and municipal buildings
• Universities and colleges

User Interface & Controls

• Touch-sensitive 10.1” 5-point capacitive display
• On/Off screen button with reboot options
• Four customizable physical buttons for:
  • Media control
  • Radio playback
  • Device, group, and scene control
  • Custom actions or default functions

Connectivity

• Wi-Fi 6 Dual Band (2.4 GHz & 5 GHz)
• Bluetooth 5.4

System & Performance

• Quad-core Rockchip RK3566 Cortex-A55 CPU (1.8 GHz)
• 2 GB RAM, 32 GB internal storage
• Android 11 operating system
• Supports MQTT, webhooks, and schedules

Technical Specifications

• Display Resolution: 1280 × 752 px
• Size: 155.8 × 272.5 × 38.3 mm
• Weight: 920 g
• Shell: Metal stamping, coated PC, glass
• Available Colors: Black with Grey frame / Black with Black frame
• Power Consumption: < 15 W
• Operating Temperature: -20 °C to 40 °C
• Humidity: 30% – 70% RH

What’s Included

• Shelly Wall Display XL device
• Quick start documentation

 Note: This product is designed for professional installation and advanced smart home environments.
