Shelly Wall Display X2i- Silver

Shelly Wall Display X2i – Smart Home Control Panel (6.9”)

The Shelly Wall Display X2i is a compact yet powerful smart home control panel designed for intuitive control, monitoring, and automation of devices within a room or living space. Featuring a 6.9” touch-sensitive color display and an interchangeable power base with integrated switching functionality, it delivers flexibility, performance, and a modern user experience.

Main Features

• Touch-sensitive 6.9” color display

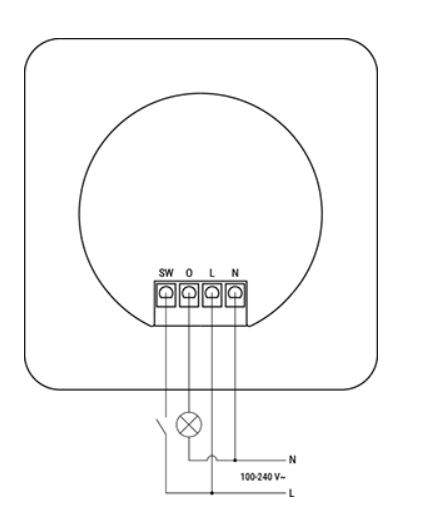

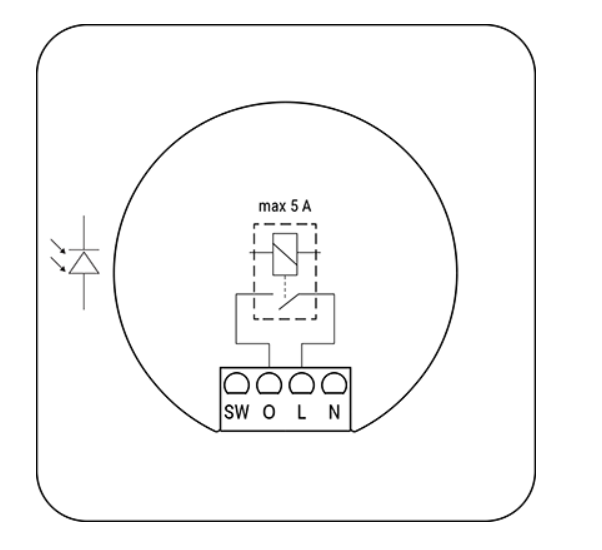

• Interchangeable power base with integrated relay for load control

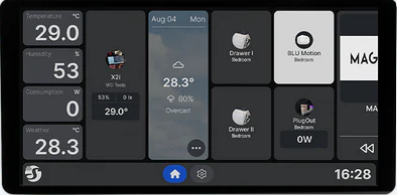

• Customizable home screen with intuitive navigation
• Support for both panoramic and portrait display orientation
• Integrated 0.8 W speaker
• Built-in light (LUX) sensor
• Room-level power consumption monitoring via Shelly Smart Control
• Wi-Fi 6 dual-band and Bluetooth connectivity

Key Use Cases

• Appliance Control: Control and automate lights, fans, and other electrical appliances from a single interface.
• Home Automation: Create custom scenes, schedules, and routines as part of your smart home system.
• Power Monitoring: Monitor energy usage of devices in a room to identify consumption patterns and improve efficiency.
• Climate & Comfort Control: Automate ventilation, humidifiers, and dehumidifiers based on environmental conditions.
• Remote Monitoring: Monitor and control connected devices remotely via internet access.
• Energy Efficiency: Identify high-consumption appliances and optimize usage.

Audio & Media Integration

Enhance your smart environment with audio integration. The Shelly Wall Display X2i can connect to external Bluetooth or Sonos speakers, allowing playback of music, notifications, alarms, and system alerts for improved sound coverage.

Environmental & Preventive Applications

• Prevent mold and mildew by monitoring humidity and activating ventilation when needed
• Maintain comfortable indoor conditions through smart automation
• Detect abnormal environmental changes for early issue prevention

Main Applications

• Residential homes
• MDUs (apartments, condominiums, hotels)
• Light commercial spaces (offices, retail, restaurants)
• Government and municipal buildings
• Universities and colleges

Smart Home Integrations

• Amazon Alexa
• Google Smart Home
• Samsung SmartThings

User Interface

• 6.9” 5-point capacitive touchscreen
• Fully customizable layout
• Supports panoramic and portrait display modes

Connectivity & Protocols

• Wi-Fi 6 Dual Band (2.4 GHz & 5 GHz)
• Bluetooth 5.0
• HTTP, RPC over HTTP, RPC over BLE
• MQTT support

System & Performance

• Rockchip RK3326-S Quad-core Cortex-A35 CPU (1.5 GHz)
• 2 GB RAM, 8 GB internal storage
• Android 11 operating system
• Supports schedules and webhooks

Technical Specifications

• Display Resolution: 1440 × 720 px
• Dimensions: 87 × 178 × 36 mm (with power base)
• Weight: 292 g (with power base)
• Power Consumption: < 5 W
• Operating Temperature: -20 °C to 40 °C
• Humidity: 30% – 70% RH
• Shell Materials: Plastic, aluminum, glass
• Available Colors: Black, Silver

What’s Included

• Shelly Wall Display X2i
• 1-Output Power Base
• Quick start documentation

Note: Designed for advanced smart home environments and professional installation.
