Shelly Wall Display X1i-Black
Shelly Wall Display X1i-Black
Couldn't load pickup availability
- We use Australia Post Carbon Neutral Shipping: 2-5 Days $9.99, 1-3 Days $15 or StarTrack Premium $20
- Order before Midday and we Dispatch the same day
- Found a Cheaper Price we will Match it

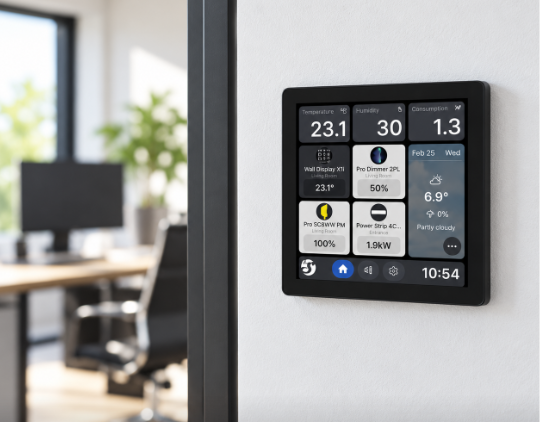

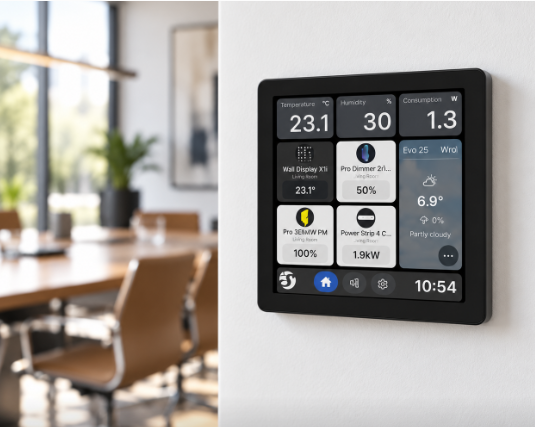

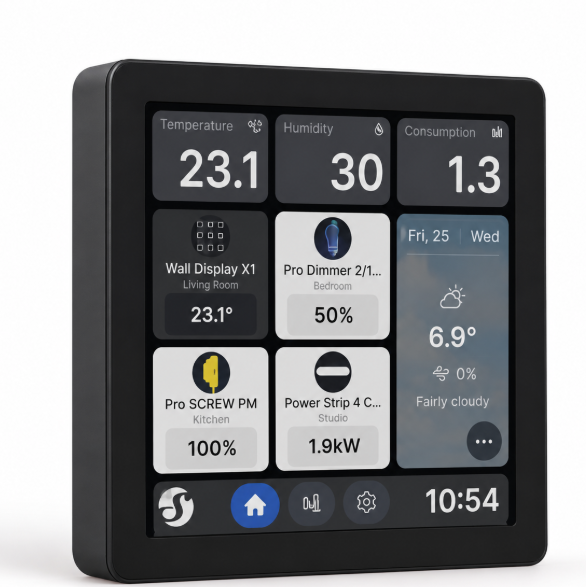

Shelly Wall Display X1i – Smart Home Control at Your Fingertips
Bring convenient control to your wall with the Shelly Wall Display X1i. Its bright 4-inch colour touchscreen gives you an easy way to manage connected devices, access scenes and view room energy usage through your Shelly Smart Control account.
A customisable home screen keeps your most-used controls within reach, while the included interchangeable power base provides a relay output for switching one connected load circuit.
Key Features

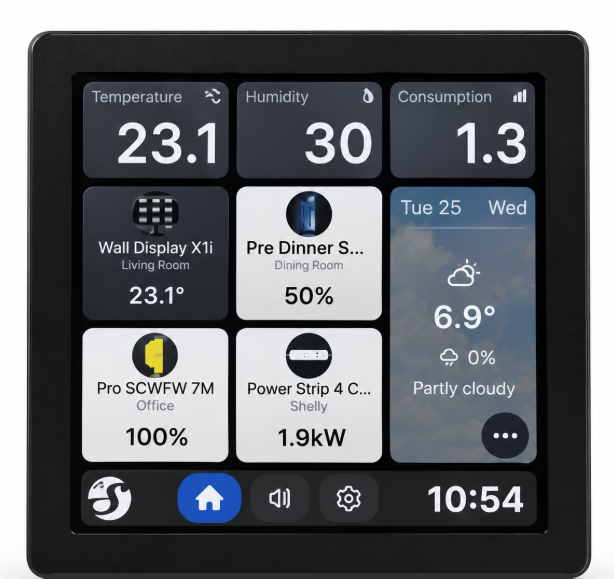

- 4-inch touchscreen: A 720 × 720 resolution display with responsive 5-point capacitive touch control.
- Customisable home screen: Arrange controls to suit your room and daily routine.

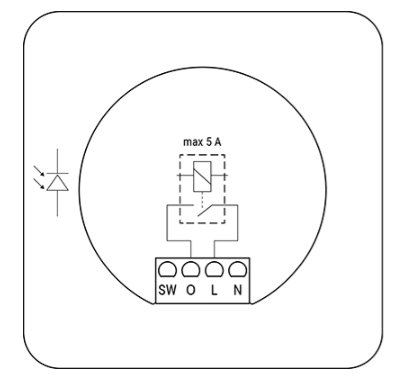

- Integrated switching: The included 1-output power base switches a connected circuit, with a maximum switching current of 5 A.
- Interchangeable power base: Supports the Shelly 2-Output Power Base for Wall Display (i-series) for installations requiring two switched circuits.
- Room energy overview: View power consumption from devices in the room through your Shelly Smart Control account.
- Built-in sensors: Includes light and proximity sensors, plus a microphone.
- Audio features: An integrated 1 W speaker, with support for Bluetooth and Sonos speaker integration.
- Wireless connectivity: Dual-band Wi-Fi 6 and Bluetooth 5.0.
- Automation options: Supports schedules, webhooks and MQTT.
Control Your Home from One Convenient Place
Use the X1i to manage lighting and connected appliances, run scenes and adjust your home’s settings. Remote access through Shelly Smart Control lets you monitor and control connected devices when an internet connection is available.
For temperature-based or humidity-based climate control, pair a compatible external temperature and humidity sensor. The X1i does not have a built-in temperature and humidity sensor.
Smart Home Compatibility
Supports Amazon Alexa, Google Smart Home and Samsung SmartThings integrations. HTTP, RPC over HTTP, RPC over BLE and MQTT provide additional integration options. On-device scripting is not supported.
Technical Specifications
| Display | 4-inch colour touchscreen, 720 × 720 pixels |
|---|---|
| Mains power supply | 100–240 V AC, 50/60 Hz |
| Power consumption | Less than 5 W |
| USB-C power input | 5 V DC, 1 A |
| Included power base | 1 switched output |
| Maximum switching voltage | 240 V AC |
| Maximum switching current | 5 A |
| Connectivity | Dual-band Wi-Fi 6; Bluetooth 5.0 |
| Speaker | 1 W |
| Dimensions with power base | 86.5 × 86.5 × 35.7 mm |
| Dimensions without power base | 86.5 × 86.5 × 11 mm |
| Weight with power base | 163 g |
| Mounting | Electrical wall box |
| Operating temperature | -20°C to 40°C |
| Operating humidity | 30–70% RH |
| Schedules | 20 |
| Webhooks | 20, with up to 2 URLs per hook |
Installation Notes
A neutral wire is required for mains installation. Have a licensed electrician confirm wall-box fit, wiring and load suitability before installation. Check the load-specific requirements in the manufacturer’s installation guide; the 5 A rating should not be treated as a universal rating for every load type.
The 2-output power base is an optional upgrade and is not the power base included with the X1i.
