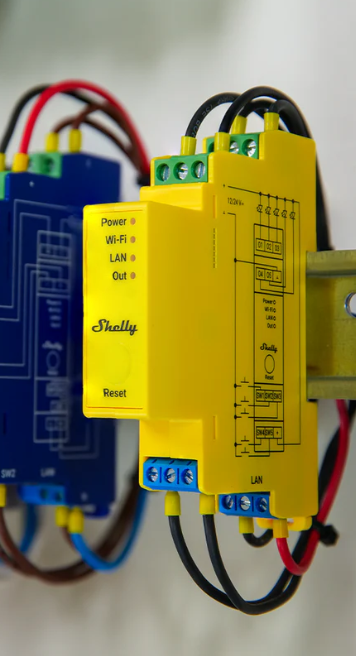

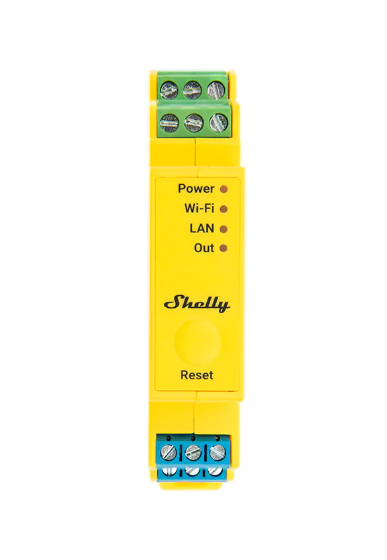

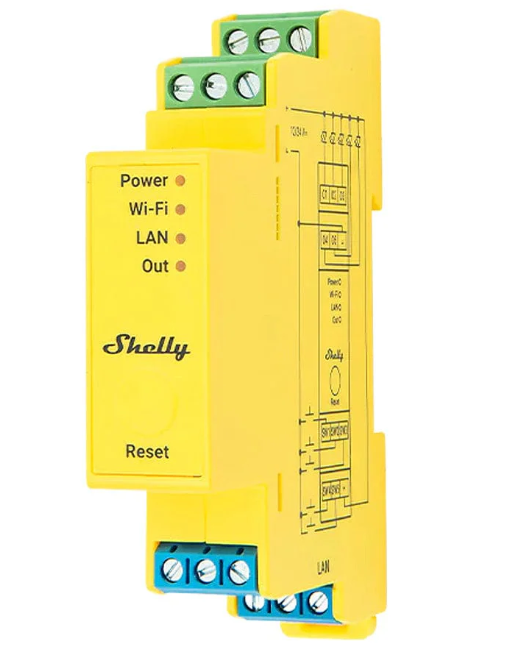

Shelly Pro RGBWW PM – DIN Rail RGB & CCT Smart Light Controller with Power Monitoring
The Shelly Pro RGBWW PM is a professional-grade DIN rail mounted smart lighting controller designed for LED strips and advanced lighting automation. With five independent channels, flexible lighting profiles, and built-in power monitoring, it offers powerful control for residential, commercial, and automation installations.
Powered by Wi-Fi, Ethernet, and Bluetooth connectivity, the device can operate locally without a hub or integrate seamlessly with popular automation platforms such as Home Assistant, Alexa, Google Home, and SmartThings.
Key Features
- DIN Rail Mountable – Designed for professional installations inside electrical cabinets.
- 5 Channel LED Controller – Control RGB, CCT, or up to five independent lighting channels.
- Power Monitoring – Track voltage, current, and energy consumption in real time.
- Multiple Lighting Profiles – RGB + CCT, Dual CCT, RGB + 2 Lights, or 5 Independent Lights.
- Wi-Fi + Ethernet + Bluetooth – Flexible connectivity options.
- BLE Gateway – Bridges Bluetooth devices to your Wi-Fi network.
- Wi-Fi Range Extender – Improves wireless network coverage.
- Advanced Automation – Supports scripting, schedules, and webhooks.
- No Hub Required – Works locally or with cloud services.
- High-Frequency PWM Mode – Up to 22 kHz to reduce driver noise.
Lighting Profiles
- RGB + CCT (Default) – Control RGB colors and tunable white LEDs.
- CCT x2 – Control two independent tunable white LED strips.
- RGB + Lights x2 – RGB lighting plus two separate lights.
- Lights x5 – Control five independent LED strips or lighting groups.
Each output channel can be independently controlled for maximum flexibility when using the Lights x5 profile.
Advanced Smart Lighting Features
- Weekly and advanced yearly scheduling
- Auto ON/OFF timers
- Brightness and color transitions
- Night mode with adjustable brightness
- Button presets for quick color or brightness changes
- Minimum and maximum brightness control
- Adjustable color temperature range
- Local automation actions within your network
- Activity log and persistent data storage (KVS)
Connectivity
- Wi-Fi 802.11 b/g/n
- Ethernet (RJ45)
- Bluetooth 4.2
- BLE Gateway support
Integrations
The Shelly Pro RGBWW PM integrates with major smart home platforms including:
- Home Assistant
- Amazon Alexa
- Google Home
- Samsung SmartThings
- MQTT based systems
- 3rd party automation platforms
Safety Protections
- Overheating protection
- Overvoltage protection
- Overcurrent protection
- Overpower protection
Technical Specifications
| Model | Shelly Pro RGBWW PM (SPDC-0D5PE16EU) |
| Power Supply | 12 – 24 VDC |
| Power Consumption | < 1.5 W |

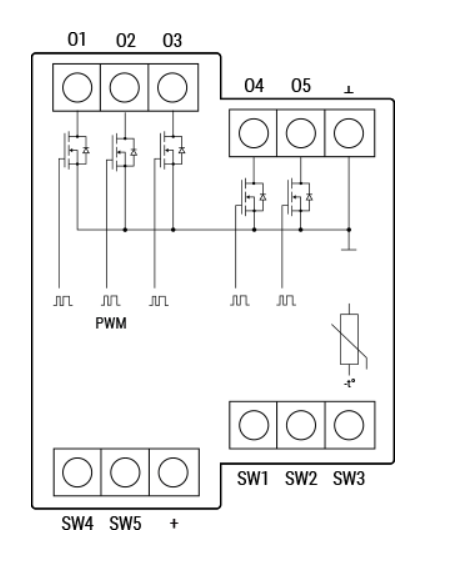

| Outputs | 5 outputs (O1 – O5) |
| Inputs | 5 switch/button inputs |
| Max Switching Voltage | 24 VDC |
| Max Control Current | 16 A total / 6 A per channel |
| Color Temperature Range | 2700K – 6500K (configurable 1000K – 10000K) |
| Size | 94 × 19 × 69 mm |
| Weight | 61 g |
| Operating Temperature | -20°C to 40°C |
Typical Applications
- Smart LED strip control
- Home automation lighting
- Retail and commercial lighting displays
- Night lighting and wake-up routines
- Decorative RGB lighting installations
- Smart presence simulation
- Art installations and entertainment lighting
Perfect For
- Residential smart homes
- Apartments and hotels
- Commercial lighting control
- Universities and public buildings
- Agriculture lighting systems
Shelly Pro RGBWW PM delivers professional smart lighting control with powerful automation, flexible profiles, and precise energy monitoring — all in a compact DIN-rail mounted design.
