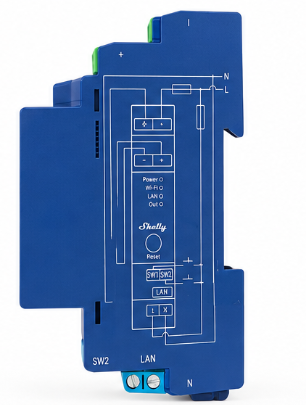

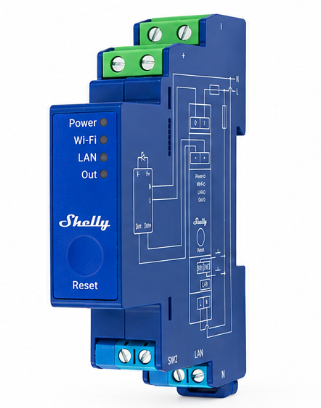

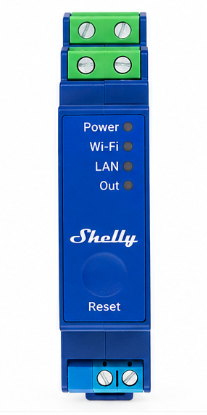

Shelly Pro Dimmer 0/1-10V PM

Shelly Pro Dimmer 0/1-10V PM – Smart DIN Rail Dimming Controller with Power Monitoring

Take complete control of your dimmable lighting with the Shelly Pro Dimmer 0/1-10V PM, a professional DIN rail-mounted smart dimming controller designed for residential, commercial and advanced smart building automation.

Featuring 0-10V and 1-10V current-sourcing dimming control, built-in power monitoring, Wi-Fi, Bluetooth and Ethernet connectivity, this versatile controller makes it easy to automate compatible LED drivers and other supported control equipment.

Control brightness from your smartphone, tablet, computer or home automation system. Create intelligent lighting schedules, monitor power consumption and integrate with platforms including Home Assistant, Amazon Alexa, Google Home, Samsung SmartThings and KNXnet/IP.

Whether you're upgrading an existing lighting installation or building a fully automated property, the Shelly Pro Dimmer 0/1-10V PM delivers flexible control without requiring a dedicated smart home hub.

Key Features & Benefits

• 0-10V and 1-10V Dimming: Control compatible current-sourcing dimming drivers with adjustable brightness and smooth transitions.
• Built-in Power Monitoring: Measure electrical consumption, power factor and energy usage of connected loads.

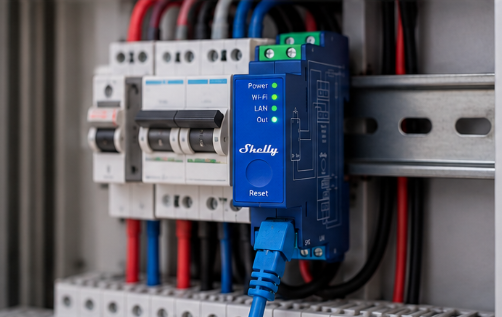

• DIN Rail Installation: Compact professional design for installation in compatible electrical distribution boards.
• Wi-Fi Connectivity: Connect to your local Wi-Fi network for smart control and automation.
• Ethernet Connection: RJ45 LAN connectivity for reliable wired networking.
• Bluetooth Support: Bluetooth connectivity with BLE gateway functionality.
• Wi-Fi Range Extender: Extend Wi-Fi network coverage through supported device functionality.
• Smart Schedules: Automate lighting based on time, daily routines, sunrise or sunset.
• Night Mode: Automatically reduce lighting brightness during selected nighttime periods.
• Existing Switch Compatibility: Use conventional switches or push buttons for manual control.
• Advanced Automation: Supports scripting, webhooks, MQTT and local actions.
• Third-Party Integrations: Compatible with supported smart home platforms and KNXnet/IP systems.
• Electrical Protection: Built-in overheating, overvoltage, overcurrent and overpower protection features.
• No Dedicated Hub Required: Operate locally or through supported cloud services.

Professional 0-10V & 1-10V Lighting Control

The Shelly Pro Dimmer 0/1-10V PM provides a flexible way to control compatible dimmable LED drivers and other equipment that accepts 0-10V or 1-10V control signals.

Adjust lighting brightness to suit your environment, create smooth dimming transitions and configure minimum and maximum brightness settings for more precise control.

Unlike conventional standalone dimmers, Shelly combines smart automation, network connectivity and electrical monitoring in one compact DIN rail device.

Advanced Dimming Functions

• Adjustable brightness control
• Customisable brightness transition duration
• Minimum and maximum brightness configuration
• Single-button dimming control
• Dual-button dimming control
• Configurable button fade rate
• Double-press brightness presets
• Night Mode with reduced brightness
• Automatic on/off timers
• Scheduled brightness adjustments

Smart Automation Applications

1. Smart Home Lighting Automation

Create a more comfortable home by automating compatible LED lighting. Set different brightness levels for everyday activities, relaxing evenings or nighttime use.

2. Commercial Office Lighting

Improve office lighting management with scheduled brightness levels, energy monitoring and centralised control. Suitable for compatible lighting installations in meeting rooms, workspaces and common areas.

3. Sunrise & Sunset Lighting Schedules

Automatically adjust lighting at sunrise or sunset using supported scheduling functions. Reduce brightness in the evening or increase illumination at selected times.

4. Energy Monitoring & Management

Monitor the power and energy consumption of connected lighting circuits. Use consumption information to understand electricity usage and support energy-efficient automation decisions.

5. Retrofit Existing Lighting Systems

Upgrade compatible conventional dimming systems with smart functionality while continuing to use existing wall switches or push buttons where the electrical installation permits.

6. Home Assistant & Advanced Automation

Integrate your dimming controller with supported third-party automation platforms, including Home Assistant. Create scenes, automation routines and lighting responses based on schedules or other system conditions.

7. Building Automation & KNX Integration

With KNXnet/IP support, Ethernet connectivity and advanced control functions, the Shelly Pro Dimmer is suited to compatible professional building automation installations.

Connectivity & Smart Home Integrations

• Wi-Fi: 2.4GHz IEEE 802.11 b/g/n
• Ethernet: Wired LAN connection
• Bluetooth: Bluetooth 4.2
• Amazon Alexa: Supported integration capabilities
• Google Home: Supported integration capabilities
• Samsung SmartThings: Supported integration capabilities
• Home Assistant: Third-party home automation integration
• KNX: KNXnet/IP communication
• MQTT: Supported
• Webhooks: Event-based actions
• Scripting: Custom automation scenarios
• Shelly Smart Control: Remote control and device configuration

Available features depend on firmware, connected equipment and the integration platform being used.

Advanced Automation Features

Basic & Advanced Scheduling

Configure weekly routines or advanced schedules with detailed timing adjustments. Adjust brightness, dimming transitions and supported output settings automatically.

Local Actions & Webhooks

Create automation scenarios that communicate with supported devices or services using local actions and HTTP webhooks.

Custom Scripting

Build advanced automation logic using Shelly scripting capabilities for more sophisticated smart lighting and building control projects.

Bluetooth Gateway

Use supported BLE gateway functionality to facilitate communication between compatible Bluetooth and Wi-Fi-enabled devices.

Event History & Device Settings

Access supported activity logs, device configuration options and persistent key-value storage functionality.

Electrical Interfaces

• 2 × switch/button inputs (SW1 and SW2)
• 1 × live supply terminal (L)
• 1 × neutral supply terminal (N)
• 1 × relay input terminal (I)
• 1 × relay output terminal (O)
• 2 × 0-10V control terminals (+ and -)
• 1 × Ethernet RJ45 connection

Technical Specifications

Frequently Asked Questions

What is the Shelly Pro Dimmer 0/1-10V PM used for?

It is a smart DIN rail controller for compatible 0-10V and 1-10V dimming drivers. It allows brightness adjustment, automation, remote control and power monitoring.

Does the Shelly Pro Dimmer require a smart home hub?

No. The device can operate using its own supported network connectivity and control interfaces. A separate hub is not required for basic operation.

Can I use this dimmer with Home Assistant?

Yes. The device is suitable for integration with supported third-party home automation platforms, including Home Assistant, subject to the available integration features.

Does it support Alexa and Google Home?

Yes. The device supports integrations with Amazon Alexa and Google Home through compatible services.

Does it measure electricity consumption?

Yes. The built-in power monitoring functionality measures electrical parameters including active power, apparent power, energy consumption and power factor.

Can I use my existing wall switches?

Yes. The device includes two switch/button inputs and supports multiple input configurations for manual lighting control.

Can it control conventional non-dimmable LED lights?

The dimming signal is designed for compatible 0-10V or 1-10V control equipment. Conventional non-dimmable LED lights cannot be dimmed through this interface unless they use a compatible external driver.

Does it support 1-10V drivers?

Yes. The device provides current-sourcing control and supports compatible 0-10V and 1-10V drivers.

Can it control equipment other than lighting?

Yes. The control signal may be used with compatible 0-10V or 1-10V equipment, including certain motors, valves and control systems, provided their electrical requirements are suitable.

Does the Shelly Pro Dimmer require a neutral wire?

Yes. The device requires both live and neutral power connections.

Who should install the Shelly Pro Dimmer?

Installation involving fixed electrical wiring must be performed by an appropriately licensed electrician in accordance with applicable Australian electrical requirements.

Upgrade Your Lighting with Shelly Pro

Bring professional-grade lighting automation to your property with the Shelly Pro Dimmer 0/1-10V PM. Combine precise brightness control, electrical monitoring, intelligent schedules and flexible connectivity in a compact DIN rail solution.

Shop Shelly Pro Dimmer 0/1-10V PM at Oz Smart Things and take your smart lighting installation to the next level.

Important: Requires compatible 0-10V or 1-10V control equipment. This is a mains-powered professional installation product. Verify driver compatibility, wiring requirements and applicable Australian electrical compliance before installation.
