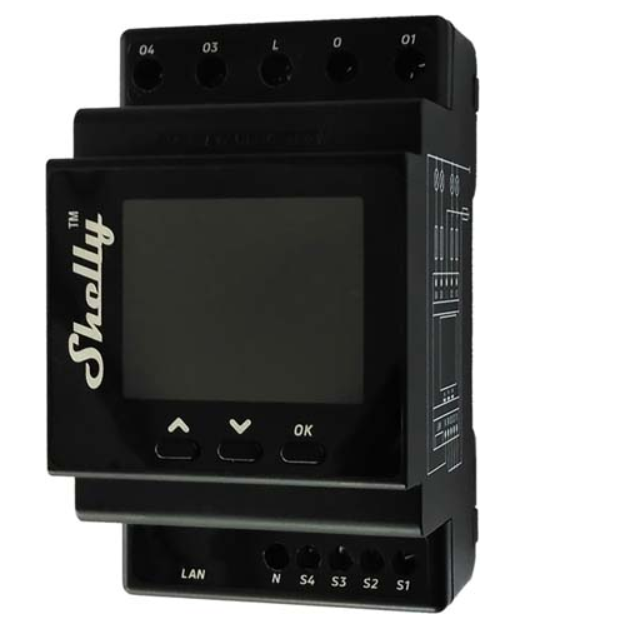

Shelly Pro 4PM V2
Shelly Pro 4PM V2
Regular price
$133.51 AUD
Regular price
$168.99 AUD
Sale price
$133.51 AUD
Unit price
per
Tax included.
Shipping calculated at checkout.
Couldn't load pickup availability
- We use Australia Post Carbon Neutral Shipping: 2-5 Days $9.99, 1-3 Days $15 or StarTrack Premium $20
- Order before Midday and we Dispatch the same day
- Found a Cheaper Price we will Match it

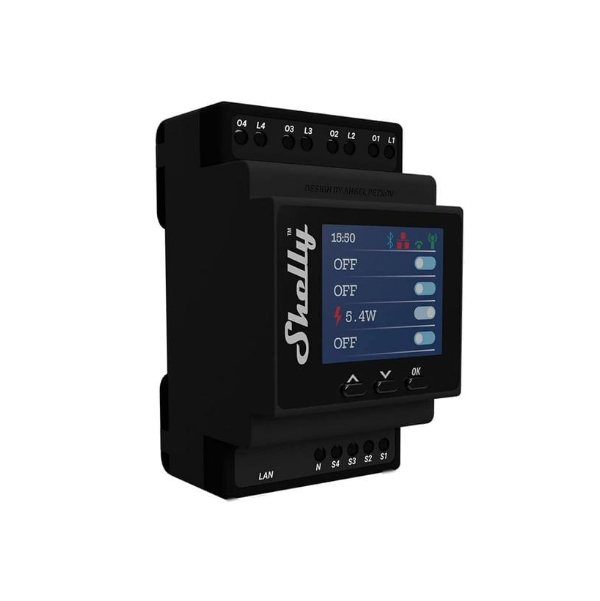

Shelly Pro 4PM – Professional 4-Channel Smart Switch
The Shelly Pro 4PM is a DIN rail–mountable four-channel smart switch with precise power measurement capabilities. Designed with enhanced Gen2 firmware, LAN connectivity, and a vivid color display, it provides integrators with flexible solutions for both residential and light commercial applications.
It can operate locally via Wi-Fi or be integrated with cloud-based automation services. The device can be accessed, controlled, and monitored remotely from anywhere using the Shelly Smart Control app or web interface.
Key Features
- Four independent relay channels with real-time power monitoring
- LAN, Wi-Fi, and Bluetooth connectivity
- Built-in color LCD display for easy monitoring and setup
- Local or remote operation and configuration
- Overheating, overvoltage, overcurrent, and overpower protection
- Built-in web interface and scripting support
Ideal For
- Residential homes
- MDUs – apartments, condominiums, and hotels
- Light commercial buildings such as offices, retail, and restaurants
- Government and municipal facilities
- Universities and colleges
Smart Integrations
- Google Home
- Amazon Alexa
- Samsung SmartThings
Connectivity Options
- Wi-Fi (802.11 b/g/n)
- Ethernet (LAN)
- Bluetooth 4.2
Safety & Protection
- Overheating protection
- Overvoltage protection
- Overcurrent protection
- Overpower protection
Supported Load Types
- Resistive (incandescent bulbs, heaters)
- Capacitive (electronic devices, motor start capacitors)
- Inductive with RC Snubber (LED drivers, fans, transformers, air-conditioners)
Specifications
| Physical | |
|---|---|
| Size (HxWxD) | 96x53x59 ±0.02 mm / 3.78x2.01x2.32 ±0.02 in |
| Mounting | DIN rail |
| Material | Plastic, black |
| Environmental | |
| Operating Temperature | -20°C to 40°C (-5°F to 105°F) |
| Humidity | 30% – 70% RH |
| Max Altitude | 2000 m / 6562 ft |
| Electrical | |
| Power Supply (AC) | 110–240 V |
| Power Consumption | < 4 W |
| Max Switching Voltage | 240 V AC |
| Max Switching Current | 16 A per channel (40 A total) |
| Wireless | |
| Wi-Fi Range | Up to 30 m indoors / 50 m outdoors |
| Bluetooth Range | Up to 10 m indoors / 30 m outdoors |
| Processor | |
| CPU | ESP32-D0WDQ6 |
| Flash Memory | 8 MB |
| Firmware Capabilities | |
| Schedules | Up to 20 |
| Webhooks | 20 with up to 5 URLs each |
| Scripting | Yes |
| MQTT | Yes |
Note: Always power off the device before connecting or disconnecting the LAN cable. Performance and range depend on installation environment and network conditions.
