Shelly Pro 2PM

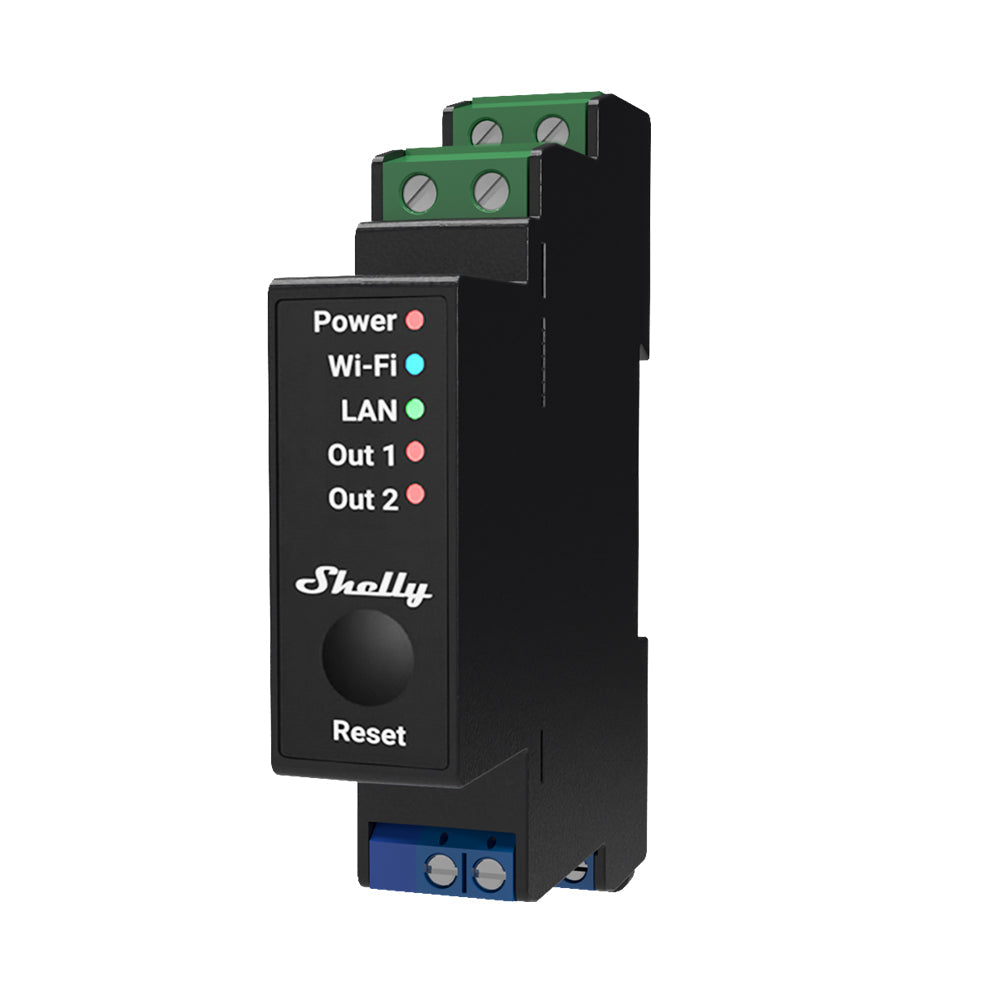

Shelly Pro 2PM – Smart Dual Channel DIN Rail Switch with Power Monitoring

Shelly Pro 2PM is a professional-grade, DIN rail–mountable 2-channel smart switch with precise power measurement capabilities. Designed for reliability and versatility, it combines Wi-Fi, LAN, and Bluetooth connectivity to deliver the ultimate smart automation control for homes, businesses, and commercial spaces.

Key Features

• 2 independent channels with power measurement
• LAN, Wi-Fi, and Bluetooth connectivity
• Overheating, overvoltage, overcurrent & overpower protection
• Embedded web interface for local control and monitoring
• Supports MQTT, Webhooks, and advanced scripting
• Remote access via Shelly Cloud or local control with no cloud dependency

Applications

• Residential homes and apartments
• Multi-Dwelling Units (MDUs): condos, hotels, serviced apartments
• Light commercial buildings, offices, and restaurants
• Government and municipal facilities
• Educational institutions and campuses

Smart Home Integrations

• Google Home
• Amazon Alexa
• Samsung SmartThings

Connectivity

• Wi-Fi: 802.11 b/g/n (2.4 GHz)
• Ethernet: RJ45 port for LAN
• Bluetooth 4.2 for easy pairing and setup

Safety & Reliability

• Automatic protection against overheating and electrical surges
• Secure LAN connection for professional installations
• High-quality plastic shell and DIN-rail mounting

Technical Specifications

• Power Supply: 110–240V AC
• Max Load: 16A per channel, 25A total
• Power Consumption: <3W
• Dimensions (HxWxD): 94 x 19 x 69 mm
• Operating Temperature: -20°C to 40°C
• Humidity: 30–70% RH
• Mounting: DIN rail

Wireless Range

• Wi-Fi: Up to 30m indoors / 50m outdoors
• Bluetooth: Up to 10m indoors / 30m outdoors

Advanced Capabilities

• 20 customizable schedules and up to 20 webhook actions
• Support for custom scripting and automation rules
• Real-time monitoring of voltage, current, and energy usage

Local & Cloud Control

The Shelly Pro 2PM can operate fully offline within a local network or connect to the Shelly Cloud for remote access. Whether you prefer full automation control through a local LAN or via cloud services, Shelly adapts to your needs.

What’s in the Box

• Shelly Pro 2PM Device
• Installation Guide

⚠️ Important Notes

Always plug or unplug the LAN cable only when the device is powered off. Use non-metallic connectors when handling the LAN cable.

Shelly Pro 2PM is ideal for electricians, integrators, and homeowners seeking precise control, professional safety, and smart automation — all in one compact device.
