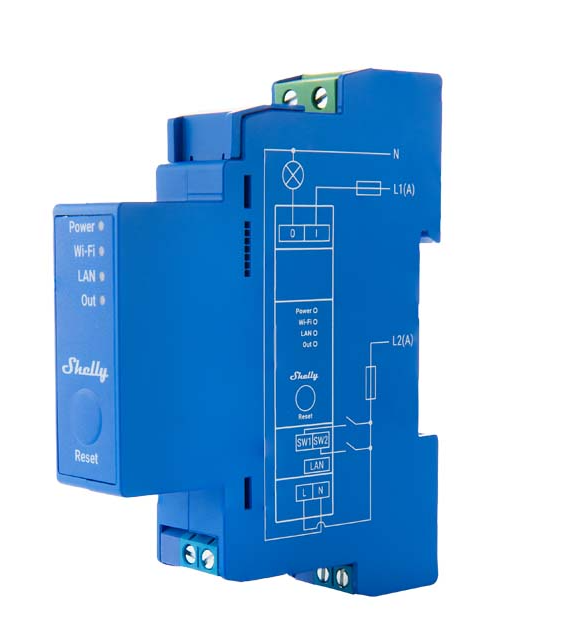

Shelly Pro 1

Shelly Pro 1

$67.15 AUD
$84.99 AUD $67.15 AUD
Sale Sold out
Tax included. Shipping calculated at checkout.
  • We use Australia Post Carbon Neutral Shipping: 2-5 Days $9.99, 1-3 Days $15 or StarTrack Premium $20
  • Order before Midday and we Dispatch the same day
  • Found a Cheaper Price we will Match it

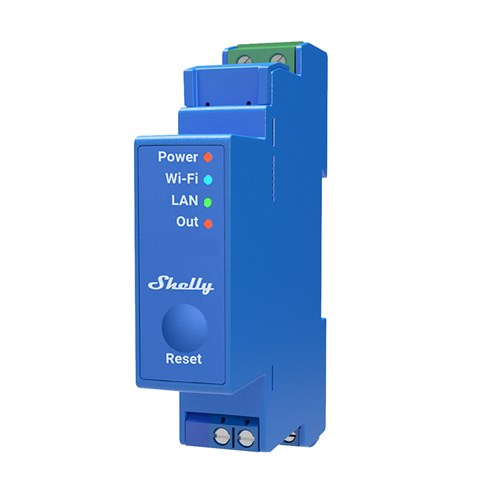

Shelly Pro 1 | DIN Rail Smart Switch with LAN, Wi-Fi & Bluetooth Connectivity

Shelly Pro 1 is a DIN rail mountable smart switch with potential-free contacts. Enhanced with Gen2 firmware flexibility and LAN connectivity, it offers professional integrators a powerful and versatile solution for modern home and commercial automation systems.

It can operate standalone in a local Wi-Fi network or be integrated through cloud-based automation platforms. Shelly Pro 1 can be accessed, controlled, and monitored remotely from anywhere with internet connectivity. The device features an embedded Web Interface for monitoring, control, and configuration.

Main Applications

  • Residential (houses, apartments, condominiums)
  • MDU (Multi-Dwelling Units such as hotels)
  • Light commercial (small offices, restaurants, gas stations, retail)
  • Government and municipal buildings
  • Universities and colleges

Integrations

  • Google Home
  • Amazon Alexa
  • Samsung SmartThings

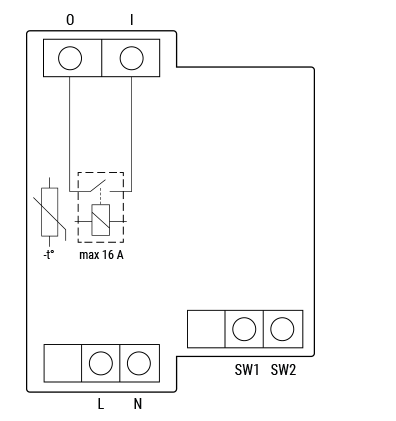

Device Electrical Interfaces

Inputs

  • 2 switch/button inputs: SW1 and SW2
  • 2 power supply inputs: N and L
  • 1 relay input: I

Outputs

  • 1 relay output: O

Ethernet Port

1 RJ45 connector

⚠ CAUTION: Plug or unplug the LAN cable only when the device is powered off. The LAN connector must not have metallic parts exposed to the user.

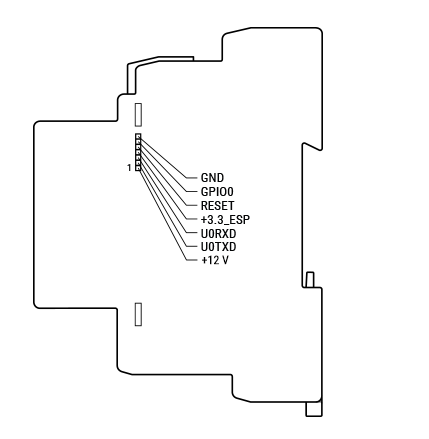

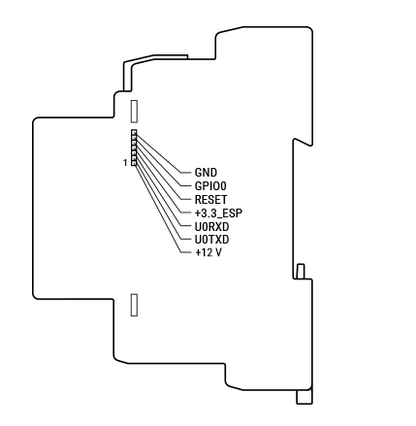

Add-on Interface

Shelly proprietary serial interface

⚠ CAUTION: High voltage on the add-on interface when the device is powered!

Connectivity

  • Wi-Fi
  • Ethernet (LAN)
  • Bluetooth

Safety Features

  • Overheating protection

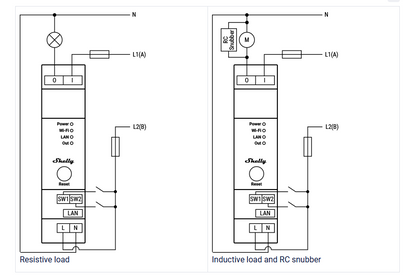

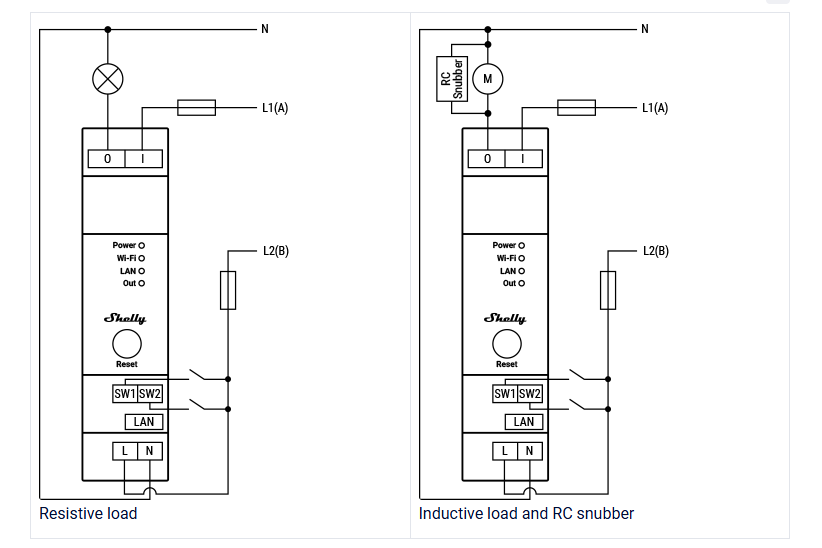

Supported Load Types

  • Resistive (e.g., incandescent bulbs, heaters)
  • Capacitive (e.g., capacitor banks, electronics)
  • Inductive with RC Snubber (e.g., LED drivers, fans, compressors)

User Interface

Inputs

One tactile dome button

Press and hold 5 sec to reboot

Press and hold 10 sec to factory reset



LED Indicators

Power (Red): Power supply connected

Wi-Fi: Blue (AP mode), Red (STA not connected), Yellow (STA connected without cloud), Green (STA connected with Shelly Cloud), Flashing Red/Blue (OTA update)

LAN (Green): LAN connected

Out (Red): Output relay closed

Specifications

Type Value

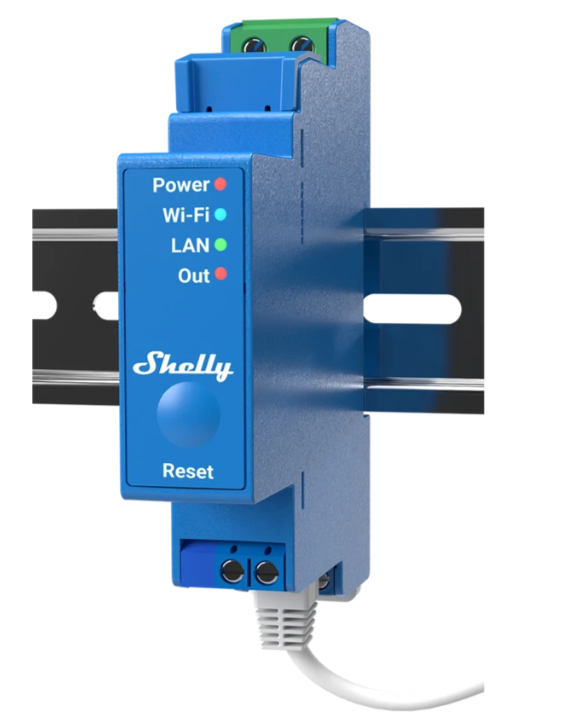

Physical Size: 94x19x69 mm | Weight: 63g | Mounting: DIN rail | Shell: Plastic (Blue)
Environmental Temperature: -20°C to 40°C | Humidity: 30–70% RH | Max altitude: 2000m
Electrical AC Supply: 110–240V | DC Supply: N/A | Power Consumption: <3W | Neutral required: Yes
Output Ratings Max Voltage AC: 240V | Max Current: 16A
Sensors Internal temperature sensor: Yes
Radio Wi-Fi 802.11 b/g/n | RF Power: <20 dBm | Range: 30m indoors / 50m outdoors | Bluetooth 4.2
MCU ESP32-D0WDQ6 | Flash: 8 MB
Firmware Schedules: 20 | Webhooks: 20 (5 URLs each) | Scripting: Yes | MQTT: Yes | CoAP: No
