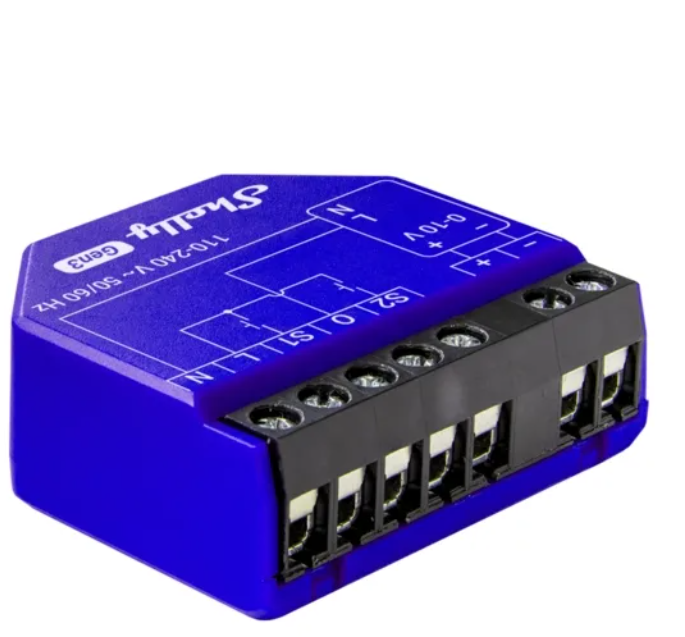

Shelly Dimmer 0/1-10V PM Gen3

Shelly Dimmer 0/1–10V PM Gen3

The Shelly Dimmer 0/1–10V PM Gen3 is a smart dimming controller that allows remote dimming of drivers through your mobile phone, tablet, PC, or home automation system. It supports both 0–10V and 1–10V drivers and can operate standalone on a local Wi-Fi network or through cloud-based home automation services.

Main Features

• Bluetooth: Short-range communication and pairing with Bluetooth devices.
• BLE Gateway: Connects BLE and Wi-Fi devices for seamless control.
• Wi-Fi: Connects directly to your wireless network — no hub required.
• Wi-Fi Range Extender: Extends your Wi-Fi network coverage.
• Scripting: Create advanced automation scenarios.
• Schedules: Supports both basic and advanced weekly or yearly lighting routines.
• Auto on/off timers and Local actions for flexible automation control.
• Webhooks: Trigger external actions and integrations.
• Power Monitoring: Tracks voltage, current, and consumption in real time.
• Safety Protections: Overcurrent, overvoltage, overpower, and overheating protection.
• Night Mode: Automatically dims lights to a preset brightness during nighttime.
• Supports 0–10V & 1–10V Drivers: Perfect for controlling dimmable lights, motors, and valves.

Main Applications

• Residential smart lighting
• MDU (apartments, condos, hotels)
• Light commercial spaces
• Government or municipal buildings
• University and educational facilities

Use Cases

• Adjust brightness of dimmable lights within the 0–10V range.
• Create smart schedules to adapt lighting throughout the day.
• Retrofit existing lighting with smart dimming while keeping physical switches.
• Sync lighting levels with sunrise and sunset.
• Enable night mode for softer light during evening hours.
• Integrate with Home Assistant, Alexa, Google Home, and SmartThings.
• Monitor and manage power consumption for energy efficiency.

Integrations

• Amazon Alexa – Supported
• Google Smart Home – Supported
• Samsung SmartThings – Supported

Device Electrical Interfaces

• Inputs: 2 switch/button inputs (S1 and S2), 1 neutral (N), and 1 live (L)
• Outputs: 2x 0–10V outputs (+ and –), 1 relay output with power measurement
• Add-on Interface: Shelly proprietary serial interface

Connectivity

• Wi-Fi (802.11 b/g/n)
• Bluetooth 4.2

Safety Functions

• Overheating protection
• Overvoltage protection
• Overcurrent protection
• Overpower protection

Supported Load Types

• 0–10V signal control for lights, motors, and valves
• 1–10V signal control

User Interface

• Button: One control button for setup and factory reset
• LED Indicator: Displays Wi-Fi, Bluetooth, and cloud connection status

Specifications
