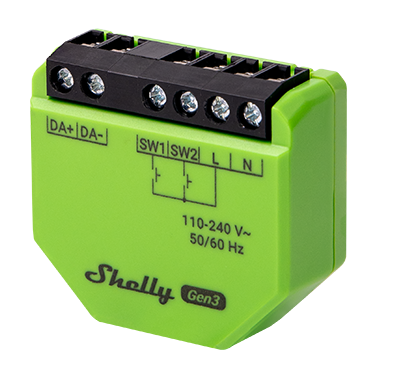

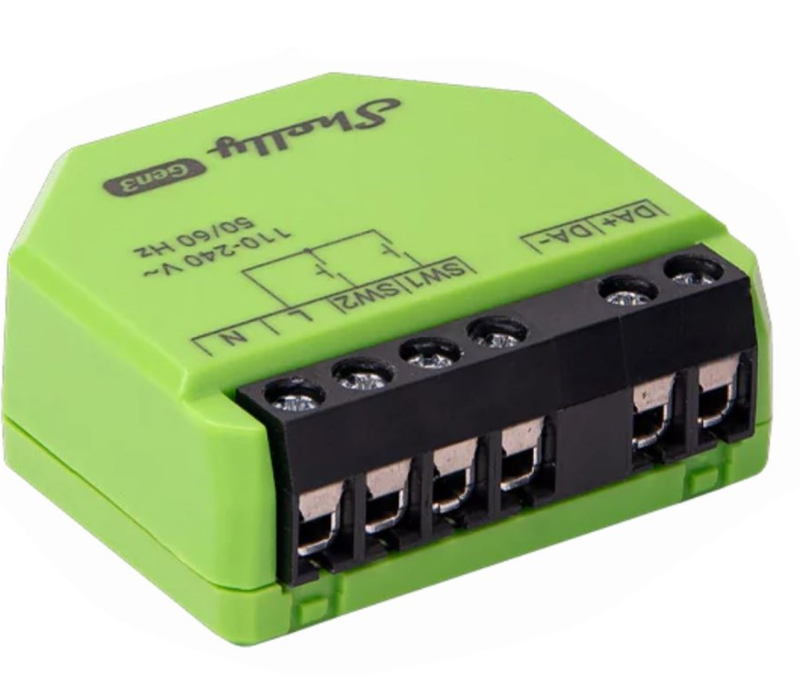

Shelly DALI Dimmer Gen 3

Shelly DALI Dimmer Gen 3 – Smart DALI Lighting Gateway

Bring professional-grade lighting control to your smart home or commercial space with the Shelly DALI Dimmer Gen 3. This intelligent DALI gateway seamlessly bridges the Shelly ecosystem and DALI-capable light sources, giving you precise dimming control, automation, and monitoring through Wi-Fi and Bluetooth connectivity.

Key Features

• DALI Application Controller: Supports DALI bus control in a single-master configuration for direct or indirect DALI gear lighting.
• Smart Dimming: Full-range brightness control (DT6) with adjustable fade rates, minimum/maximum brightness, and night mode.
• Integrated Power Supply: Built-in DALI bus power supply for up to 5 DALI bus units (10mA rated current, <35mA short-circuit).
• Wi-Fi & BLE Connectivity: Control lights locally or remotely through Shelly Smart Control or 3rd-party integrations.
• One/Dual Button Control: Works with any standard wall switch for seamless dimming control.
• Schedules & Timers: Set daily lighting routines, transition times, and auto on/off timers.
• Local Actions & Webhooks: Trigger automations and event-driven actions without needing cloud access.
• Wi-Fi Range Extender: Extends network coverage and strengthens your Shelly ecosystem connectivity.
• KNX Support: Compatible with KNXnet/IP systems for professional automation environments.

Smart Use Cases

• Add DALI lights to your existing Shelly smart home setup.
• Control and monitor lights through Shelly Smart Control App or via local APIs.
• Integrate with Amazon Alexa, Google Home, and Samsung SmartThings for voice and app-based control.
• Automate lighting schedules for residential, hospitality, or commercial installations.

Integrations & Compatibility

• Amazon Alexa: Brightness control support.
• Google Smart Home: Brightness trait supported.
• Samsung SmartThings: Color control and brightness support.
• MQTT and Webhooks: For flexible integration with local or cloud-based automation systems.

Technical Specifications

• Power Supply: 110–240V AC ±10%, 50/60Hz
• Power Consumption: < 2W
• Connectivity: Wi-Fi (802.11 b/g/n), Bluetooth 4.2
• Operating Temperature: -20°C to 40°C
• Humidity: 30% to 70% RH
• Supported Load: Up to 5 DALI bus units (10mA rated)
• Bus Voltage: 16V nominal
• Dimensions: 42 x 37 x 17 mm
• Mounting: In-wall or suspended ceiling
• Overheat Protection: Yes, with automatic shutdown and alerts

Why Choose Shelly DALI Dimmer Gen 3?

With its powerful integration options and professional-grade reliability, the Shelly DALI Dimmer Gen 3 is ideal for modern lighting systems. Whether for smart homes, offices, or large-scale DALI installations, it delivers seamless dimming, automation, and control — all through Wi-Fi, without needing a separate hub.
