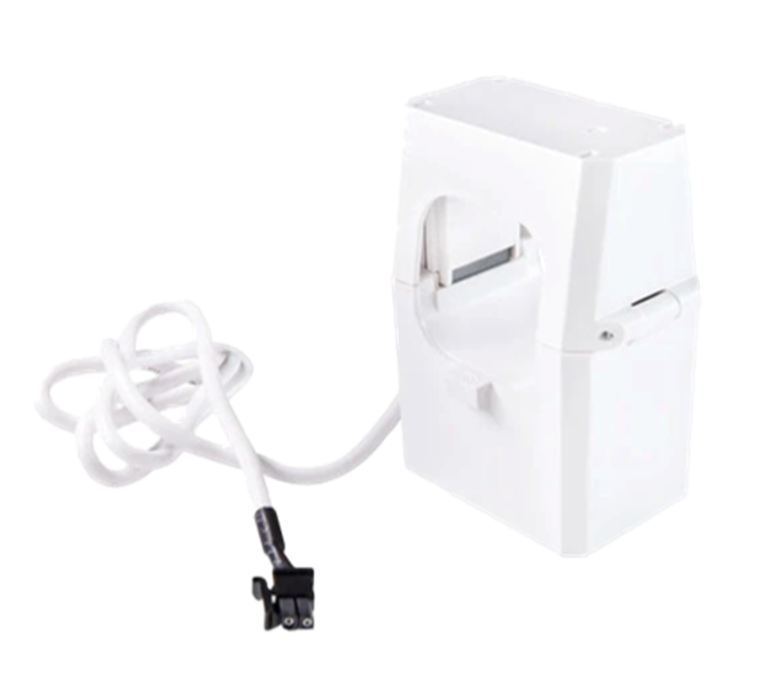

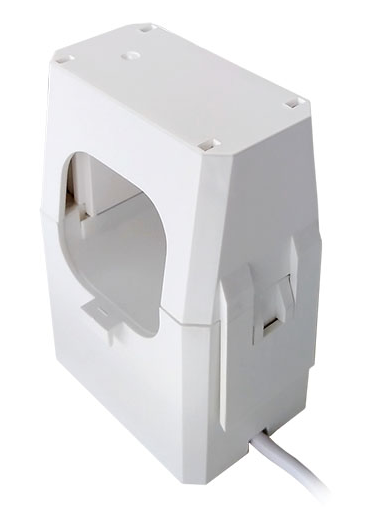

Shelly CT 400A (Split-Core Current Transformer)
The Shelly CT 400A is a split-core current transformer designed specifically for use with the Shelly Pro 3EM-400 energy meter. With its snap-on, screwless mounting system, the CT 400A ensures easy installation and reliable performance for accurate energy monitoring of high-capacity circuits.
Features
- Split-core design for easy installation
- Snap-on, screwless mounting system
- High measurement accuracy for up to 400 A circuits
- Durable build with ferrite core and insulated plastic shell
Main Application
Designed for seamless integration with the Shelly Pro 3EM-400 energy meter, enabling reliable monitoring of large electrical loads.
Connector
Equipped with a 2-pin MX3.0-2x1Y connector for direct connection to Shelly Pro 3EM-400.
Specifications
| Size (H × W × D) | 84 × 54 × 48 ±0.5 mm / 3.31 × 2.13 × 1.89 ±0.02 in (without cable) |
|---|---|
| Weight | 290 ±1 g / 10.23 ±0.05 oz (with cable) |
| Conductor aperture | Ø35 mm / 1.38 in |
| Core | Ferrite |
| Shell material | Plastic |
| Color | White |
| Ambient temperature | -10 °C to 50 °C / 14 °F to 122 °F |
| Humidity | 0% to 80% RH |
| Max. altitude | 2000 m / 6562 ft |
| Primary/secondary current ratio | 3000/1 |
