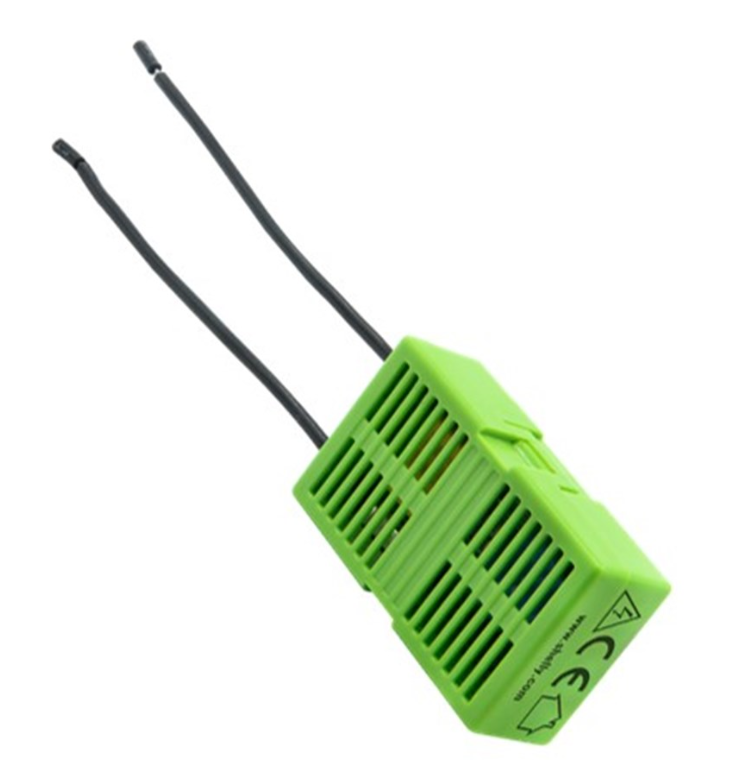

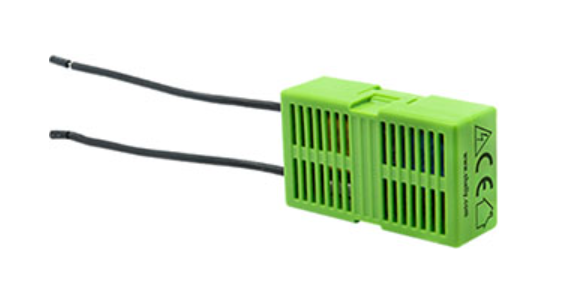

Shelly Bypass for Dimmer
A compact accessory that allows the Shelly Dimmer gen 3 to function seamlessly in setups without a Neutral wire, particularly when managing loads below 20 W.
Specifications
| Quantity | Value |
|---|---|
| Size (HxWxD) | 39 × 23 × 13 mm / 1.54 × 0.91 × 0.51 in (without wires) |
| Weight | 8 g / 0.28 oz |
| Conductor cross section | 0.2 mm² / 24 AWG stranded |
| Conductor stripped length | 0.5 mm / 0.02 in |
| Length of cables | 65 ± 5 mm / 2.56 ± 0.2 in |

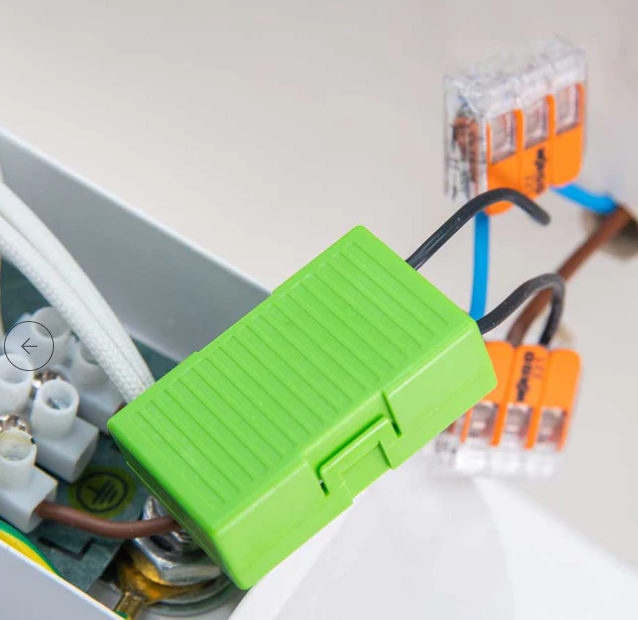

| Mounting | Inside light fixture |
| Shell material | Plastic |
| Shell color | Lime (same as Dimmer Gen3) — print: black |
| Cable color | Black |
| Ambient temperature | -20° C to 40° C / -5° F to 104° F |
| Humidity | 30% to 70% RH |
| Max. altitude | 2000 m / 6562 ft |
| Power supply | 220–240 V ~ 50 Hz |
| Power consumption | < 4 W |

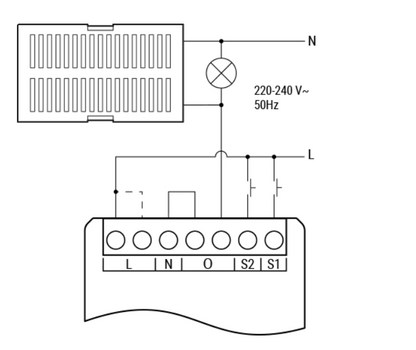

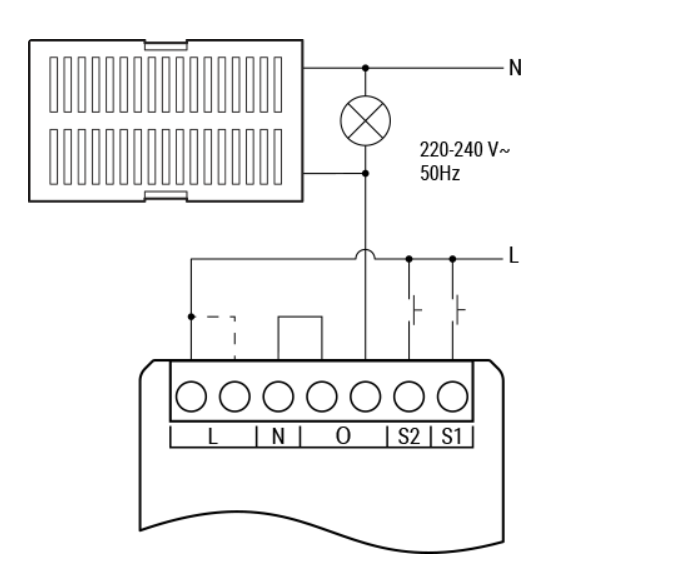

Wiring & diagrams
Use the Bypass exactly as shown in the Shelly Dimmer Gen3 installation diagram. Replace the image URL below with the wiring diagram uploaded to Shopify Files or your CDN.
What’s in the box
- 1 × Shelly Bypass for Dimmer (pre-wired)
- Installation guide (quick start / wiring diagram)
Notes & safety
- To be installed by a licensed electrician. Disconnect mains power before installation.
- Designed for 220–240 V ~ 50 Hz systems. Check local electrical standards before installing.
