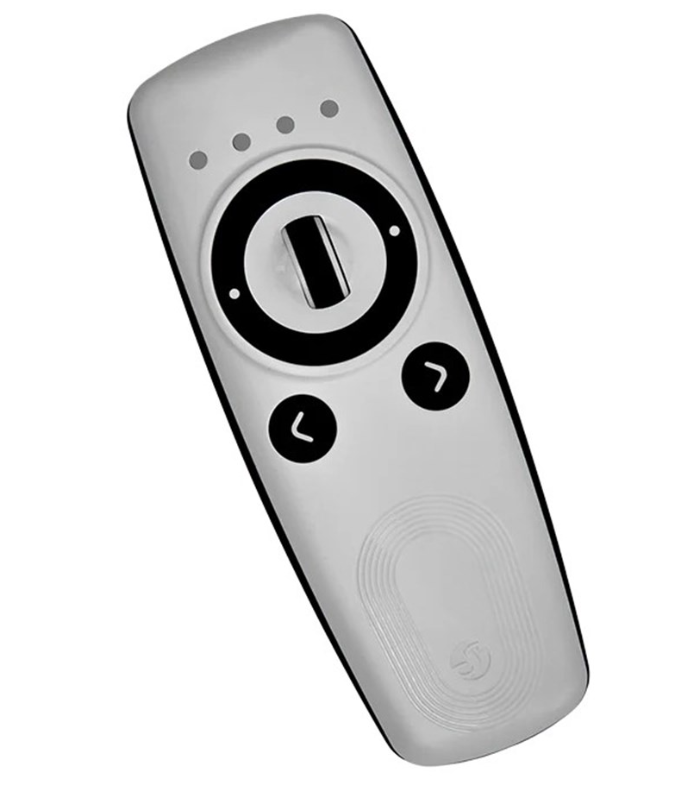

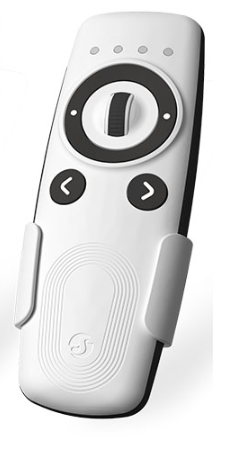

Shelly Blu Remote Control- White

Effortlessly control your smart home with the Shelly BLU Remote Control ZB. This compact, battery-powered remote uses both Bluetooth and Zigbee to give you fast, flexible control over your Shelly and smart home ecosystem. With four channels, intuitive buttons, a precise scroller wheel, and gesture control, it’s perfect for managing lights, blinds, covers, relays, and more.

Featuring an integrated accelerometer for gesture-based commands, LED indicators, a built-in buzzer, and seamless pairing with Shelly Gen3, Gen4, Pro, and Plus Series (via Bluetooth gateway), this remote is designed for reliable and effortless everyday control.

Main Features

• Universal control: Supports Bluetooth and Zigbee for low-latency device control.
• Seamless pairing: Connects easily with Shelly Pro, Gen3, and Gen4 devices via Default Command Mapping.
• Four independent channels: Dedicated navigation buttons for switching between devices.
• Built-in gesture control: Use simple hand movements to dim lights or move blinds.
• Instant feedback: LED indicators and a buzzer confirm every action.
• Beacon mode: Helps you locate the remote using the audible buzzer.
• Broad compatibility: Works with Home Assistant and BTHome protocol devices.
• One remote, many devices: Control blinds, lights, relays, and more from a single controller.

Use Cases

• Lighting Control: Switch on/off, adjust brightness using the scroll wheel, or use gesture-based dimming.
• Smart Blinds & Curtains: Open/close motorized coverings with a button press, scroll, or gesture.
• Garage Access: Trigger garage door relays without your phone.
• Location-Based Automation: Use Beacon mode to activate scenes when you come into Bluetooth range.

Main Applications

• Residential homes
• Multi-dwelling units (apartments, condos, hotels)
• Light commercial (offices, retail, restaurants)
• Government & municipal buildings
• Universities & campuses

Integrations

• Amazon Alexa: Doorbell EventSource support
• Google Smart Home: Not supported
• Samsung SmartThings: Not supported

Connectivity

• Bluetooth 5 (LE)
• Zigbee (802.15.4)

User Interface & Controls

Navigation Buttons (< / >)

• Single press: Switch control channel (1–4).
• Long press: Angle measurement mode via accelerometer.
• Triple press: Zigbee Group Identify (devices blink for 5s).
• Quadruple press: Enter BLE pairing mode.
• Five presses: Enter Zigbee inclusion mode.

Ring Buttons (Left / Right)

• Single press: Send control command.
• Triple press: Zigbee Group Identify.
• Quadruple press: BLE pairing mode.
• Five presses: Zigbee inclusion mode.
• Hold 30 sec: Factory reset.

Scroll Wheel

• Rotating up/down adjusts brightness, moves covers, or triggers mapped actions.

LED & Buzzer Feedback

• Channel change: Two flashes + beep.
• Command sent: One flash.
• BLE pairing: LEDs sweep left → right.
• Zigbee inclusion: LEDs sweep right → left.
• Identify modes: Rapid flashing.
• Factory reset: All LEDs flash once + beep.

Specifications

Physical

• Size: 129 × 47 × 24 mm
• Weight: 63 g (without batteries), 85 g (with batteries)
• Material: Plastic
• Colour: White or Black

Environmental

• Operating temp: -20°C to 40°C
• Humidity: 30%–70% RH
• Max altitude: 2000 m

Electrical

• Power source: 2 × AAA 1.5V batteries
• Estimated battery life: ~2 years

Radio

• Bluetooth 5 (LE), RF Power < 8 dBm
• Zigbee 802.15.4, RF Power < 8 dBm
• Range: Up to 10 m indoors / 30 m outdoors (environment-dependent)

MCU

• Processor: EFR32MG27
• Flash: 768 KB

Firmware Capabilities

• Schedules: No
• Webhooks: No
• Scripting: No
• MQTT: No
• Encryption: Yes

Supported Devices

• Shelly Gen3 / Gen4 series
• Shelly Pro series
• Shelly Plus series (as Bluetooth Gateways)
