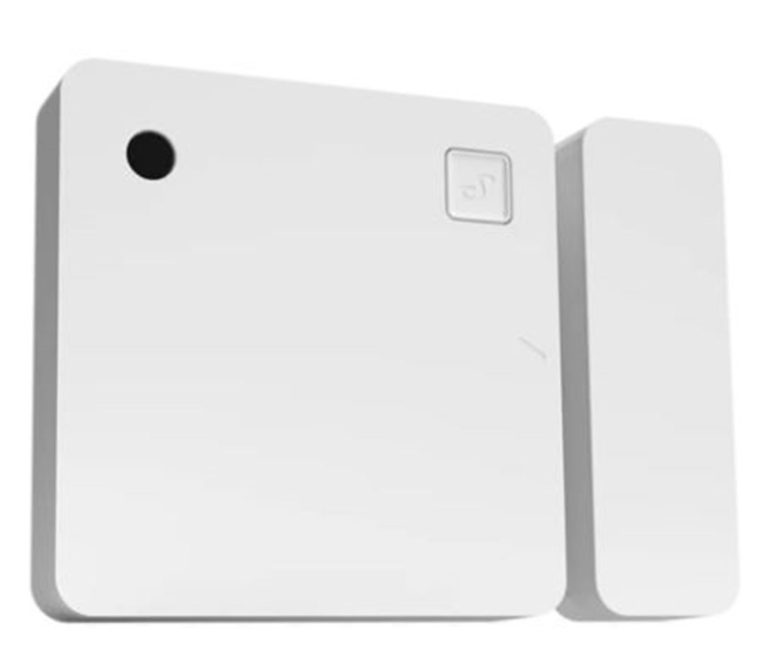

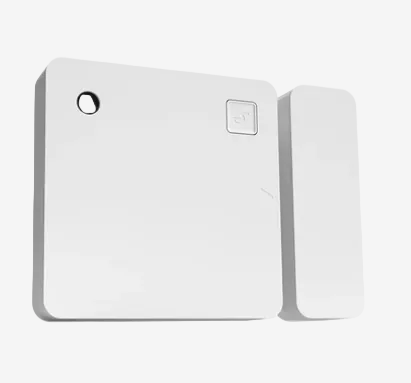

ShellyBLU Door/Window Sensor
Smart Bluetooth Door & Window Sensor
The ShellyBLU Door/Window is a compact Bluetooth sensor designed to detect the opening and closing of doors or windows. It can also measure the angle of inclination for tilt-and-turn mechanisms and features a built-in light sensor to measure illumination levels.
Key Features
- Long battery life
- Door/window open and close detection
- Inclination angle measurement
- Illumination measurement
- Beacon mode
- Encrypted mode
Main Applications
- Residential homes
- MDU (apartments, condominiums, hotels, etc.)
- Light commercial (offices, retail stores, small restaurants, etc.)
- Government and municipal buildings
- Universities and colleges
Connectivity
Bluetooth
Modes of Operation
Regular Mode
In Regular mode, the device broadcasts the current open/closed state, illuminance, and battery status whenever the open/closed state changes. If a tilt-and-turn window or door is opened, it immediately broadcasts event information, illumination, and battery status. Two seconds later, it reports inclination angle and illumination data, followed by angle checks every 8 seconds, broadcasting updates if any change is detected.
Beacon Mode
In Beacon mode, the device broadcasts the open/closed state, illumination, and battery status every 30 seconds. This mode can be enabled via the Shelly Smart Control app. Note that battery life may be significantly reduced while in Beacon mode.
User Interface
- One push button: Press and hold for 10 seconds to pair with another Bluetooth device.
- Factory reset: Press and hold for 30 seconds (only possible shortly after inserting the battery).
Specifications
| Physical | |
|---|---|
| Size (HxWxD) | 35x35x7 mm ±0.5 mm / 1.38х1.38х0.27 in (Sensor), 35x12x7 mm ±0.5 mm / 1.44х0.47х0.27 in (Magnet) |
| Weight | 10 g ±1 g (device with battery), 8 g ±1 g (magnet) |
| Material | Plastic |
| Color Options | White, Black, Brown |
| Environmental | |
| Temperature | -20°C to 40°C (-5°F to 105°F) |
| Humidity | 30% to 70% RH |
| Electrical | |
| Power Supply | 1x 3V CR2032 battery (included) |
| Battery Life | Up to 5 years |
| Sensors | |
| Reed Switch | Yes |
| G-sensor | Yes |
| Light Sensor | Yes |
| Radio | |
| RF Band | 2400 - 2483.5 MHz |
| Max RF Power | <4 dBm |
| Bluetooth Protocol | 4.2 |
| Range | Up to 10 m (33 ft) indoors, 30 m (100 ft) outdoors |
| MCU | |
| CPU | EFR32BG22C222F352GM32 |
| Encryption | AES (CCM mode) |
| Beacon Mode | Yes |
Note: Battery life may vary depending on usage and operating mode. Beacon mode reduces battery life. Range may vary based on environmental conditions.
