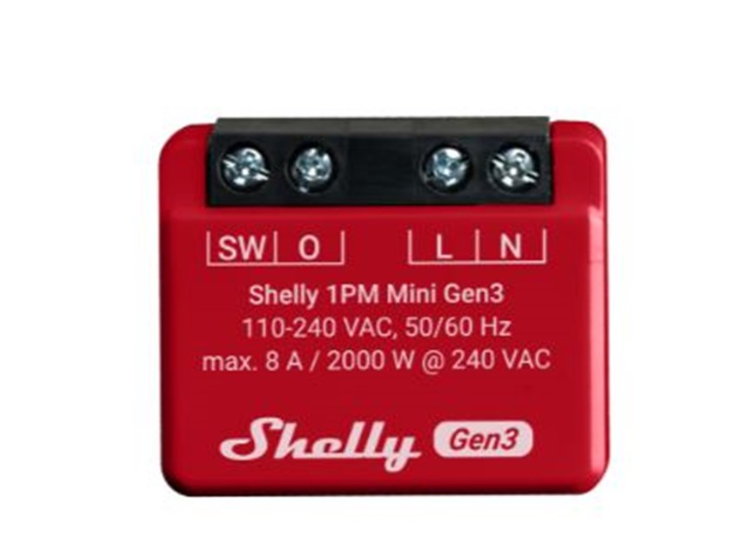

Shelly 1PM Mini Gen3

Shelly 1PM Mini Gen3 – Compact Smart Switch with Power Measurement

Shelly 1PM Mini Gen3 is a small form factor smart switch with power measurement, designed for remote control and monitoring of electric appliances through a mobile phone, tablet, PC, or home automation system. It can operate standalone in a local Wi-Fi network or connect to cloud automation services for remote access and advanced integrations.

Key Features

• Smart Switch with Power Monitoring: Measures real-time power usage of connected appliances for improved energy awareness.

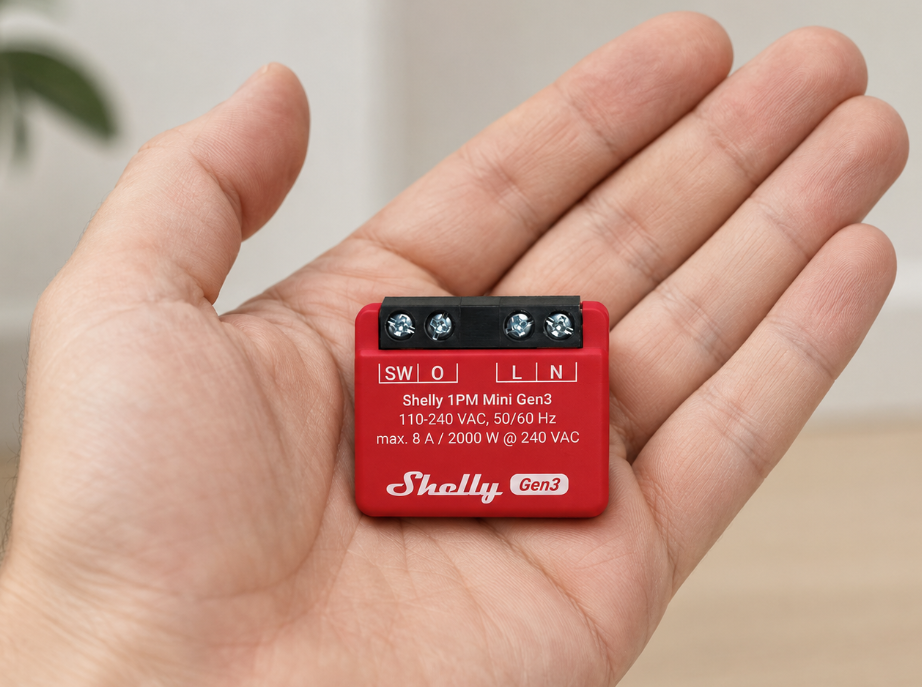

• Compact Design: Ultra-small size allows easy installation behind sockets, light switches, or in wall boxes with limited space.
• Remote Control: Manage your devices via smartphone, tablet, or computer from anywhere with internet access.
• Local & Cloud Control: Operates independently on a local Wi-Fi network or integrates with cloud automation systems.
• Improved Processor & Memory: Upgraded hardware delivers faster performance and greater reliability.
• Embedded Web Interface: Built-in web UI for direct access, control, and configuration without additional software.
• BLE Gateway: Acts as a bridge between Shelly BLU devices and your Shelly ecosystem for seamless Bluetooth connectivity.
• Wi-Fi Range Extender: Enhances Wi-Fi signal range for better network coverage across IoT devices.
• Advanced Automation: Supports scripts, webhooks, MQTT, and KNX for flexible automation and custom logic.
• Built-in Safety: Overheating, overvoltage, overcurrent, and overpower protection ensure long-term reliability.

Use Cases

• Appliance Control: Automate or remotely control lights, fans, and other electrical appliances.
• Power Monitoring: Track real-time energy consumption for smarter, more efficient energy use.
• Home Automation: Integrate with home systems to create custom schedules and scenes.
• Energy Efficiency: Identify power-hungry devices and reduce energy waste.
• Space-Constrained Installations: Perfect for fitting into tight spaces like wall boxes or behind outlets.

Integrations

• Amazon Alexa: Fully compatible for voice control and automation.
• Google Smart Home: Supports Google Home control traits.
• Samsung SmartThings: Works seamlessly within SmartThings ecosystem.
• Home Assistant & MQTT: Integrates with open-source systems via HTTP, MQTT(s), and WebHooks (HTTP/HTTPS).

Technical Specifications

• Power Supply: 110–240 V AC
• Max Switching Power: 2000 W (8 A @ 240 V AC)
• Power Measurement: Yes
• Wi-Fi Protocol: 802.11 b/g/n (2.4 GHz)
• Bluetooth Protocol: 4.2 BLE
• CPU: ESP-Shelly-C38F with 8 MB Flash
• Operating Temperature: −20 °C to 40 °C

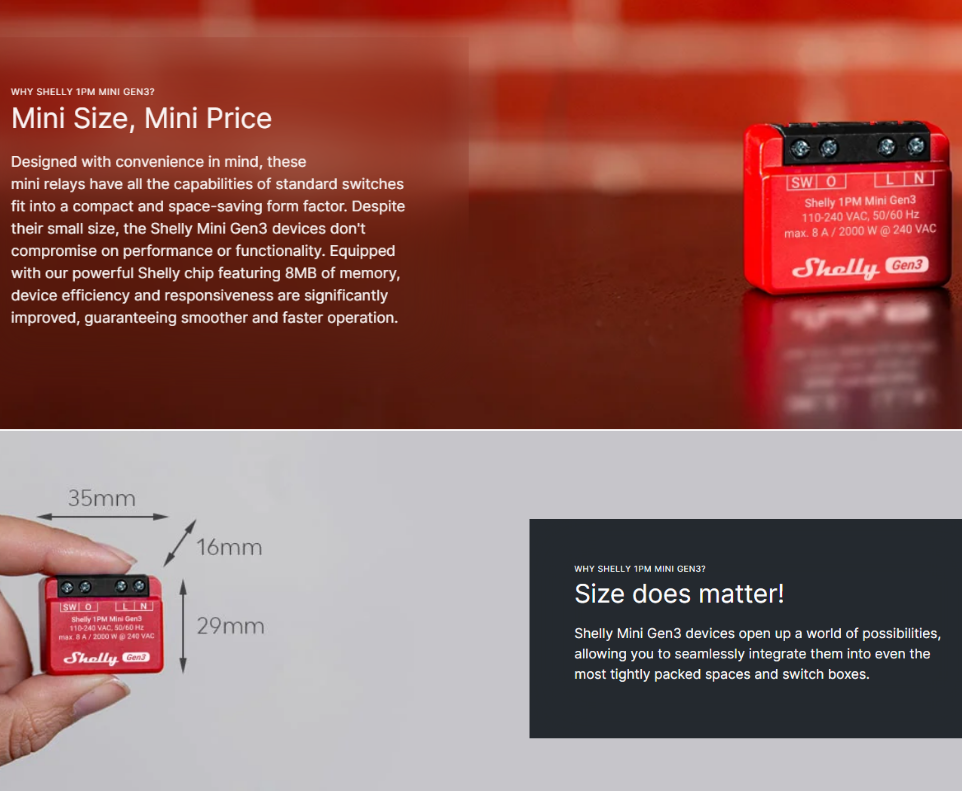

• Dimensions (HxWxD): 29 × 34 × 16 mm
• Mounting: Standard wall box
• Power Consumption: < 1.2 W
• Protection: Overheat, overvoltage, overcurrent, and overpower
• Range: Up to 30 m indoors / 50 m outdoors (depends on conditions)

Supported Load Types

• Resistive (e.g. incandescent bulbs, heaters)
• Capacitive (e.g. electronic equipment, capacitor banks)
• Inductive (e.g. LED drivers, transformers, fans, air conditioners)

Why Choose Shelly 1PM Mini Gen3?

With advanced energy monitoring, ultra-compact design, and wide-ranging integrations, the Shelly 1PM Mini Gen3 is the perfect choice for smart home users who value performance, reliability, and versatility. Whether you’re automating a single appliance or an entire smart home network, this device gives you full control with precise energy insights.

Upgrade your smart home setup with the Shelly 1PM Mini Gen3 — compact, powerful, and ready for anything.
