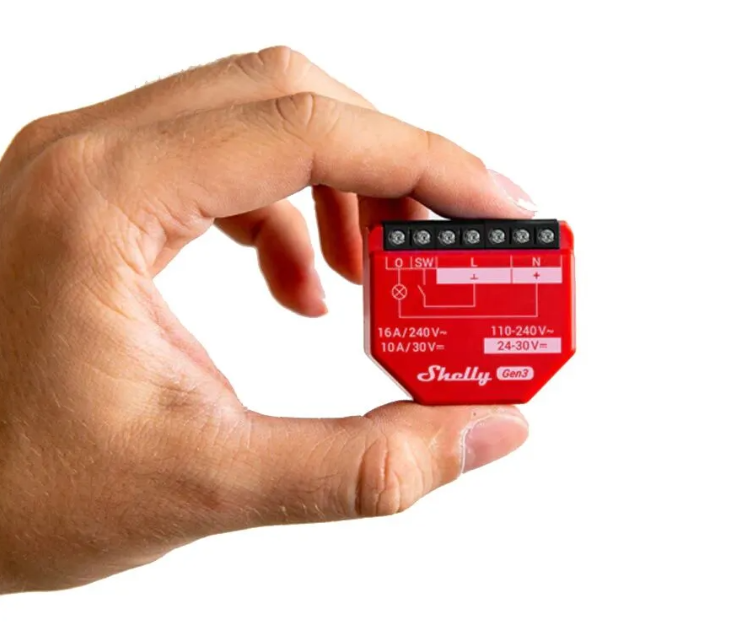

Shelly 1PM Gen 3

Shelly 1PM Gen3: Smart Switch with Power Measurement

The Shelly 1PM Gen3 is a compact smart switch with power monitoring, designed to control and measure the power consumption of your electrical appliances remotely. It can work both locally on a Wi-Fi network and via cloud home automation platforms. With an upgraded processor and enhanced memory, it delivers faster performance and greater reliability compared to its predecessor.

Main Features

• Wi-Fi Connectivity: Connects to your home Wi-Fi for remote monitoring and control through the Shelly app or web interface.
• Integration with Smart Home Platforms: Compatible with Google, Alexa, and Samsung SmartThings for easy voice control and automation.
• Smart Switch with Power Measurement: Monitors energy usage of connected appliances in real time.
• Compact Design: Fits neatly behind sockets, switches, or inside small wall boxes.
• Local & Cloud Control: Operate locally via LAN or through Shelly Cloud for remote access.
• Improved Processor & Memory: Enhanced performance for more responsive operation.
• Embedded Web Interface: Adjust settings, monitor performance, and control connected devices directly.
• BLE Gateway: Bridges Shelly BLU devices to your Wi-Fi ecosystem.
• Wi-Fi Range Extender: Expands coverage for IoT devices in your smart home.
• Advanced Automation: Includes scripting, virtual components, and schedule support for flexible control.

Use Cases

• Appliance Control: Remotely switch lights, fans, and appliances on or off.
• Power Monitoring: Track real-time power consumption to identify energy-heavy devices.
• Home Automation: Create smart routines and schedules to suit your lifestyle.
• Energy Efficiency: Optimize usage and reduce electricity costs with accurate power tracking.
• Remote Monitoring: Manage appliances from anywhere with internet access.

Main Applications

• Residential
• MDU (apartments, hotels, condominiums)
• Light commercial (retail shops, small offices)
• Government or municipal buildings
• University and college campuses

Integrations

• Amazon Alexa: Supported
• Google Smart Home: Supported
• Samsung SmartThings: Supported

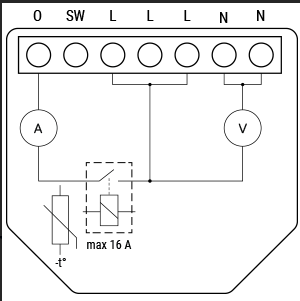

Device Electrical Interfaces

• Inputs: 1 switch/button input (SW); 5 power supply inputs (2 N and 3 L)
• Outputs: 1 relay output with power measurement (O)
• Add-on Interface: Shelly proprietary serial interface

Connectivity

• Wi-Fi: 802.11 b/g/n
• Bluetooth 4.2

Safety Features

• Overheating protection
• Overvoltage protection
• Overcurrent protection
• Overpower protection

Supported Load Types

• Resistive (incandescent bulbs, heaters)
• Capacitive (motor start capacitors, electronics)
• Inductive with RC Snubber (LED drivers, fans, air conditioners)

User Interface

• One control button (for AP and factory reset functions)
• LED indicator (Wi-Fi, cloud, and OTA update states)

Specifications

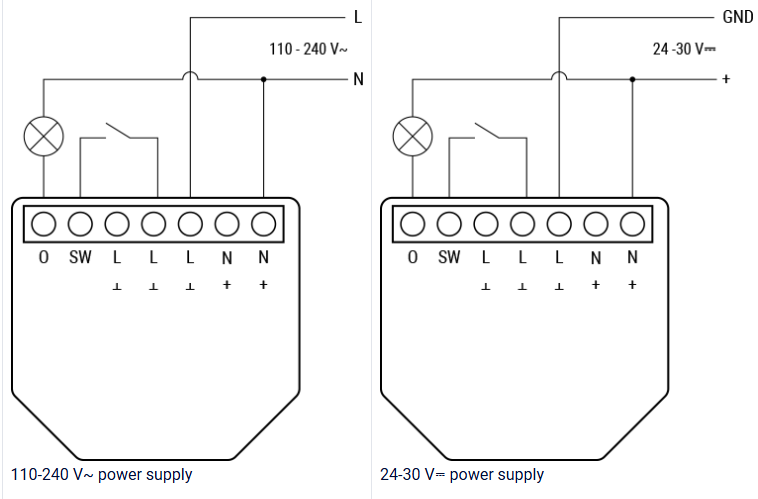

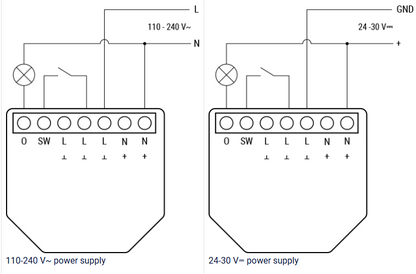

Supports both 110-240V~ AC and 24-30V⎓ DC wiring configurations.

Legend

• O: Load circuit output terminal
• L: Live wire (110–240V~)
• SW: Switch input terminal
• N: Neutral terminal
• GND: Ground (DC mode)
• + and Ʇ: Positive and negative DC terminals
