Shelly 1PM Gen4

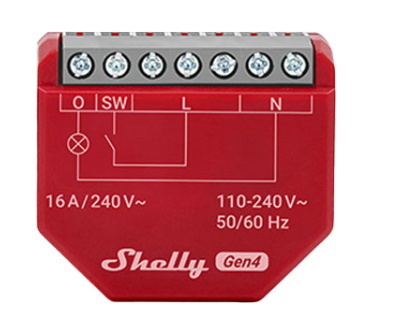

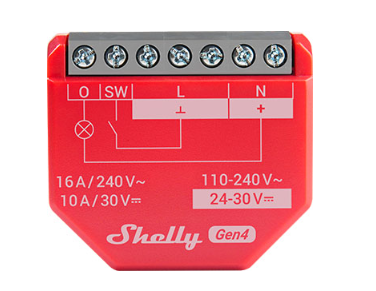

Shelly 1PM Gen4 ANZ – Smart Switch with Power Measurement

The Shelly 1PM Gen4  ANZ is a compact smart switch with integrated power measurement, allowing remote control of electric appliances via mobile phones, tablets, PCs, or your home automation system. It works standalone on a local Wi-Fi network or through cloud-based home automation services, and is compatible with Matter for seamless integration.

Main Features

• Wi-Fi Connectivity: Connects to your home Wi-Fi for remote monitoring and control.
• Bluetooth & Zigbee: Multi-protocol wireless MCU ensures secure connectivity and easy inclusion during setup.
• Integration with Smart Home Platforms: Works with Google Home, Amazon Alexa, and Samsung SmartThings for voice control and automation.
• Power Measurement: Monitor real-time energy consumption of connected appliances.
• Compact Design: Small form factor fits standard electrical wall boxes, behind sockets, or in confined spaces.
• Remote Control: Turn appliances on/off from anywhere with internet access.
• Local & Cloud Control: Operates independently on your network or via cloud services.
• Embedded Web Interface: Monitor, control, and adjust settings directly from the device.
• Wi-Fi & Zigbee Range Extender: Boosts network coverage for IoT devices.
• Scripting & Scheduling: Supports ShellyScript, HTTP API, MQTT, webhooks, and complex schedules for automation.
• Safety Protections: Overheating, overvoltage, overcurrent, and overpower protection.

Use Cases

• Appliance Control: Remotely operate lights, fans, heaters, or other devices.
• Power Monitoring: Track energy usage patterns and improve efficiency.
• Home Automation: Integrate into smart home systems to create custom scenes and schedules.
• Energy Efficiency: Identify high-energy devices and make informed decisions.
• Remote Monitoring: Control and monitor devices from anywhere via internet.

Home Automation Applications

• Lighting Control: Monitor power usage and detect failed bulbs.
• Appliance Automation: Track and automate high-load devices like ovens, dishwashers, and washing machines.
• Heater & Boiler Control: Automate water heaters or room heaters (Max. 16A) with energy monitoring.
• Overload Protection: Automatically shut off devices if power exceeds limits.

Commercial & Industrial Applications

• Energy optimization in offices and retail spaces
• Lighting zone energy analytics and preventive maintenance
• Motor/pump control with monitoring (Max. 16A)
• Solar or off-grid power load tracking

Specifications

• Size: 37 x 42 x 16 mm
• Weight: 27 g

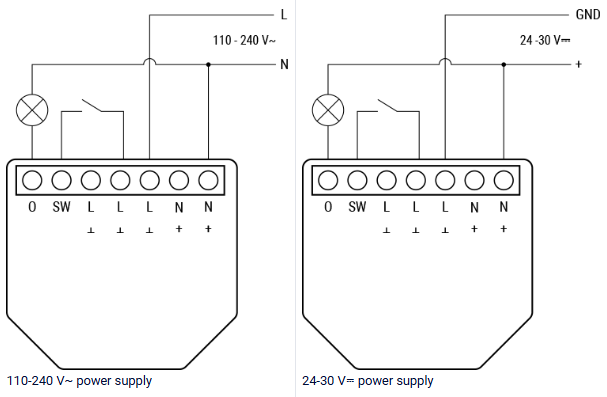

• Power Supply: 110–240V AC
• Max Switching Current: 16A (240V~)
• Wireless: Wi-Fi 802.11 b/g/n/ax, Bluetooth 5.0, Zigbee, Matter
• Operating Temp: -20°C to 40°C
• Humidity: 30–70% RH
• Remote Access: Via cloud or local network
• Supported Load Types: Resistive, capacitive, inductive (LED drivers, fans, motors)

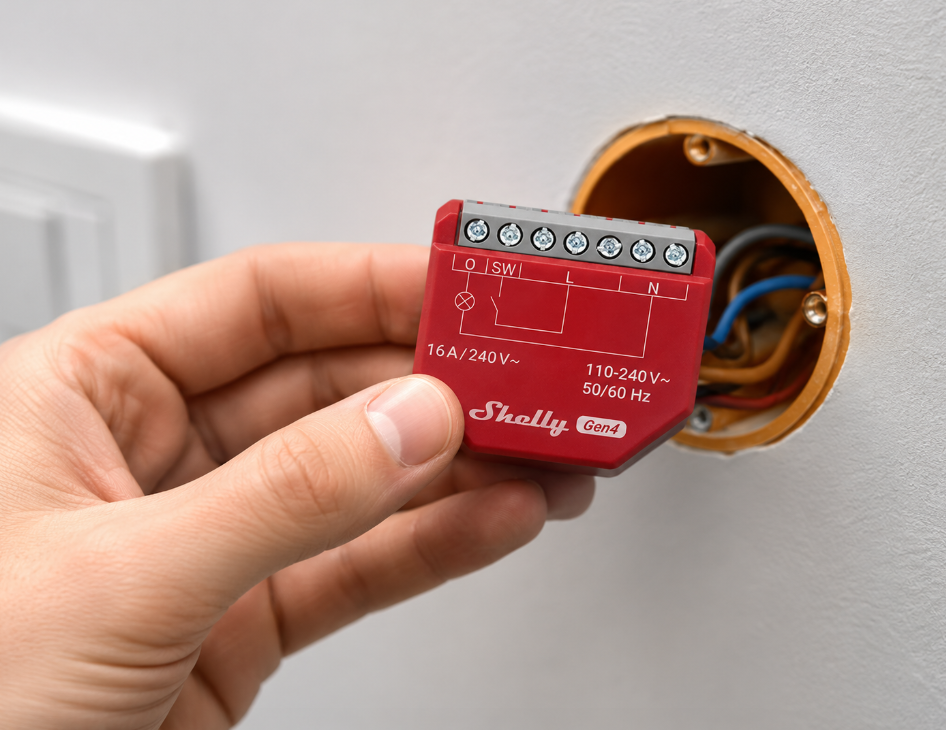

With its advanced connectivity, power monitoring, and compact design, the Shelly 1PM Gen4 ANZ is ideal for residential, commercial, and industrial automation projects. Easily retrofit it behind sockets or switches and integrate into your existing smart home ecosystem for full control and energy efficiency.
