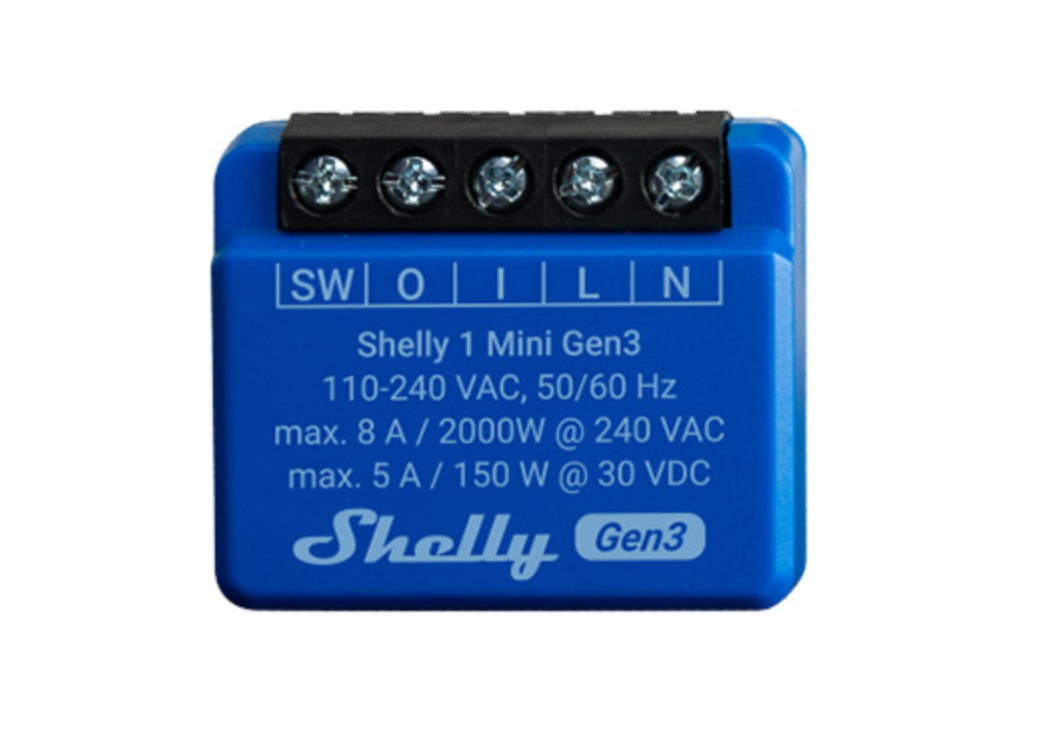

Shelly 1 Mini Gen3

Shelly 1 Mini Gen3: Compact Smart Switch with Enhanced Performance

The Shelly 1 Mini Gen3 is a small form factor smart switch with potential-free contacts, enabling remote control of electric appliances via your mobile phone, tablet, PC, or home automation system. It can work standalone in a local Wi-Fi network or be operated through cloud-based home automation services. This version is an improved upgrade of the Shelly Plus 1 Mini, featuring a more advanced processor and increased memory.

The Shelly 1 Mini Gen3 can be accessed, controlled, and monitored remotely from anywhere with internet connectivity, as long as the device is connected to a Wi-Fi router and the Internet.

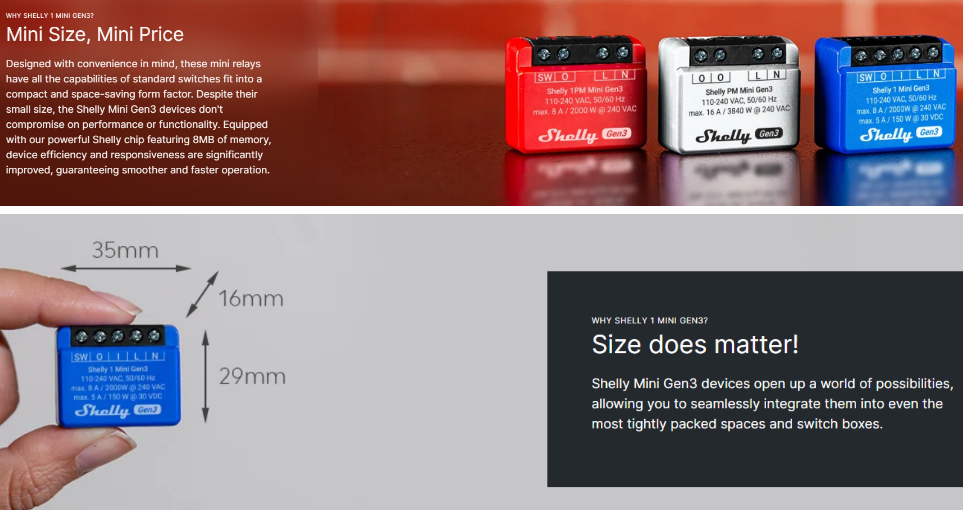

Its compact design allows it to be retrofitted into standard electrical wall boxes, behind power sockets, and light switches, or installed in other tight spaces. The device includes an embedded Web Interface for monitoring, control, and configuration of its settings.

Main Features

• Wi-Fi Connectivity: Connects to your home Wi-Fi network for remote operation and monitoring through the Shelly app.
• Integration with Smart Home Platforms: Compatible with Google, Alexa, and Samsung SmartThings for voice and automation control.
• Bluetooth Connectivity: Bluetooth and BLE gateway available for easy inclusion during setup.
• User-Friendly Interface: Includes a reset button for quick manual interaction.
• Improved Processor and Memory: Enhanced performance with faster response and stability.
• Wireless Connectivity: Supports Wi-Fi (802.11 b/g/n) and Bluetooth 4.2 with strong indoor and outdoor range.
• Dry Contact: Enables switching of lower voltage circuits.
• BLE Gateway: Bridges Shelly BLU devices with the wider Shelly ecosystem for local or cloud control.
• Wi-Fi Range Extender: Extends your Wi-Fi signal for improved IoT connectivity.
• Scripting Support: Shelly Scripting API Documentation
• Wide Integration Options: Compatible with 3rd party systems via HTTP API, MQTT(s), WebHooks, and UDP.
• Schedules: Allows complex operation scheduling based on time, date, or weekdays.

Use Cases

• Remote Appliance Control: Turn appliances on or off remotely from your smartphone, tablet, or PC.
• Internet-Connected Convenience: Full control from anywhere via Wi-Fi connection.
• Space-Efficient Retrofitting: Perfect for installation behind existing sockets, switches, or tight spaces.
• Home Automation: Enables advanced control and automation of power appliances for comfort and efficiency.

Integrations

• Amazon Alexa supported capabilities: Yes
• Google Smart Home supported traits: Yes
• Samsung SmartThings supported capabilities: Yes

Device Electrical Interfaces

Inputs:

• 1 switch/button input on screw terminal
• 1 potential-free contacts relay input on screw terminal
• 2 power supply inputs on screw terminals: N and L

Outputs:

• 1 potential-free contacts relay output on screw terminal

Connectivity

• Wi-Fi
• Bluetooth

Safety Function

Overheating protection

Supported Load Types

• Resistive (incandescent bulbs, heating devices)
• Capacitive (capacitor banks, electronic equipment)
• Inductive (LED drivers, fans, motors, air-conditioners)

User Interface

Inputs:

• One (Control) button for setup and reset functions.

LED Indication States:

• AP enabled, Wi-Fi disabled: 1 sec ON / 1 sec OFF
• Wi-Fi enabled, not connected: 1 sec ON / 3 sec OFF
• Connected to Wi-Fi: Constantly ON
• OTA Update: ½ sec ON / ½ sec OFF

Specifications

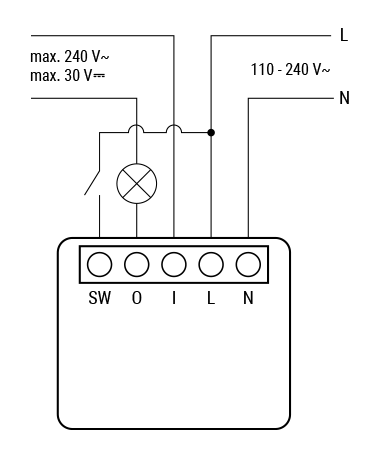

Legend

• SW: Switch input terminal
• L: Live (110–240 VAC)
• O: Load output terminal
• N: Neutral wire
• I: Load input terminal
