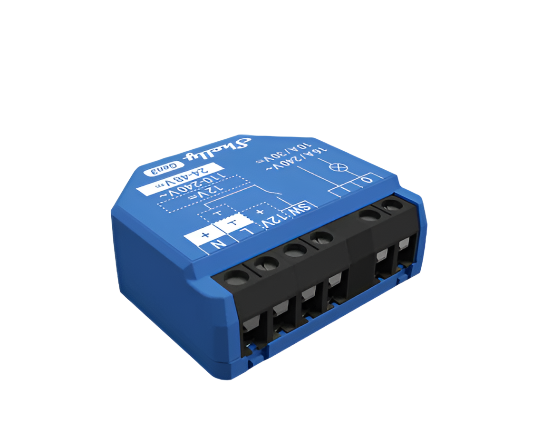

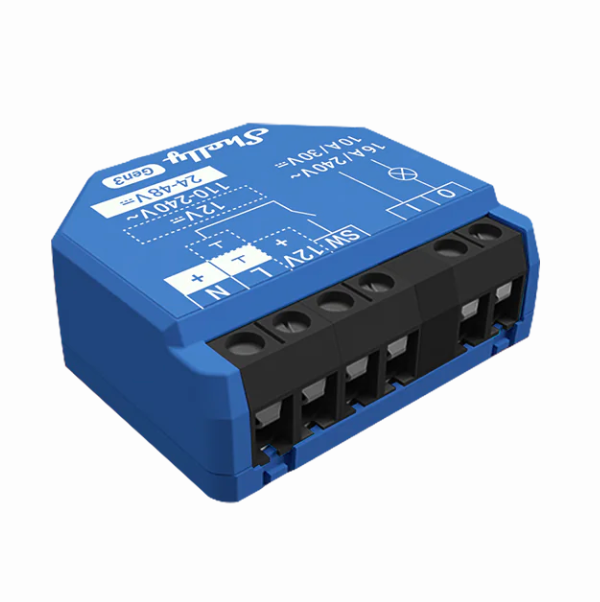

Shelly 1 Gen3: Compact and Versatile Smart Switch
The Shelly 1 Gen3 is a small form factor smart switch with potential-free contacts, allowing remote control of electric appliances through a smartphone, tablet, PC, or home automation system. It can operate standalone in a local Wi-Fi network or through cloud-based home automation services. Featuring an upgraded processor and increased memory compared to its predecessor, the Shelly 1 Gen3 delivers improved performance and reliability.
The device can be accessed, controlled, and monitored remotely from anywhere with internet connectivity, as long as it is connected to a Wi-Fi router. Compact and adaptable, it can be retrofitted into standard electrical wall boxes, behind power sockets and light switches, or other confined spaces. The embedded web interface enables real-time monitoring, control, and configuration.
Main Features
- Wi-Fi Connectivity: Connects to your home Wi-Fi network, allowing remote operation via the Shelly app or compatible automation systems.
- Bluetooth Connectivity: Includes Bluetooth and BLE gateway for simplified setup and pairing.
- Cloud and Local Control: Operates either independently on your local network or through cloud-based control platforms.
- Smart Home Integration: Works seamlessly with Google Home, Amazon Alexa, and Samsung SmartThings for voice control and automation.
- Improved Processor and Memory: Offers enhanced performance and faster response times.
- Embedded Web Interface: Provides local access for configuration, monitoring, and manual control.
- BLE Gateway: Acts as a Bluetooth bridge for other Shelly BLU devices within your ecosystem.
- Wi-Fi Range Extender: Expands your smart home network by extending the range of your existing Wi-Fi signal.
- Safety Protection: Built-in overheating protection and support for resistive, capacitive, and inductive loads.
- Scripting & Automation: Supports Shelly Scripts for custom automation logic.
- Advanced Integration Options: Compatible with HTTP API, MQTT(s), Webhooks, and UDP for seamless system integration.
Use Cases
- Remote Appliance Control: Turn on or off connected appliances using your smartphone, tablet, or automation system.
- Home Automation: Create schedules and routines for smarter energy management and convenience.
- Retrofit Applications: Easily upgrade existing switches and outlets to smart control without major rewiring.
Main Applications
- Residential and multi-dwelling units (apartments, condos, hotels)
- Light commercial environments (offices, small retail, restaurants, etc.)
- Government and municipal facilities
- Universities and educational institutions
Integration Compatibility
| Amazon Alexa: | Supported |
| Google Home: | Supported |
| Samsung SmartThings: | Supported |
Specifications
| Power Supply: | 110-240 V~, 24-48 V⎓, 12 V⎓ |
| Power Consumption: | < 1.2 W |
| Max Switching Current: | 16A (AC), 10A (DC) |
| Dimensions (HxWxD): | 37 x 42 x 16 mm |
| Weight: | 26 g |
| Wi-Fi Protocol: | 802.11 b/g/n |
| Bluetooth Protocol: | 4.2 with BLE |
| Operating Temperature: | -20°C to 40°C |
| Material: | Plastic, Blue Casing |
| Safety: | Overheating protection, supports multiple load types |
Supported Load Types
- Resistive (incandescent bulbs, heating appliances)
- Capacitive (electronics, capacitor banks)
- Inductive (LED drivers, transformers, fans, compressors)
The Shelly 1 Gen3 offers reliable, flexible control for residential, commercial, and automation projects—making it the ideal choice for modern smart home applications.
