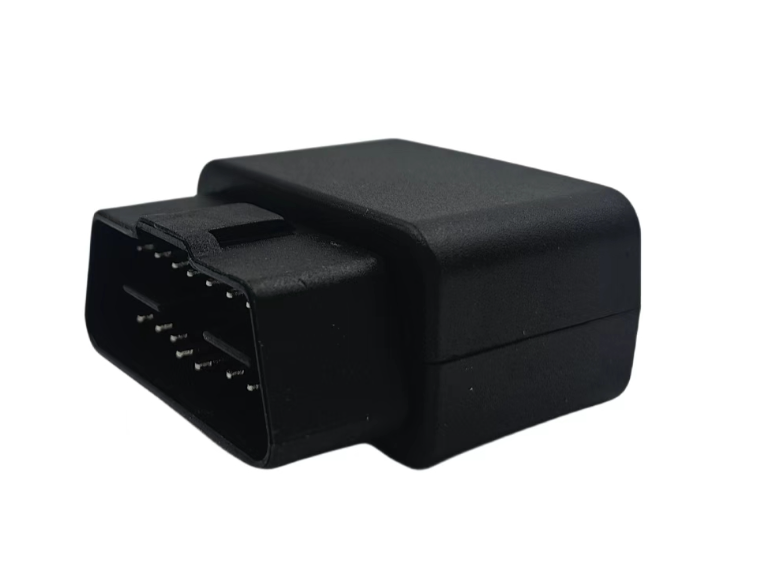

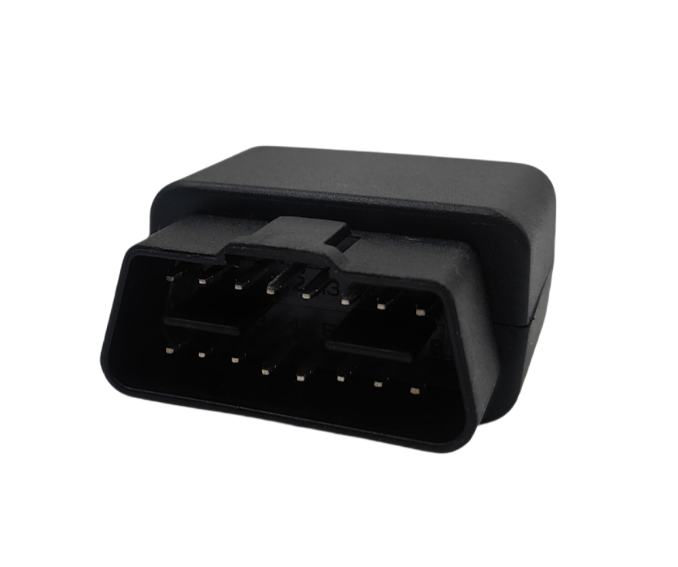

OzTrack 4G OBD Tracker V3

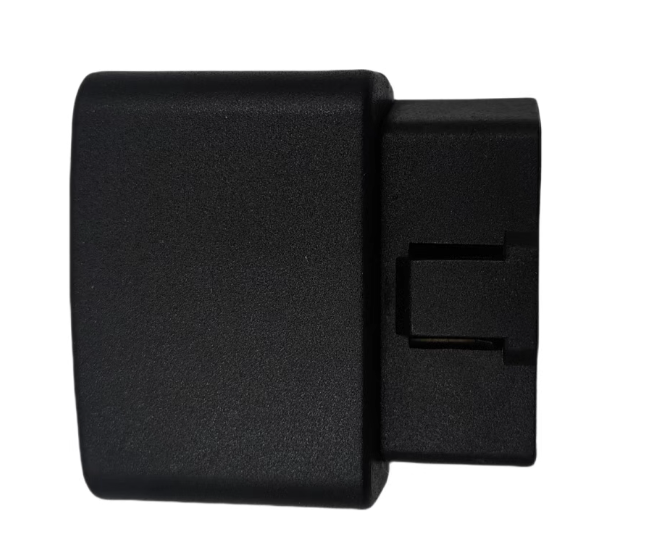

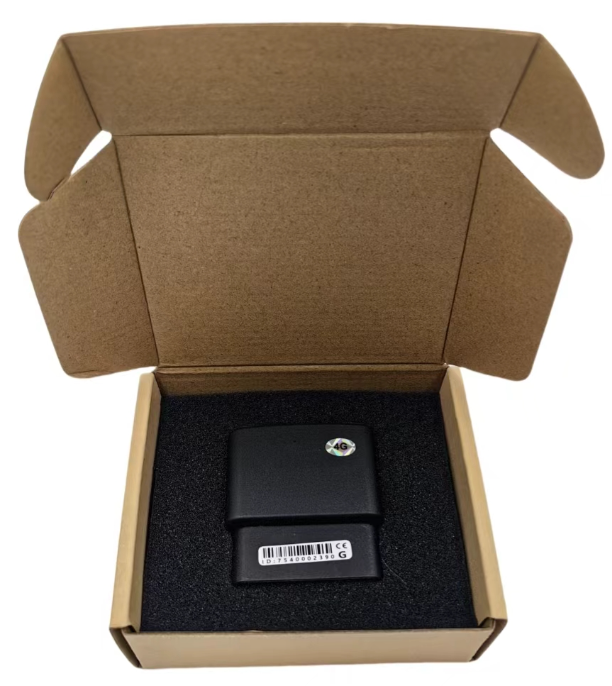

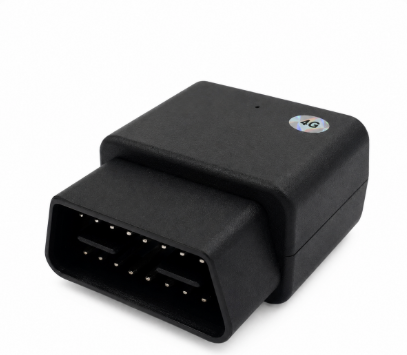

LK730 OBD GPS Vehicle Tracker – Real-Time 4G Location Tracking

Keep track of your vehicle with the compact and easy-to-install LK730 OBD GPS Vehicle Tracker. It plugs directly into a compatible vehicle’s OBD port, eliminating the need for complicated hardwiring.

Combining GPS, BeiDou and GLONASS satellite positioning with mobile-network connectivity, the LK730 provides real-time vehicle location, historical route information, geofencing and a range of configurable security alerts.

Key Features

• Real-time vehicle location tracking
• Historical route and travel-record viewing
• Customisable electronic geofences
• GPS, BeiDou and GLONASS satellite positioning
• Approximately 5-metre location accuracy under suitable conditions
• 4G LTE and GSM network-band support
• Vibration and movement alerts
• Overspeed alerts
• External power-disconnection alert
• Vehicle battery-voltage detection and alerts
• Blind-zone data reporting
• Configurable location-upload frequency
• Position requests through supported SMS commands
• Remote restart and factory-reset commands
• Remote software-upgrade support
• Compact plug-in design

Quick and Easy Installation

Unlike traditional hardwired vehicle trackers, the LK730 connects directly to a compatible OBD port. This provides a cleaner installation without cutting into the vehicle’s wiring.

1. Open the tracker’s SIM card cover.
2. Insert an activated and compatible micro-SIM card.
3. Make sure the SIM card’s PIN request has been disabled.
4. Connect the LK730 to the vehicle’s OBD port.
5. Set the administrator phone number using the supported SMS command.
6. Configure the correct APN for your SIM card provider.
7. Move the vehicle into an open area while the tracker obtains its first GPS location.

Real-Time Tracking and Location History

The LK730 allows you to view the vehicle’s current position through its supported tracking platform. Historical trajectory records provide a useful overview of previous journeys, while configurable reporting intervals allow location updates to be adjusted between 10 and 180 seconds.

When the tracker temporarily enters an area without mobile-network coverage, its blind-zone reporting feature helps manage location information once a connection becomes available again.

Vehicle Security Alerts

Receive useful alerts to help monitor unexpected activity and changes in the vehicle’s condition. Supported notifications include the following:

• Unexpected movement or vibration
• Vehicle speed exceeding a configured limit
• Loss of external vehicle power
• Abnormal vehicle battery voltage
• Movement outside a configured geofence

Alert availability and delivery may depend on the tracking platform, configuration, mobile network and SIM-card service.

Multi-Satellite Positioning

The LK730 uses GPS, BeiDou and GLONASS positioning systems to provide reliable vehicle location information. Under suitable outdoor conditions and in 3D positioning mode, the stated location accuracy is approximately five metres.

GPS performance may be reduced inside buildings, underground parking areas, tunnels or locations with a heavily obstructed view of the sky.

SIM Card Requirements

The tracker requires an activated Micro SIM card with compatible mobile data and SMS services.

• The SIM card must support a network band used by the LK730.
• Mobile data must be enabled.
• SMS service is required for SMS-based setup and commands.
• The SIM card must have sufficient credit or an active service plan.
• The SIM PIN request should be disabled before installation.
• The correct carrier APN must be entered during setup.

Technical Specifications

Supported Mobile-Network Bands

LTE bands:

B1, B2, B3, B4, B5, B7, B8, B12, B13, B18, B19, B20, B25, B26, B28, B34, B38, B39, B40, B41 and B66.

GSM bands:

850, 900, 1800 and 1900 MHz.

Care and Safety

• Keep the tracker dry and protected from liquids and excessive moisture.
• Do not expose it to excessively hot or cold environments.
• Do not drop, strike or violently shake the tracker.
• Clean it only with a soft, dry cloth.
• Do not use chemicals or detergents to clean the device.
• Do not paint, disassemble or modify the tracker.
• Use the tracker only for lawful purposes and with appropriate consent.

Important Information

This product provides location and alert information through satellite and mobile networks. Performance can be affected by GPS reception, mobile-network coverage, SIM-card configuration, platform availability and the tracker’s installation position.
