Oz Smart ZigBee Rotary Dimmer

Oz Smart ZigBee Rotary Dimmer

$49.99 AUD
$49.99 AUD
Sale Sold out
Tax included. Shipping calculated at checkout.
  • We use Australia Post Carbon Neutral Shipping: 2-5 Days $9.99, 1-3 Days $15 or StarTrack Premium $20
  • Order before Midday and we Dispatch the same day
  • Found a Cheaper Price we will Match it

SR-ZG2835RAC(AU) Oz ZigBee Rotary Smart Dimmer

The SR-ZG2835RAC(AU) Knob Smart Dimmer is a versatile and stylish solution for controlling the brightness of your lights with precision and ease. Designed for the modern smart home, this Zigbee-compatible dimmer combines traditional rotary control with advanced smart features, allowing you to seamlessly integrate it into your existing Zigbee network.

Key Feature:

  • ZigBee 3.0 Protocol: Advanced compatibility with the latest ZigBee 3.0 standard for seamless integration.
  • Neutral-Free Wiring: Simplified installation process without the need for a neutral wire.
  • Load Compatibility: Supports resistive, capacitive, and inductive loads, making it versatile for various lighting types.
  • Adjustable Brightness Settings: Set and adjust minimum brightness and startup brightness to suit your preferences.
  • Single Channel Output: Capable of controlling loads up to 350W.
  • Leading/Trailing Edge Dimming: Factory preset options available for precise control over different load types.
  • Multifunctional Control: ON/OFF control and light intensity adjustment directly via the knob or remotely through a ZigBee network.
  • Touchlink Commissioning: Pair with compatible ZigBee remotes and devices without a coordinator for quick and easy setup.
  • Universal Compatibility: Works with most ZigBee gateways and can bind up to 20 ZigBee green power switches.
  • Push Switch Input: Allows control via a standard AC push switch.

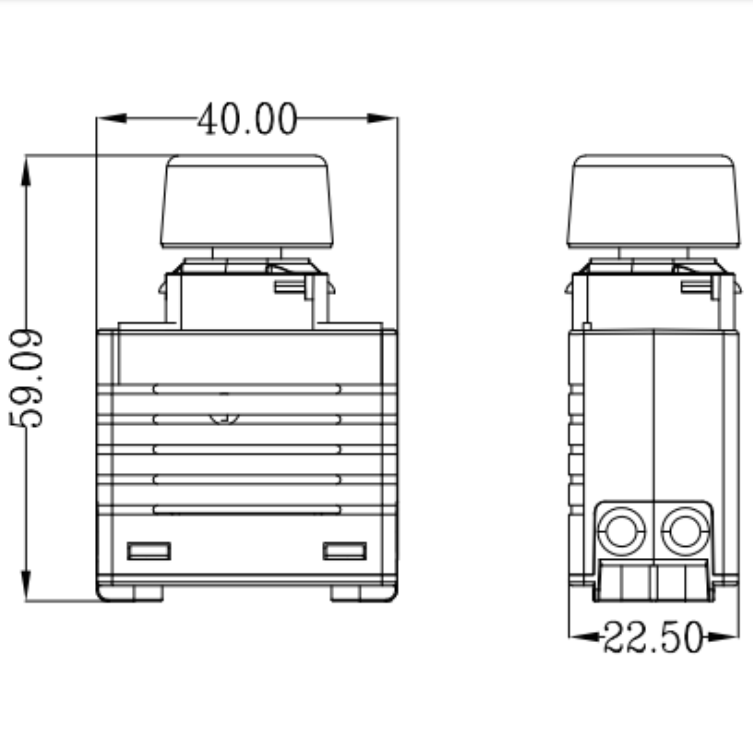

  • Compact Design: Fits standard Australian wall switch plates.
  • IP20 Waterproof Rating: Suitable for indoor use, providing durability and reliability.
  • OTA Firmware Updates: Automatically receive firmware updates from the ZigBee controller for the latest features.
  • Standby Power Consumption: <0.5W
  • Power Consumption Monitoring: Supported
  • Default Dimming Level on Power-On:
    • The dimmer retains the last brightness setting. For example, if set to 80% before turning off, it will resume at 80% when turned back on.
  • Memory Function (Restoring Last Dimming Level):
    • Yes, configurable via Home Assistant. Four power-on state options are available:
      1. Off
      2. On
      3. Switch
      4. Last state
  • Minimum Dimming Level: Supported
  • Maximum Dimming Level: Not supported
  • Adjustable Dimming Speed (Up/Down):
    • Speed adjustment is not directly supported, but the dimming curve can be modified.
  • Fade-in Speed (When Turning On): Supported
  • Fade-out Speed (When Turning Off): Supported

This dimmer is an ideal solution for smart home enthusiasts looking to upgrade their lighting system with advanced ZigBee technology and user-friendly features.



View full details

Customer Reviews

Based on 4 reviews
75%
(3)
0%
(0)
25%
(1)
0%
(0)
0%
(0)
L
Luke
Amazing amount of features in a tiny package

Dimmer suited for all kinds of resistive and inductive loads, like LED/incandescent lights and even fans. Configurable dimmer mode (leading/trailing edge), and even a LED "jump start" mode to help with switching on LED downlights at low brightnesses. ZigBee just works first time, and a nice backlight glow to show ZigBee status helps you find it in the dark. Awesome little piece of kit!

Zigbee2MQTT now works (written Jan 2025) out of the box with this dimmer, making it a perfect addition to home assistant. No external converters required.

G
Gerard Delower
Oz ZigBee Rotary Smart Dimmer

These are easy to install, they work well with Home assistant, like the design, will get more.

J
James Dymond
Good option to keep standard look and operation of light switches

These have been a great addition to our home automation setup and work well with Home Assistant and Zigbee2MQTT.

There are a few quirks to get them working via Zigbee2MQTT but the automated discovery works OK to expose the device in Home Assistant. To get full functionality there are two things you'll need to do in Zigbee2MQTT:
1. On the Bind tab of the device once paired, ensure LevelCtrl and OnOff are bound to the coordinator (this binding doesn't happen on discovery and means manual updates on the switch for on/off or brightness changes aren't reported back).
2. On the Dev Console tab, click Generate External Definition. This will get a temporary converter setup working for Home Assistant.

There is a fix for the above quirks coming in v20.29.0 for zigbee-herdsman-converters to support this dimmer natively in Zigbee2MQTT. One other thing that isn't mentioned in the product description is the ability to configure 'power on' behaviour. This can ensure lights using these dimmers in the house don't turn on should there be a power failure as you can tell the dimmer to use the last set state on next power cycle.

Overall they work well in our house and keep a stock look and feel to our switches. They are also easy to locate at night as they have a dim blue LED backlight.

S
Simon Eatough
A good option with compromises

Pro - very responsive with Home assistant via Z2M, backlit dial means its easy to find in the dark
Cons - Not compatible with Zigbee2MQTT without making a converter, manual control of the device is not reflected in Z2M or Home Assistant
