INTESIS Mitsubishi FD and VRF systems

INTESIS Mitsubishi FD and VRF systems

Regular price $485.00 AUD
Regular price Sale price $485.00 AUD
Sale Sold out
Tax included. Shipping calculated at checkout.
  • We use Australia Post Carbon Neutral Shipping: 2-5 Days $9.99, 1-3 Days $15 or StarTrack Premium $20
  • Order before Midday and we Dispatch the same day
  • Found a Cheaper Price we will Match it

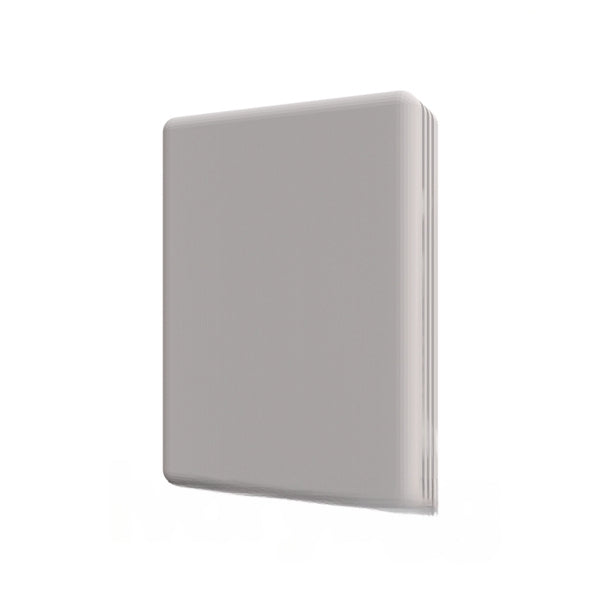

Mitsubishi Heavy Industries FD and VRF systems to AC Cloud Control (WiFi) Interface - 1 unit

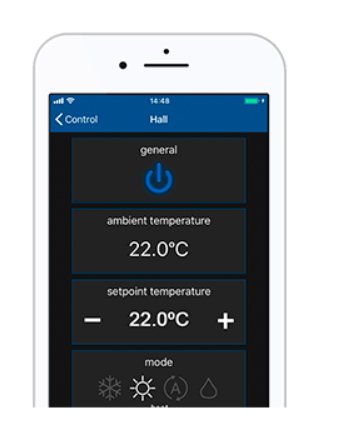

This model allows you to control your AC unit from the AC Cloud app and also integrates with HomeAssistant

The gateway is wired directly to an indoor unit. This allows not only the control of the main AC functions such as operating mode, fan speed, temperature setpoint, but the monitoring of errors and alarms.

Mitsubishi Heavy Industries (MHI) offered air conditioning systems, including both FD (Floor Standing Ductless) units and VRF (Variable Refrigerant Flow) systems, which could be integrated with AC Cloud Control using WiFi interfaces for remote control and monitoring.


  • Remote Control and Monitoring: Mitsubishi Heavy Industries designed their AC Cloud Control system to enable users to remotely control and monitor their air conditioning systems. This functionality allows users to manage their HVAC systems using smartphones, tablets, or computers from anywhere with an internet connection.


  • Mobile App Control: MHI typically provides a dedicated mobile app that users can download to their mobile devices. This app allows users to control various aspects of their Mitsubishi Heavy Industries FD and VRF systems, including temperature adjustments, mode settings (cooling, heating, fan-only, etc.), and fan speed.

  • Scheduling: Users can create customized schedules within the app, specifying when their HVAC systems should turn on, off, or adjust temperature settings. Scheduling helps optimize energy usage and maintain comfort based on daily routines.

  • Energy Efficiency: Some Mitsubishi Heavy Industries systems with AC Cloud Control may provide energy consumption data and recommendations to help users make more energy-efficient choices and reduce operating costs.

  • Filter Status: The app may offer notifications regarding the status of air filters, alerting users when it's time to clean or replace them. Proper filter maintenance is essential for indoor air quality and system efficiency.

  • Diagnostic Alerts: In case of system issues or malfunctions, diagnostic alerts can be sent to users through the mobile app. These alerts often include error codes and other information that can be shared with HVAC technicians for remote troubleshooting.

  • Compatibility: Mitsubishi Heavy Industries aims to make AC Cloud Control compatible with various FD and VRF air conditioning systems they offer. However, it's crucial to verify compatibility with specific models and requirements.

  • Multi-Zone Control: For VRF systems, users with multiple indoor units can often control each zone individually or as groups, allowing for personalized comfort and energy management.

Technical Details

Enclosure: ABS (UL 94 V-0). 2,5 mm thickness

Dimensions: 70 x 100 x 28 mm

Weight: 100 g

Colour: White

AC Connector: 14V, 110mA typical

Power Supply: 12DCV, 100mA

Radio Parameters: RF Frequency range: 2412 to 2484 MHZ Output power (typical): 14/20 dBm

WIFI: 802.11 b/g/n (802.11n up to 150 Mbps)

Mounting: Wall

LED indicators: 1 x Device status

Operating Temperature: From 0oC to 40oC

Operating Humidity: <93% HR, no condensation

Stock Humidity: <93% HR, no condensation

RoHS Conformity: Compliant with RoHS directive (2011/65/CE).

Certifications: CE conformity to EMC directive (2014/53/EU) ¥ EN 62368-1:2014 ¥ CSA/UL 62368-1:2014 ¥ AS/NZS 62368.1:2018 ¥ EN 300 328 V2.1.1 ¥ EN 303 446-1 V1.2.0 ¥ Regulations: FCC/IC. Standards: Title 47 CFR Part 15B ICES-003 (Issue 6)


Technology Data
Mounting Surface
product_subtype Interfaces

Compatibility checker

Intesis product information page & Datasheet
