INTESIS AC Adapter Connect to Vera Smart Home. Smart Air conditioning
INTESIS AC Adapter Connect to Vera Smart Home. Smart Air conditioning
INTESIS AC Adapter Connect to Vera Smart Home. Smart Air conditioning

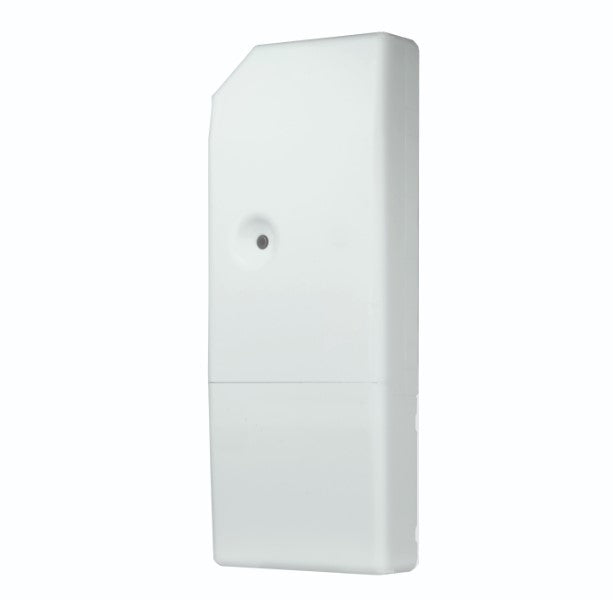

INTESIS AC Adapter

  • Sale
  • Regular price $399.99

    Your Order will be Dispatched within 24hrs



Product shipping info: We use Australia Post. Prices are: Standard for $9.99 or Express for $15, Airmail to NZ for $20 Worldwide $30!

The gateway is wired directly to an indoor unit. This allows not only the control of the main AC functions such as operating mode, fan speed, temperature setpoint, but the monitoring of errors and alarms.

The Intesis WiFi gateways have been specifically designed to be the best AC integration solution for Home Automation Systems.

Communications are based on a simple ASCII protocol that can be easily implemented, in the form of a driver, into Home Controllers or Smart Hubs. With drivers already available from many Home Automation platforms on the market, Air Conditioning units can be easily integrated and controlled.

FEATURES

  • Intuitive web interface for the WiFi configuration.
  • b/g/n WiFi standards supported.
  • Quick and easy installation (plug and configure the WiFi).
  • External power not required.
  • Simultaneous control of the AC unit by the IR remote controller and by Home Automation systems.
  • Integration with any IP Home Automation System thanks to the open ASCII protocol.
  • Compatible with the drivers available on the Intesis website

Technical Details

Specification

Enclosure: (UL 94 HB). 2,5 mm thickness

Dimensions: 70 x 108 x 28 mm

Weight: 80g

Colour: White

Power supply: 12V, 60mA typical

Doesn't require external power supply (supplied by the AC Unit):

Radio Parameters:

RF Frequency range: 2412 to 2497 MHz

Output power (average): 8 dBm (Modulated signal at antenna port; 11Mb/Sec.)

Mounting: Wall

LED indicators: 1 x Device status

Operating Temperature: From 0¼C to 40¼C

Operating humidity: <93% HR, no condensation

Stock humidity: <93% HR, no condensation

RoHS conformity Compliant with RoHS directive (2011/65/EU)s

Please select your brand-specific Intesis Adapter from links above.

Intesis develop drivers for other home automation systems, such as AMX, Push, Control 4, Crestron, Lutron, Elan, RTI, URC, Iridium.

Click on the links to get access to the driver's page:

IntesisBox - VERA

IntesisBox - ELAN
IntesisBox – Control 4
IntesisBox – Crestron
IntesisBox - Iridium
IntesisBox - AMX
IntesisBox - RTI

Product Details

We suggest watching IntesisBox Adapter Configuration (video)

Compatibility

 To check if your Mitsubishi Electric unit is compatible please read this document:

 IntesisBox® ME-AC-xxx-1 AC Compatibility List

 To check if your Daikin unit is compatible please read this document:

IntesisBox® DK-RC-xxx-1 AC Compatibility List

 To check if your Mitsubishi Heavy Industries VRF Adapter unit is compatible please read this document:

IntesisBox® MH-RC-xxx-1 AC Compatibility List

To check if your Panasonic unit is compatible please read this document:

IntesisBox® PA-RC2-xxx-1 AC Compatibility List

 To check if your Toshiba unit is compatible please read this document:

IntesisBox® TO-RC-xxx-1 Toshiba AC Compatibility List

To check if your Fujitsu unit is compatible please read this document:

IntesisBox® FJ-RC-xxx-1 Fujitsu AC Compatibility List

Please note: If you can't find your model number on this list contact office for help.

Product Support

Manuals:

 IntesisBox - Vera Integration Guide

 User manual
 Installation manual
⇒ WMP ASCII Protocol Specs
 WMP Configuration Tool

Videos / Youtube:

⇒ IntesisBox WMP WFi Configuration IntesisBox WMP WFi Configuration

Technical Specifications

Connection type
 Wired, Wi-Fi
Power
14V, 110mA typical
Doesn’t require an external power supply (supplied by the AC Unit)
Colour
 White
Radio Parameters
RF Frequency range: 2412 to 2497 MHz
Output power (average): 8 dBm (Modulated signal at antenna port; 11Mb/Sec.)
Operation Humidity
<93% HR, no condensation
Operation Temperature
From 0ºC to 40ºC
Storage Temperature
From 0ºC to 40ºC
Weight
 0.08Kg
Housing
ABS (UL 94 HB). 2,5 mm thickness
Compliance
Compliant with RoHS directive (2011/65/EU)
