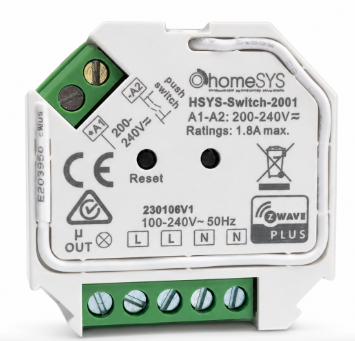

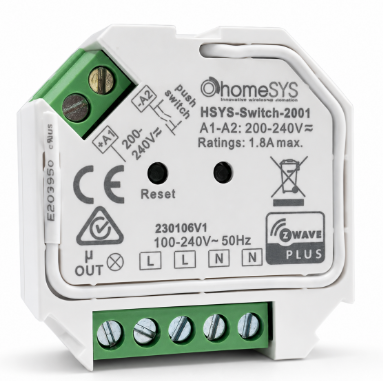

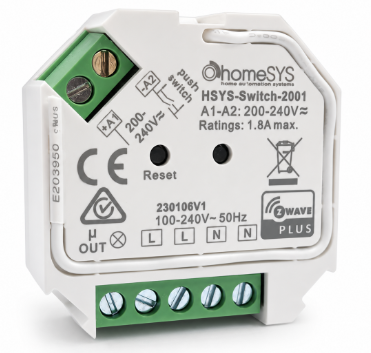

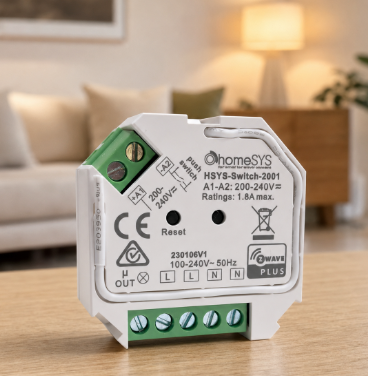

HomeSYS Z-Wave In-Wall Switch
Add reliable smart on/off control to compatible lighting with the HomeSYS HSYS-Switch-2001 Z-Wave In-Wall Switch. This compact module installs behind a compatible wall switch, allowing the connected load to be operated locally or through a compatible Z-Wave controller and smart home automation system.
Designed for Australian and New Zealand Z-Wave networks, the switch operates on the 921.42 MHz ANZ frequency. As a permanently powered Z-Wave device, it can also route compatible communications to help improve the reliability and coverage of your Z-Wave mesh network.
Key Features
- Smart on/off control for compatible lighting loads
- Compatible with 921.42 MHz ANZ Z-Wave networks
- Supports Z-Wave Plus functionality
- Supports S2 unauthenticated security
- OTA support for wireless firmware updates
- Acts as a powered Z-Wave network repeater
- Compatible with an external 8-230V push-button switch
- Configurable behaviour following a power interruption
- Reports load-status changes to supported Z-Wave controllers
- Built-in over-temperature protection

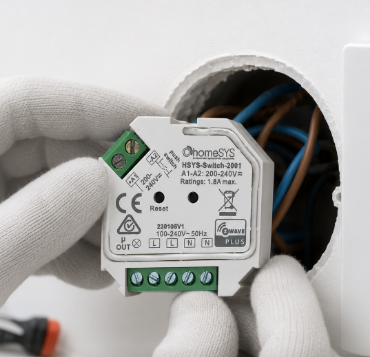

- Compact design for installation behind a compatible wall switch
Smart Lighting Control
The HSYS-Switch-2001 provides straightforward on/off control of a connected lighting load. It can be controlled from a compatible Z-Wave controller or locally using a connected momentary push-button switch.
Its power recovery behaviour can be configured to keep the load switched off, switch it on or restore its previous state following a power interruption.
Z-Wave Network Integration
The switch can be included in a compatible Z-Wave network alongside certified devices from other manufacturers. Inclusion is activated by placing the controller into inclusion mode and pressing the switch's action button three times.
Because the module is permanently powered, it can function as a routing node within the Z-Wave mesh. Association Group 1 Lifeline supports up to five nodes for status, reset and safety notifications.
Compatible Load Types
| Load Type | Maximum at 220V | Maximum at 110V |
|---|---|---|
| LED lamps with transformers | 200W | 100W |
| LED drivers | 200W | 100W |
| Incandescent and high-voltage halogen lighting | 400W | 200W |
| Low-voltage halogen lighting with electronic transformers | 200W | 100W |
The maximum number of LED lamps or drivers may vary depending on their design, power factor and individual rated power. Always remain within the specified maximum load.
Built-In Temperature Protection
The switch contains internal temperature monitoring. If an over-temperature condition of approximately 95°C is detected, the device supports an emergency shutoff notification through its Z-Wave Lifeline association group.
Technical Specifications
| Brand | HomeSYS |
|---|---|
| Model | HSYS-Switch-2001 |
| Device Type | Z-Wave in-wall on/off switch |
| Z-Wave Frequency | 921.42 MHz (ANZ) |
| Input Voltage | AC 100-240V |
| Output Voltage | AC 100-240V |
| Maximum Output Current | 1.8A |
| External Switch Input | 8-230V push-button switch |
| Z-Wave Security | S2 Unauthenticated |
| Wireless Range | Up to 100m outdoors; approximately 40m indoors |
| Operating Temperature | 0°C to 40°C |
| Relative Humidity | 8% to 80% |
| Dimensions | 45.5 × 45 × 20.3 mm |
Important Compatibility Information
- A compatible 921.42 MHz ANZ Z-Wave controller or hub is required.
- This device provides on/off switching and does not dim connected lighting.
- An active and neutral electrical connection is required.
- Use only compatible loads within the specified ratings.
- Actual wireless range depends on the building and network environment.
- The device must not be exposed to moisture.
