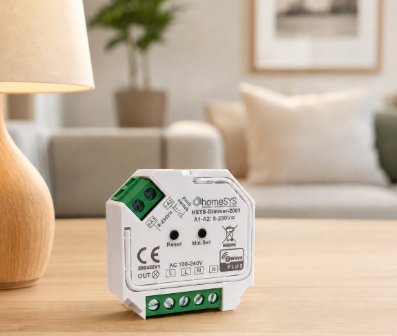

HomeSYS Z-Wave Dimmer
HomeSYS Z-Wave Dimmer
Couldn't load pickup availability
- We use Australia Post Carbon Neutral Shipping: 2-5 Days $9.99, 1-3 Days $15 or StarTrack Premium $20
- Order before Midday and we Dispatch the same day
- Found a Cheaper Price we will Match it

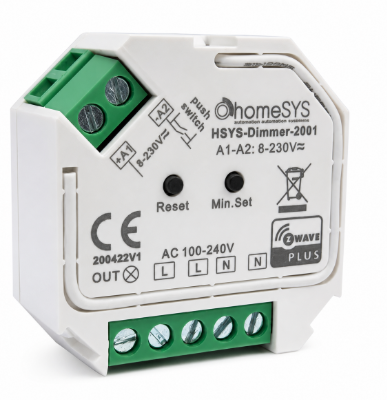

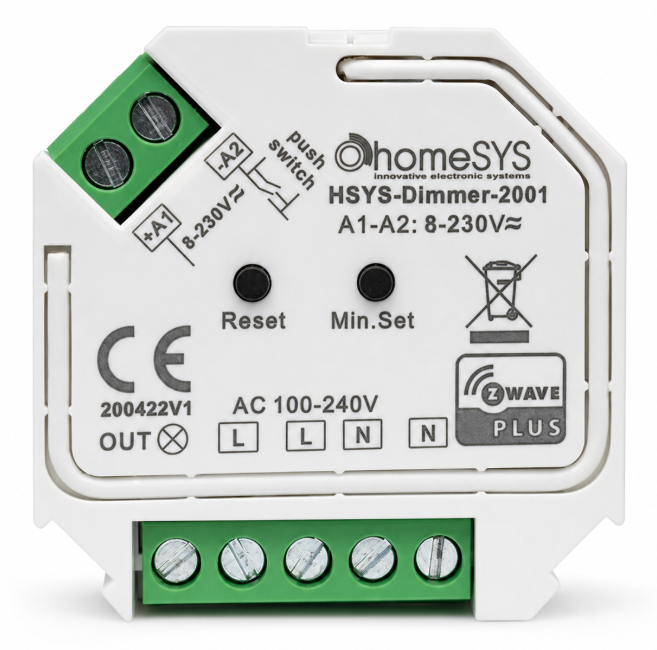

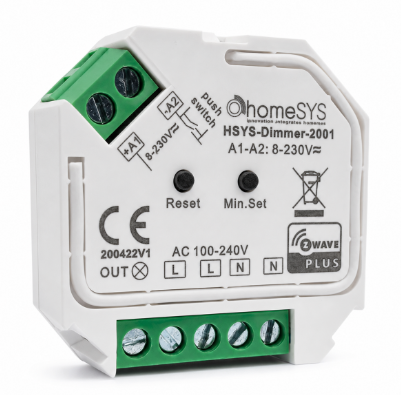

HomeSYS Z-Wave In-Wall Dimmer

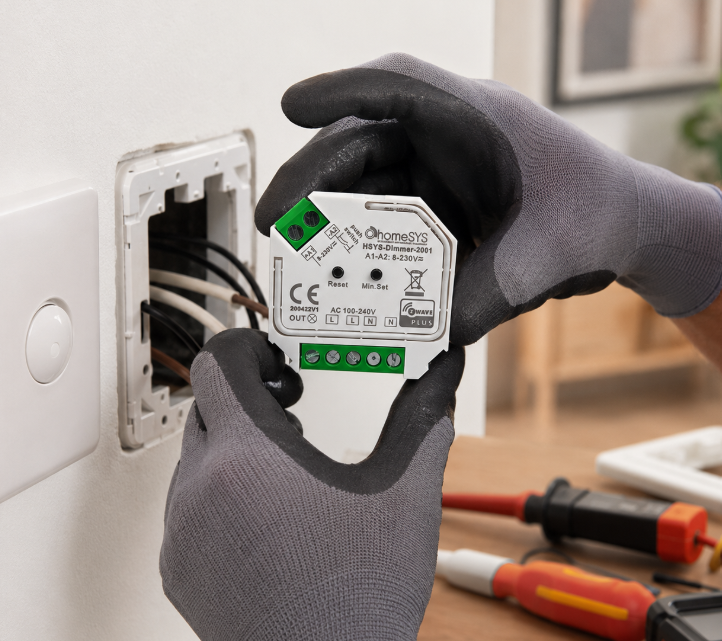

Add reliable smart lighting control to your home with the HomeSYS HSYS-Dimmer-2001 Z-Wave In-Wall Dimmer. Installed behind a compatible wall switch, this compact module lets you switch connected lighting on and off, adjust its brightness and control it through a compatible Z-Wave controller or automation platform.
Designed for Australian and New Zealand Z-Wave networks, the dimmer operates on the 921.42 MHz Z-Wave frequency. It also functions as a powered Z-Wave repeater, helping compatible devices communicate more reliably across your network.
Key Features
Smart on/off control and brightness adjustment
- Compatible with 921.42 MHz ANZ Z-Wave networks
- Supports Z-Wave Plus functionality
- Supports S2 unauthenticated security
- OTA support for wireless firmware updates
- Acts as a powered Z-Wave network repeater
- Compatible with an optional 8–230V push-button switch
- Adjustable minimum brightness setting
- Configurable startup brightness
- Selectable trailing-edge or leading-edge dimming
- Choice of linear or logarithmic dimming curve
- Configurable fade time
- Compact in-wall design measuring only 45.5 × 45 × 20.3 mm
Flexible Lighting Control
The HSYS-Dimmer-2001 can be operated through your Z-Wave controller or with a connected momentary push-button switch. A short press can switch the connected light on or off, while supported Z-Wave controls can be used to adjust the brightness.
Minimum and startup brightness levels can be configured to improve performance with compatible dimmable lamps. Advanced settings also let you select the dimming method, change the dimming curve and adjust the fade duration.
Compatible Load Types
| Load Type | Maximum Load |
|---|---|
| Dimmable LED lamps | 200W at 220V |
| Dimmable LED drivers | 200W at 220V |
| Incandescent and high-voltage halogen lighting | 400W at 220V |
| Low-voltage halogen lighting with electronic transformers | 200W at 220V |
The number of compatible LED lamps or drivers may be limited by their design, power factor and individual power rating. Connected lamps and drivers must be dimmable and compatible with the selected dimming method.
Z-Wave Network Integration
The dimmer can be included in a Z-Wave network with certified devices from other manufacturers. Once powered, inclusion can be activated by placing the controller into inclusion mode and pressing the dimmer’s action button three times.
As an always-powered Z-Wave device, the dimmer can route compatible Z-Wave communications and help extend the reliability of the mesh network. Association Group 1 Lifeline supports up to five nodes for status and notification reporting.
Safety Protection
The dimmer includes internal temperature monitoring. If its internal temperature rises above 90°C, it can issue an emergency shutoff notification through the Z-Wave Lifeline Association group.
Technical Specifications
| Model | HSYS-Dimmer-2001 |
|---|---|
| Device Type | Z-Wave in-wall light dimmer |
| Z-Wave Frequency | 921.42 MHz (ANZ) |
| Input Voltage | AC 100–240V |
| Output Voltage | AC 100–240V |
| Maximum Output Current | 1.8A |
| External Switch Input | 8–230V push-button switch |
| Z-Wave Security | S2 Unauthenticated |
| Wireless Range | Up to 100m outdoors; approximately 40m indoors |
| Operating Temperature | 0°C to 40°C |
| Relative Humidity | 8% to 80% |
| Dimensions | 45.5 × 45 × 20.3 mm |
Important Compatibility Information
- A compatible 921.42 MHz ANZ Z-Wave controller or hub is required.
- This device requires an active and neutral electrical connection.
- Use only compatible dimmable lamps, drivers or transformers.
- Actual wireless range depends on the building and network environment.
- Not suitable for exposure to moisture.
