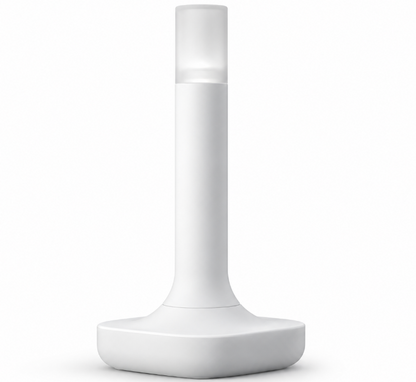

Home Assistant Connect ZBT-2

Home Assistant Connect ZBT-2

Bring Zigbee or Thread devices into Home Assistant with the official Connect ZBT-2 adapter. Connect it to your Home Assistant system by USB-C, choose the protocol you want to use, and follow the setup wizard to create a new network or migrate an existing one.

With an optimised external antenna and updated Silicon Labs MG24 chip, ZBT-2 is designed to provide a stable connection for your smart home devices. Its faster adapter connection also improves responsiveness compared with the previous Connect ZBT-1.

Key features

• Choose Zigbee or Thread: Use it as a Zigbee adapter or dedicate it to Thread for Matter-over-Thread devices.
• Made for Home Assistant: Guided setup, one-click updates and migration tools make it straightforward to get started or upgrade from an older adapter.
• Optimised antenna: The external antenna and base are designed for reliable 2.4 GHz connectivity.
• Zigbee2MQTT compatible: Also used with Zigbee2MQTT by customers who prefer that setup.
• Open design: Easy to open, with accessible pins and pads for those who like to tinker.

Which protocol should I choose?

Choose Zigbee to connect Zigbee devices through Home Assistant. Choose Thread if you want to connect Matter-over-Thread devices. One ZBT-2 runs one protocol at a time; to run separate Zigbee and Thread networks, you’ll need a dedicated adapter for each.

Matter-over-Wi-Fi devices do not require the ZBT-2 for their Wi-Fi connection. Compatibility and available features can vary by device.

Specifications

• Supported protocols: Supports Zigbee or Matter-over-Thread (one protocol at a time).
• Chipset: Silicon Labs MG24; ESP32-S3 USB-serial bridge
• Connection and power: USB-C, 5 V DC, 500 mA
• Frequency: 2400–2483.5 MHz
• Dimensions: 83 × 83 × 179 mm
• Device weight: 157 g
• Use: Indoors only

What’s in the box?

• Connect ZBT-2 antenna and base
• 1.5 m USB-C cable
• Quick-start guide
