Hikvision

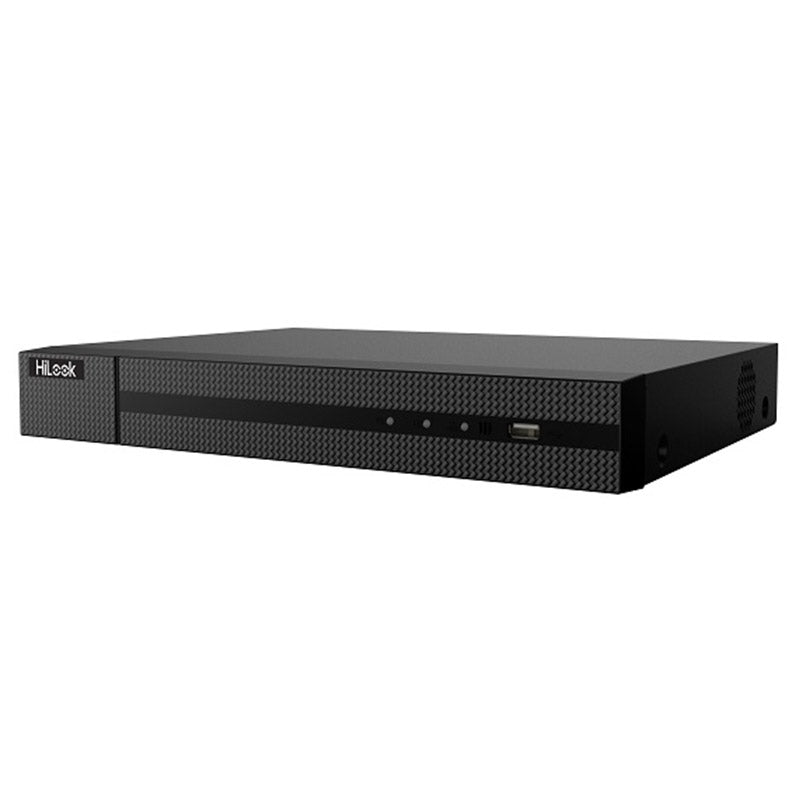

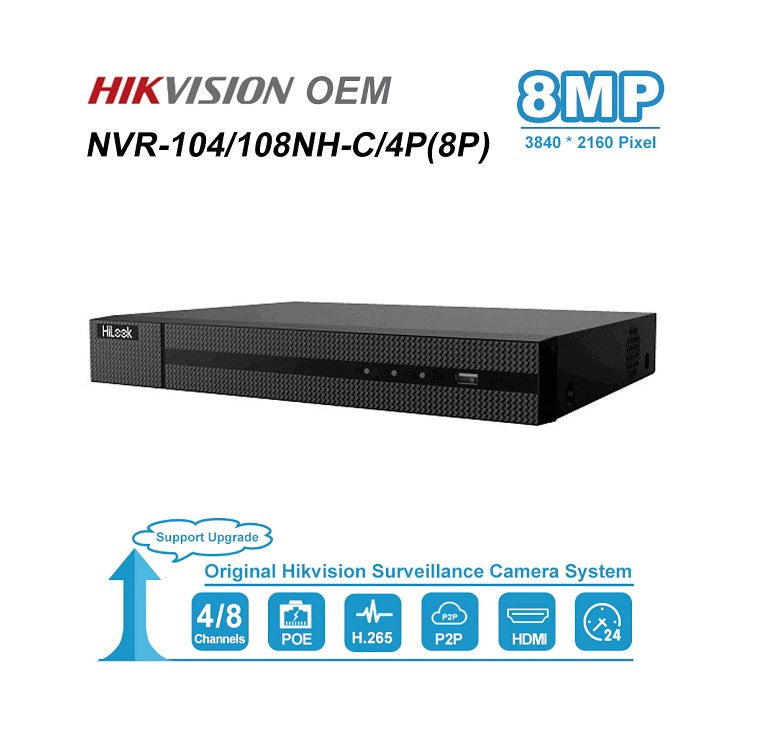

Hikvision Hilook NVR 4ch

Hikvision Hilook NVR 4ch

Regular price $294.99 AUD
Regular price Sale price $294.99 AUD
Sale Sold out
Tax included. Shipping calculated at checkout.
  • We use Australia Post Carbon Neutral Shipping: 2-5 Days $9.99, 1-3 Days $15 or StarTrack Premium $20
  • Order before Midday and we Dispatch the same day
  • Found a Cheaper Price we will Match it

HILOOK is a Hikvision brand

Hikvision has introduced them as a domestic video surveillance system.

They are providing very cost-effective, easy to use and reliable products and service. HiLook have been designed to work with wide range of products.

  • ANR technology enhances storage reliability when the network is disconnected
  • H.265/H.264/H.264+ video formats

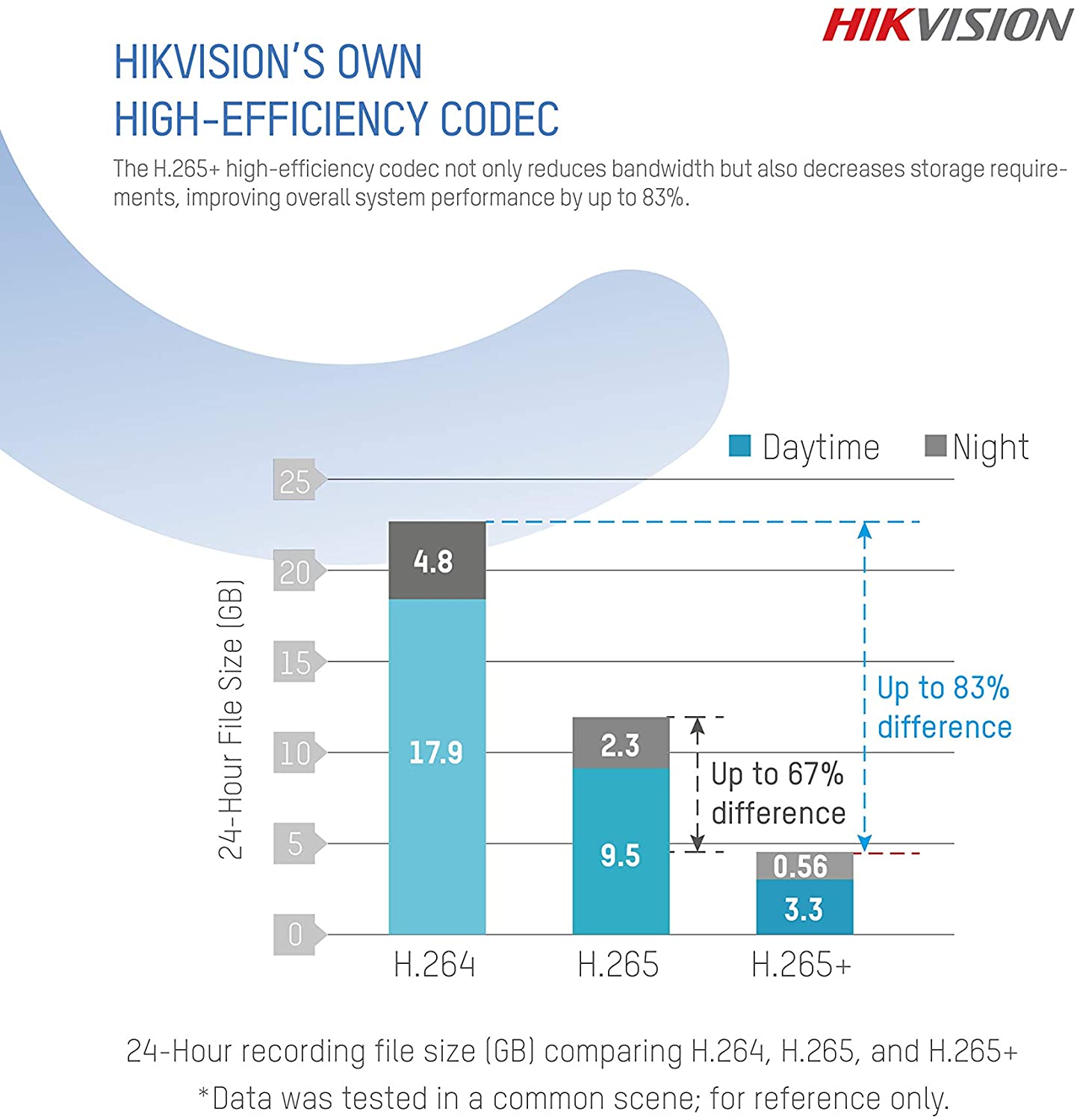

  • Storage space effectively saved by 50% to 70% with the use of H.264+ decoding format
  • VCA detection alarm is supported
  • Smart search for the selected area in the video; and smart playback to improve the playback efficiency

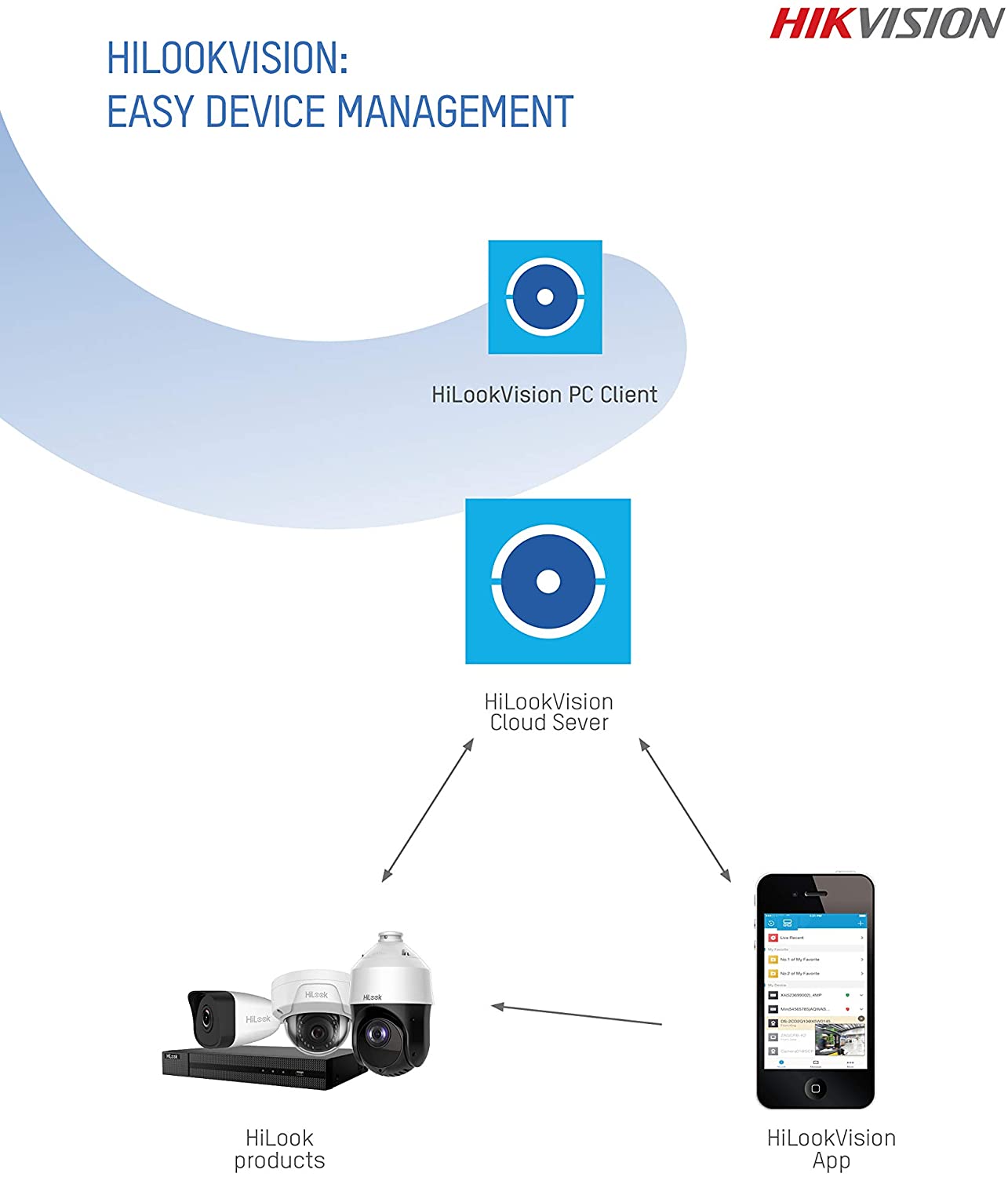

  • Hik-Connect for easy network management

Product Details

Video/Audio Input

  • IP Video Input4-ch Up to 8 MP resolution
  • Two-Way Audio Input1-ch, RCA (2.0 Vp-p, 1 k Ω)

Video/Audio Output

  • HDMI/VGA OutputHDMI:1-ch, 4K (3840 × 2160)/30Hz, 1920 × 1080p/60Hz, 1600 × 1200/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz; HDMI/VGA simultaneous output VGA:1-ch, 1920 × 1080p/60Hz, 1600 × 1200/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz ;HDMI/VGA simultaneous output

Audio Output

  • 1-ch, RCA (Linear, 1 KΩ)

Recording Resolution

  • 8 MP/6 MP/5 MP/4 MP/3 MP/1080p/UXGA /720p/VGA/4CIF/DCIF/ 2CIF/CIF/QCIF

Decoding

Synchronous Playback

  • 4-ch

Decoding Format

  • H.265/H.265+/H.264/H.264+/MPEG4

Live View/Playback Resolution

  • 8 MP/6 MP/5 MP/4 MP/3 MP/1080p/UXGA /720p/VGA/4CIF/DCIF/ 2CIF/CIF/QCIF

Capability

  • 1-ch @ 8 MP / 4-ch @ 1080p

Hard Disk

  • Not Installed

SATA

  • 1 SATA interface

Capacity

  • Up to 6TB capacity for each disk

Network Management

Network Protocols

  • TCP/IP, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, SMTP, NFS, iSCSI, UPnP™, HTTPS

Product Support

Manuals:

⇒ Manual_of_Network_Video_Recorder (Size: 15197KB)

⇒ Datasheet (Size: 394KB)

Technical Specifications

POE Interface
4, RJ-45 10/100 Mbps self-adaptive Ethernet interface
Video Compression
Main Stream: H.265+/H.265/H.264+/H.264
Sub Stream: H.265/H.264/MJPEG
Two-way audio input:
1-ch, RCA (2.0 Vp-p, 1kΩ)
IP video input:
4-ch
Communication Interface 1 RJ45 10M/100M self-adaptive Ethernet Port
Power
100 to 240 VAC, 50 to 60 Hz
Power Consumption
≤15 W
Network Interface:
1RJ-45 10/100/1000Mbps self-adaptive Ethernet interface
Application
Indoor
Working Temperature:
-10 ~ 55 °C
Working Humidity:
10 % ~ 90 %
Weight
≤ 3 Kg
Housing
Metal & ABS
Dimensions
315 × 240 ×48 mm
