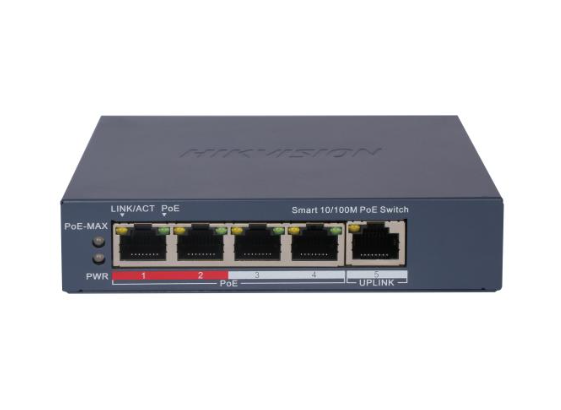

Hikvision 4-Port PoE Switch

4-Port Fast Ethernet Smart PoE Switch

Enhance your network with the 4-Port Fast Ethernet Smart PoE Switch, designed for efficient power and data transmission. Ideal for powering and connecting IP cameras and other PoE-enabled devices, this switch offers robust features for reliable performance and easy management.

Key Features:

• Ports: 4 × 10/100 Mbps PoE ports, 1 × 10/100 Mbps RJ45 port
• PoE Power Budget: 60W
• Max Port Power: 30W per port
• Surge Protection: 6 KV protection for PoE ports
• Long Range PoE Transmission: Up to 300 meters (performance may vary based on camera model and cable condition)
• VLAN Support: IEEE 802.1Q VLAN for network scale planning and health improvement
• PoE Watchdog: Automatically detects and restarts unresponsive cameras
• Loop Prevention: Supports STP/RSTP to avoid network loops
• Cable Detection: Helps locate cable failures
• VIP Ports: Prioritizes data on VIP ports when bandwidth is insufficient
• Port Isolation: Enhances network security by isolating ports within a group

Specifications:

• Shell Material: Metal
• Net Weight: 0.26 kg (0.573 lb)
• Gross Weight: 0.75 kg (1.65 lb)
• Dimensions (W × H × D): 121.1 mm × 27.6 mm × 83.1 mm (4.77'' × 1.09'' × 3.27'')
• Operating Temperature: 0 °C to 40 °C (32 °F to 104 °F)
• Storage Temperature: -40 °C to 85 °C (-40 °F to 185 °F)
• Operating Humidity: 5% to 95% (no condensation)
• Power Supply: 54VDC, 1.2A
• Max Power Consumption: 65 W
• Power Consumption in Idle: 0.9 W

Network Parameters:

• MAC Address Table: 2K
• Switching Capacity: 1 Gbps
• Packet Forwarding Rate: 0.74 Mpps
• Internal Cache: 768 Kbits

PoE Specifications:

• PoE Standard: IEEE 802.3af, IEEE 802.3at
• PoE Power Pin: End-span: 1/2(-), 3/6(+)
• PoE Ports: Ports 1 to 4

Software Functions:

• Link Aggregation: Supports static link aggregation for load balancing, bandwidth expansion, and port protection
• VLAN: Configurable VLAN ID from 1-4094, supports up to 32 VLANs, Trunk and Access port modes

Installation:

• Mounting Options: Desk-Mounted, Wall-Mounted

Upgrade your network with the reliable and feature-rich 4-Port Fast Ethernet Smart PoE Switch, designed to meet your connectivity and power needs.

• 4 × 10/100 Mbps PoE port,1 × 10/100 Mbps RJ45 port
• 6 KV surge protection for PoE ports.
• Total PoE Power Budget 60W
• Support 802.1Q VLAN
• Support PoE watchdog to detect and restart the cameras that do not respond
• Support STP/RSTP Loop prevention
• Support cable detection to locate failure
• Up to 300 m Long Range PoE Transmission
