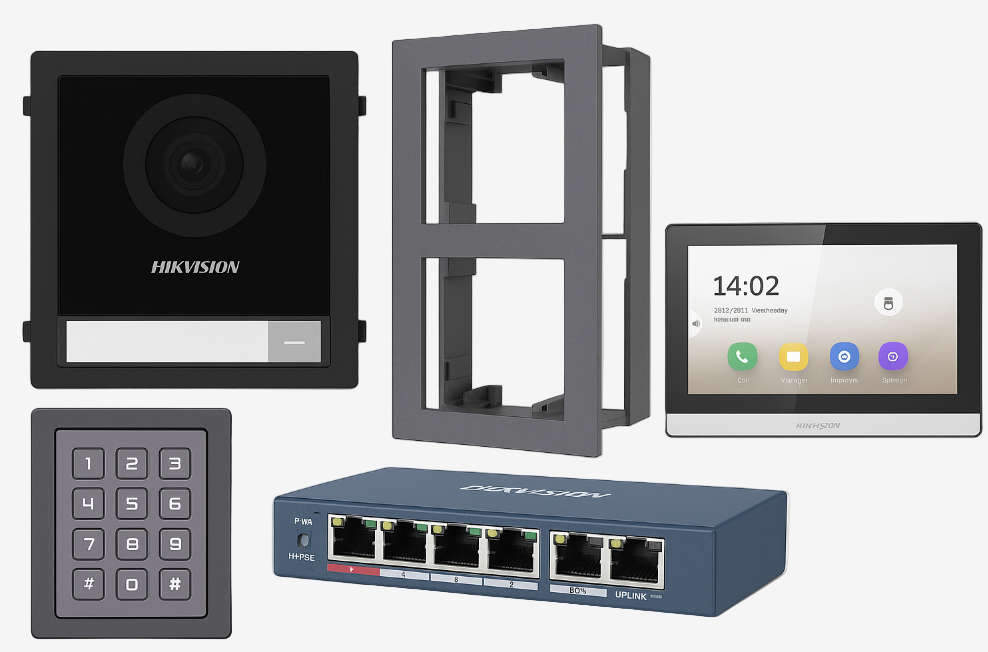

Hikvision 2nd Gen IP Intercom Kit

  • Sale
  • Regular price $849.99


Product shipping info: We have Flat Rate Shipping of $10 per Order in Australia with 100% Carbon Neutral Courier Service and Eco Friendly Packaging (if available). We ship Worldwide for $20!

The Hikvision 2nd Generation Video intercom Package. Flexible Intercom and now even easier to install!

The Hikvision 2nd Generation offers a flexible modular range of IP intercoms. The HIK-KD8003-IME1 is a door station with a 2MP HD camera which supports up to 8 extension modules. Being a modular and customisable design, this allows the SI to create an entry door panel consisting of one or all the following options; electronic tenant directory, digital keypad, nametag, RFID reader and display modules.

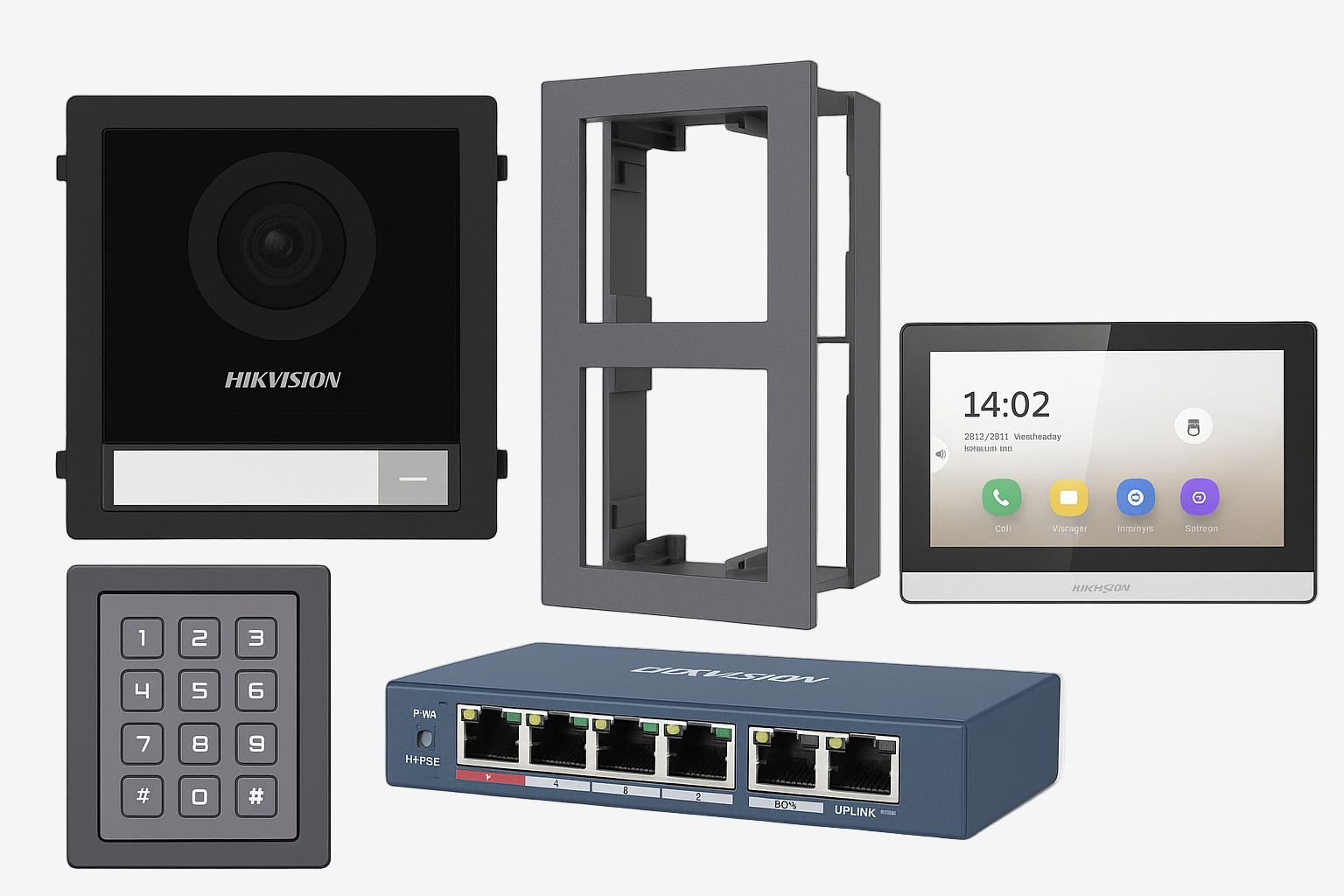

Our Package includes the following:



  • Hikvision 2nd Gen IP Intercom DS-KD8003-IME1 Door Station with Camera, 1x Button, IP65, 12VDC/POE
  • Hikvision Gen2 DS-KD-ACW2 Video Intercom Surface Mount Housing – 2 Module
  • Hikvision Gen2 DS-KD-KP Video Intercom Keypad Module
  • Hikvision DS-3E0105P-E 4 Port Unmanaged PoE Switch, 1*100M Uplink, 802.3af/at, 58W
  • Hikvision DS-KH6320-WTE1 Gen2 Video Intercom 7-Inch Touch Screen Indoor Room Station


DOOR STATION

  • IP65 rating
  • H.264 video compression
  • -40 to +60 degrees Celsius operating temperature
  • Dimensions: 98 x 99.8 x 43.9mm
  • 2MP HD video intercom function
  • Access control function
  • Noise suppression and echo cancellation
  • Low illumination
  • Tampering alarm supported
  • Fisheye camera with IR supplement light
  • Supports up to 8 sub-modules’
  • Nametag customisation
  • Easy to expand

Data Sheet

User Manual

SURFACE MOUNT MODULE

  • Hikvision Gen2 Video Intercom Door Station (DS-KD8003-IME1) support up to an additional 8 Modules. This DS-KD-ACW2 surface mount housing allows surface mounting of 2 modules.

Data Sheet



KEYPAD MODULE

  • Hikvision DS-KD-KP Video Intercom Keypad Modular Video connects to the DS-KD8003-IME1 Door Station units via the supplied RS485 leads and provides Code / PIN entry to the system. The Code / PIN allows calling of individual apartments as well as unlocking of the door via PIN.

User Manual

Hikvision 4 Port Web Managed PoE Switch

  • The Hikvision HIK-3E0105P-E is an unmanaged switch that requires no configuration and has 4 10/100Mbps PoE (Power over Ethernet) ports and 1 100Mbps port for uplink. It can automatically detect and supply power to all IEEE 802.3af/at compliant powered devices. With its Extended Transmission mode feature, this switch can extend PoE range from 100m to 250m by decreasing the throughput to 10Mbps.

Data Sheet

Hikvision 7 Inch Video Monitor

  • DS-KH6320-WTE1, 7“ Touch-Screen Indoor Station, 7-inch Colorful TFT LCD, display resolution: 1024 * 600;10/100Mbps Ethernet;standard PoE/ 12 VDC.TF card, max 32G with Wifi



Wiring instructions
1. ethernet cable from Door Station to Poe Switch
2. ethernet cable from the monitor to Poe Switch
3. ethernet cable Poe Switch to the modem (if you wish to set up remote communication)

Options for exit button, door strike etc sold separately and will require a separate power supply.
