CoolLinkHub & Cool Plug A/C

  • Sale
  • Regular price $500.00


Order your products today choose express shipping and receive your package between and

Quick Overview

CoolPlug and CooLinkHub are CoolAutomation gateway solution to help you remotely access and control Multi-split and split air conditioning systems. The solution enables simple integration with Home Automation and Smart Home devices. The gateway supports HVAC professionals striving to deliver a great customer experience and Home Automation integrators needing to save time on complex HVAC integration.

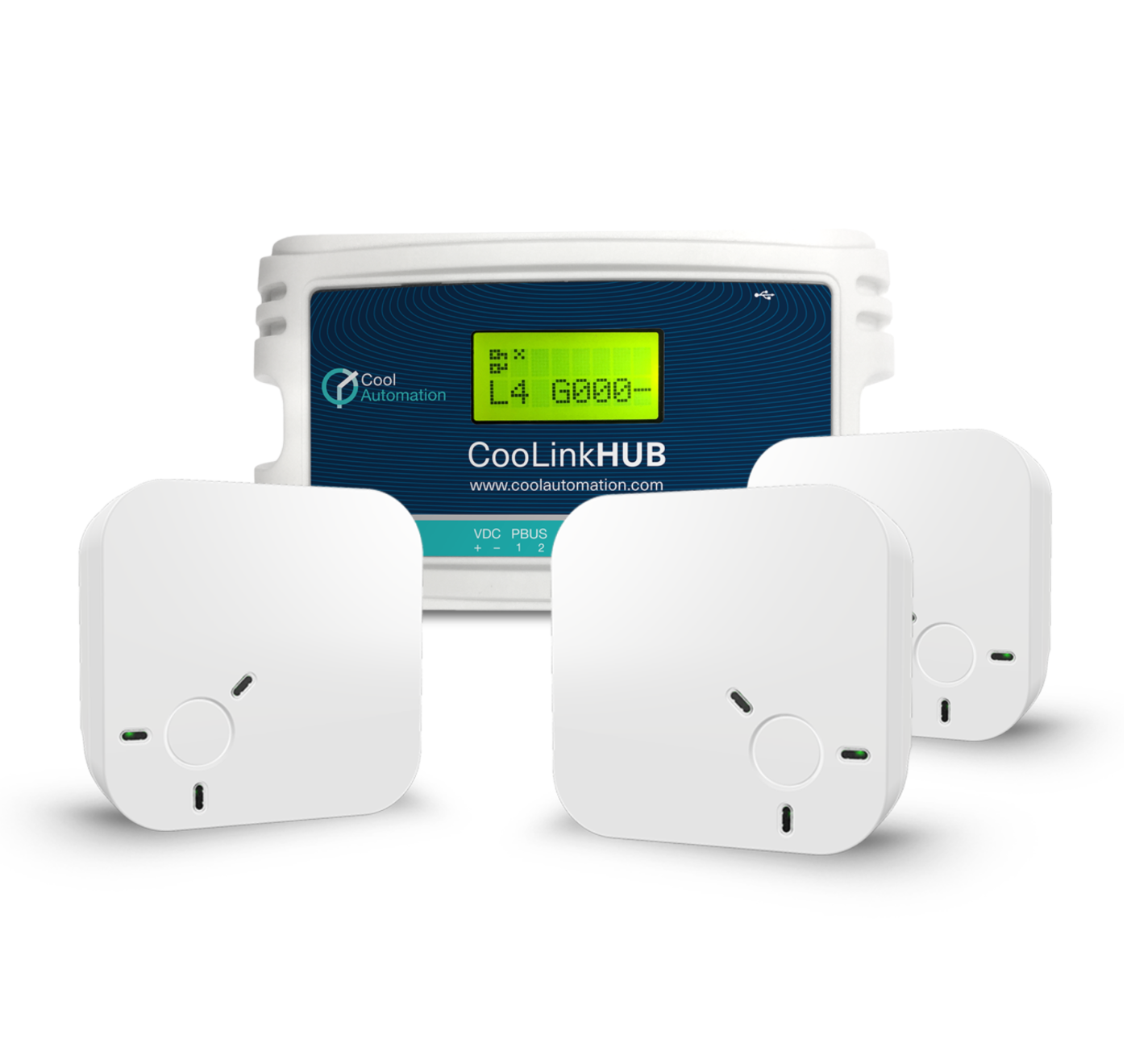

CooLinkHubCoolPlugs HCL

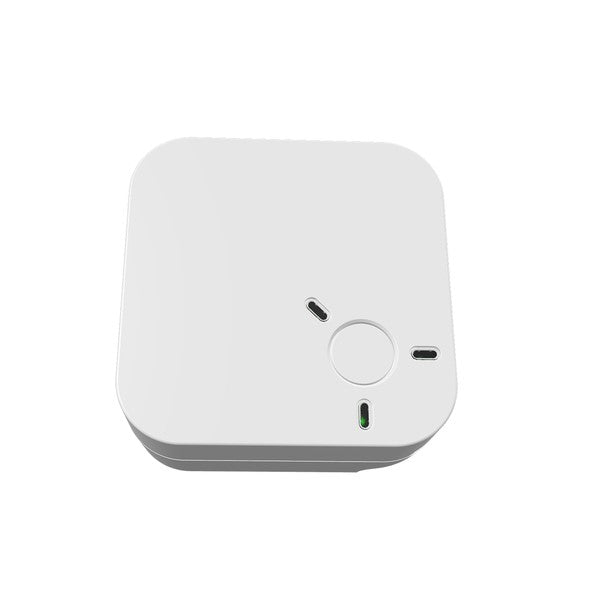

The solution combines two key elements: CoolPlug, a device that easily connects to the indoor unit and CooLinkHub that links all CoolPlugs together, providing connectivity to the relevant channels (Ethernet (TCP-IP), RS232, Modbus, and KNX). As a result, you can connect to any Home Automation system, as well as take advantage of our cloud-based CoolRemote app.

Please note:  CooLinkHub is a generic device not brand specific.
CoolPlug is brand specific and currently supports the following brands:

Daikin KRP(P1P2)

Mitsubishi Electric (Coming soon)

Hitachi (Coming soon)

LG

Panasonic/Sanyo (for ducted systems) (Coming soon)

Daikin Siesta (Coming soon)

Mitsubishi Heavy Industries

Fujitsu

Toshiba (for ducted only) (Coming soon)





Please select your brand specific CoolPlug from links above.

CoolPlug and CooLinkHub supports all major home automation systems, such as Fibaro, Push, Control 4, Savant, Lutron, Elan, Philips Dynalite, RTI, URC and many others.

Product Details

We suggest consulting the quick installation guide, found below on this webpage, to understand the process, but essentially it involves three simple steps:

  1. Connect CoolPlug(s) to indoor units
  2. Connect CoolPlug(s) to CooLinkHub
  3. Connect CooLinkHub to a router or to Home Automation central controller

FIBARO HC2 Integration

 To integrate CooLinkHub with Fibaro HC2 you'll need to install Fibaro PlugIn for CoolMaster -> From the tab 'Plugins' select Climate(Tab Available) ->CoolAutomation

CMFibaro

CooPlug Connectivity

 467X269 coolplugCooLinkHub Connectivity Diagram 300x266

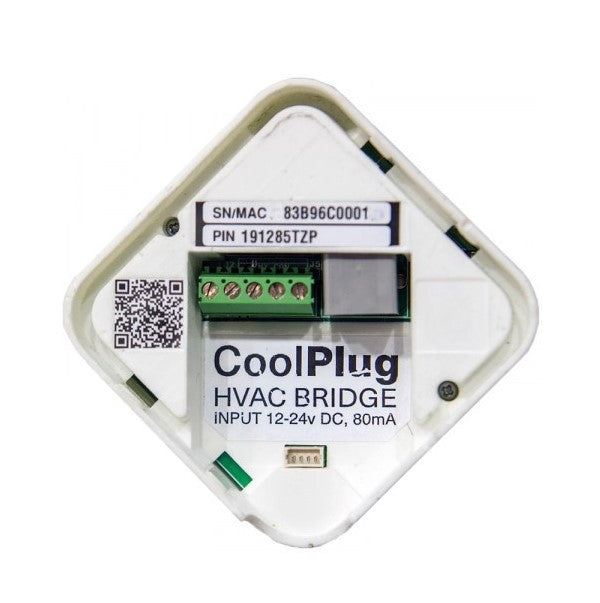

CoolPlug CooLinkHub ports

Compatibility

CooLinkHub supports the following brands:

Daikin (DK)
Fujitsu (General) (FJ)
Hitachi (HT)
LG (LG)
Mitsubishi Electric (ME)
Mitsubishi Heavy (MH)
Panasonic (PN)
Sanyo (SA)

Please note: For the full list of compatible Units see this link Compatibility

Product Support

Manuals:

CooLinkHub Programmer Reference Manual (PRM)
CoolPlug CooLinkHub Brochure
CoolPlug CooLinkHub Installation Guide
CoolPlug Programmer Reference Manual (PRM)

Videos / Youtube:


Technical Specifications


Connection type
 RS232, RS485, Ethernet, RTU BMS
Power
 12VDC-24VDC
LCD
 2.8" / 240 x 320 / 262K
Operation Range
 N/A
Operation Humidity
 0% ~ 96% non-condensing
Operation Temperature
 -10 + 60 C0
Storage Temperature
 -10 + 70 C0
Weight
 0.7Kg
Housing
 ABS 156x109x35
Compliance
 FCC, CE (EN 60335-1, EN 60335-2-40)
