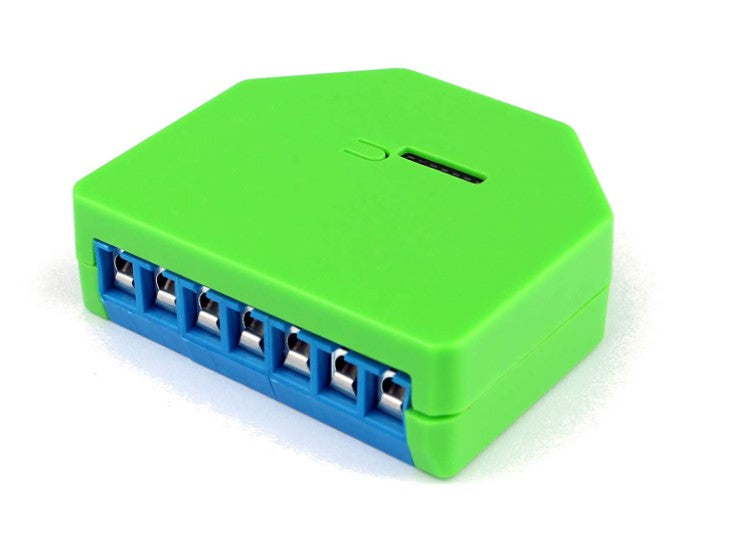

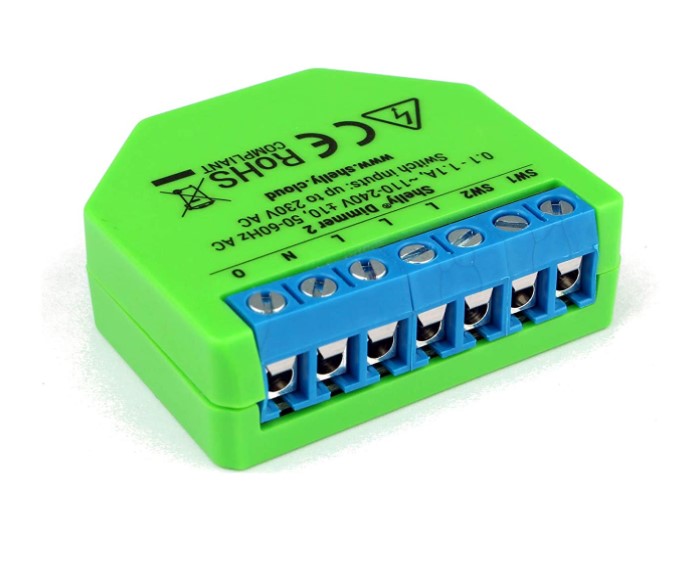

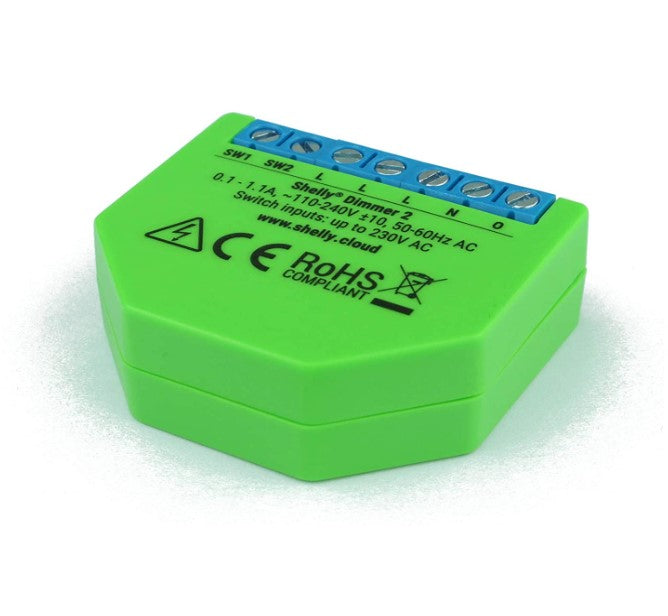

Shelly Dimmer 2 WiFi-operated dimmer
Control a wide range of halogen lights, dimmable LED and ferromagnetic transformers from anywhere with the smallest WiFi-operated dimmer in the world – Shelly Dimmer2 working without a neutral line.
Shelly Dimmer2
- has an embedded webserver
- has been designed for installation in a limited space, such as wall mounts, electrical control panels, etc.
- can function as a standalone device, as an accessory to a home automation controller, or it may be used as another automation system's component
- overload, and temperature protection
Need a Bypass?
If the total connected load is less than 20w then you will need The Shelly Bypass
WARNING:
All electrical work must be carried out by a licensed electrician under the electrical safety act and AS/NZS300. Doing your own electrical can be dangerous.
POWER | |
Power supply AC | 110-230V ±10%, 50/60Hz |
SPECIAL FUNCTIONS | |
Device temperature protection | Yes |
Overload protection | Yes |
Power measurement | Yes |
Dimming | Yes |
Dimmable LED | 50-200VA / 10W – 200W |
Incandescent and halogen light sources | 10-220W |
Resistive-inductive loads ferromagnetic transformers | 50-150VA |
Working without a neutral line | Yes |
FEATURES | |
Colour changing | No |
Predefined effects | Yes |
Channels | 1 Channel |
Operational temperature | 0 to + 35 °C |
Device power consumption | < 1 W |
Intelligent On/Off | Yes |
Local and remote control | Yes |
Sunrise/Sunset | Yes |
Weekly Schedule | Yes |
UL Listed option | No |
CONNECTIVITY | |
Wireless/WiFi Protocol | 802.11 b/g/n |
Radiofrequency | 2400 - 2484 MHz |
Radio signal power | 1mW |
Range | up to 50 m outdoors and up to 30 m indoors (depending on the building materials) |
DIMENSIONS | |
Size | 42mm x 36mm x 14 mm |
Share
Shelly Dimmer 2
Great products, simple to setup & control.
We are dimming 6x SAL WAVE S9065TC - 8W downlights. It will dim to a very low brightness. Very responsive, we have it connected to Home Assistant with no issues.
Affordable and effective dimmer. Easy to install. So far so good.
No neutral setup with bypass installed. Has problems connecting to wifi and connected lights blink even at 100%
