Analog 0–30V Add-on for The Pill by Shelly

Analog 0–30V Add-on for The Pill by Shelly | DC Voltage & Sensor Measurement Accessory

The Analog 0–30V Add-on is designed to extend the voltage measuring capability of The Pill by Shelly, allowing it to measure analog sensors and DC voltages up to 30V. It is ideal for monitoring popular analog sensors with 0–5V output, as well as battery voltage levels such as 4.2V, 12V, and 24V.

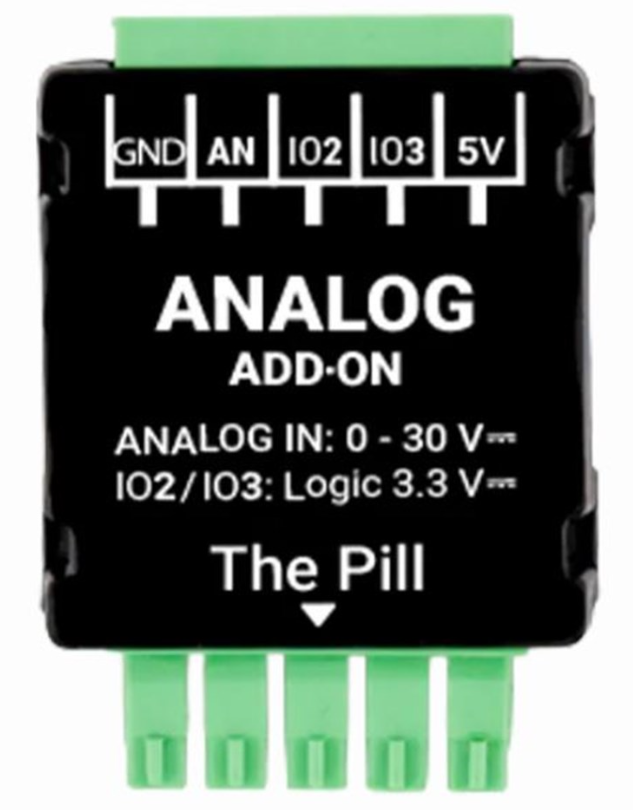

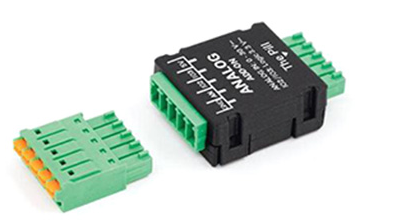

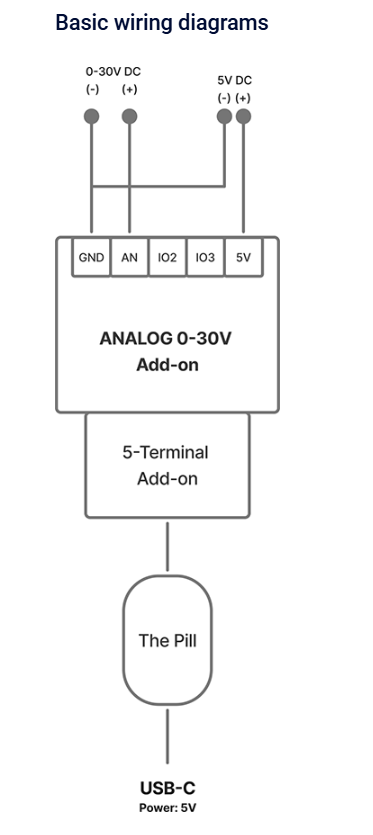

This compact add-on connects to The Pill using the required 5-Terminal Add-on and provides one analog input, two configurable digital input/output terminals, and optional 5V power terminals for connected sensors or peripherals.

Key Features

• Measures DC voltage from 0V to 30V
• Suitable for analog sensors and battery monitoring
• Supports common sensor outputs such as 0–5V
• Ideal for measuring 4.2V, 12V, and 24V batteries
• 1 analog input: AN
• 2 configurable digital input/outputs: IO2 and IO3
• Optional 5V and GND power terminals
• Compact black module design
• Designed for use with The Pill by Shelly
• Requires 5-Terminal Add-on for connection

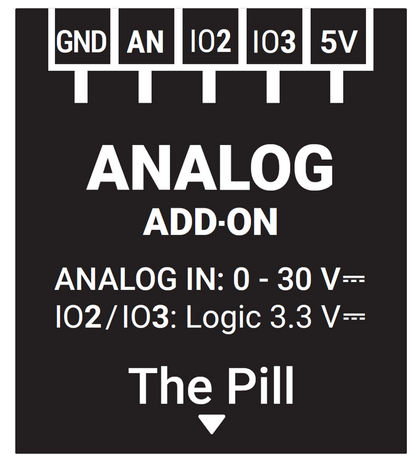

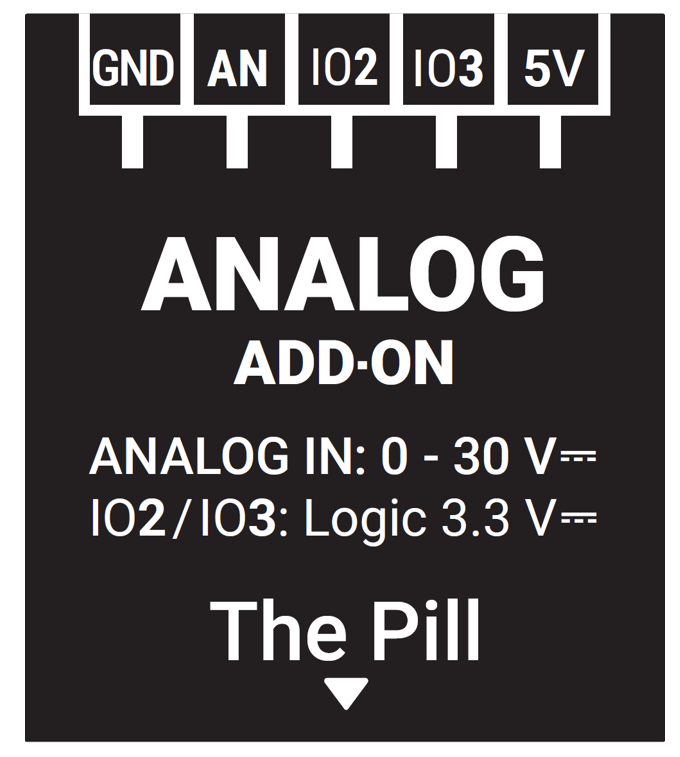

Device Interfaces

• AN: Analog input for measuring connected sensors or batteries, 0–30V DC
• IO2: Configurable 3.3V logic-level digital input or output
• IO3: Configurable 3.3V logic-level digital input or output
• GND: Reference ground for connected sensors or power supply
• 5V: Power output for sensors or 5V power for The Pill

Specifications

• Size: 36.5 mm x 26.5 mm x 11.5 mm
• Weight: 8 g
• Colour: Black
• Voltage measurement range: 0V–30V DC
• Voltmeter accuracy: ±(2% + 5d)
• Digital input max voltage: 3.3V
• Max switching voltage: 3.3V logic-level
• Max switching current: 20mA
• Operating temperature: 0°C to 40°C
• Humidity: 30% to 70% RH

The Analog 0–30V Add-on for The Pill by Shelly is a practical accessory for expanding sensor and battery monitoring in smart automation, DIY electronics, and low-voltage control projects.
