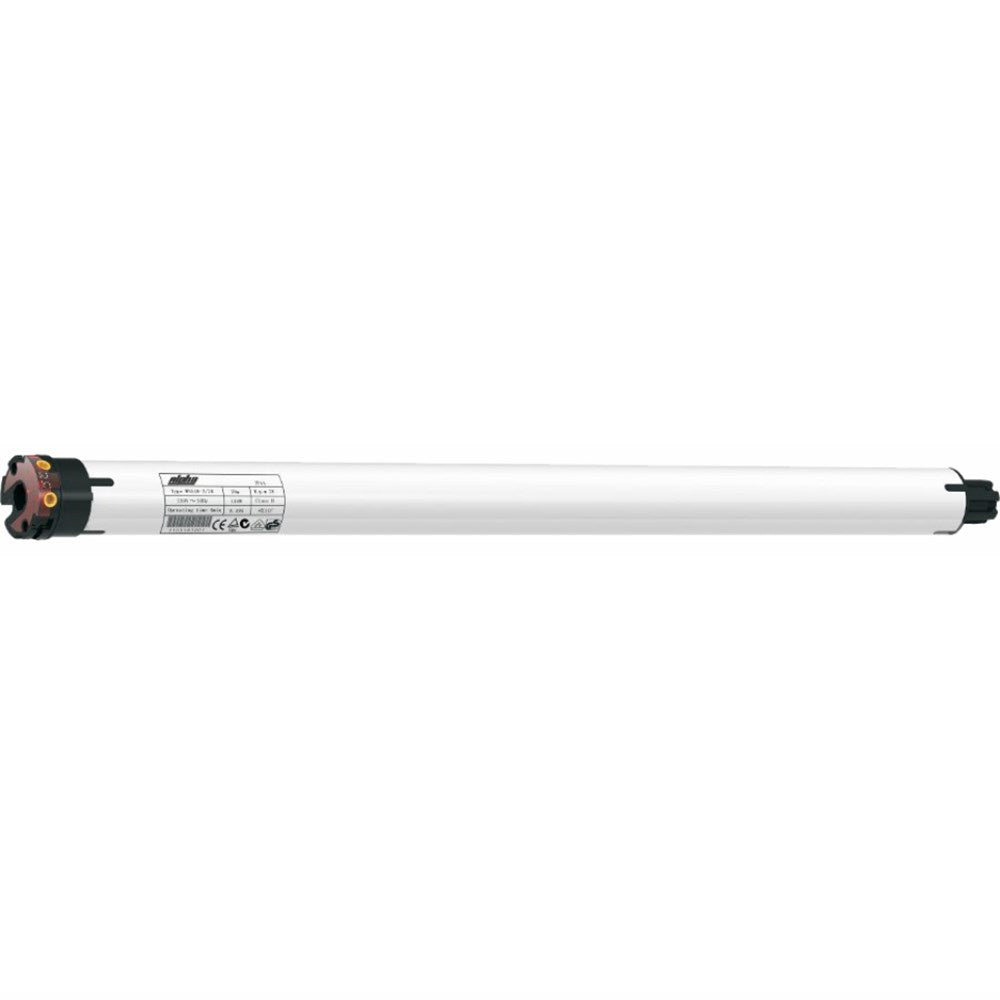

Alpha 35mm 240v Tubular Motor

The WSS40-5/28 Universal Tubular Motor is a reliable and versatile motor designed for blinds, screens, and other tubular applications. On its own it provides smooth and durable operation, but with the addition of a Shelly 2PM, Pro Shutter, Wave 2PM, or the Oz Smart Motor Control Puck, it can be upgraded into a smart motor. Once smart-enabled, it easily connects with popular hubs like Fibaro, Home Assistant, and Zemismart, giving you full automation, scheduling, and remote control.

Key Features

• 35 mm diameter, standard tubular motor

• Mechanical limit switches.

• Torque: 5 Nm

• Speed: 28 rpm

• Power: 240 V, draws approx. 0.49 A, 116 W consumption.

• IP rating: IP44 (splash resistant)

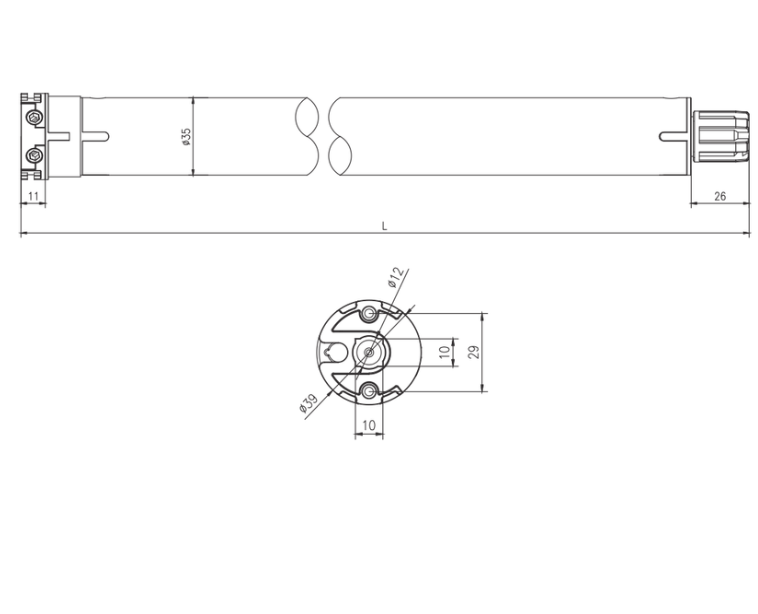

• Length: ~ 480 mm; Max turns: 40; weight: ~1.34 kg.

What Makes It Smart

Take your WSS40-5/28 beyond basic functionality. With a few extra smart modules, you can transform it into a fully smart motorised solution:

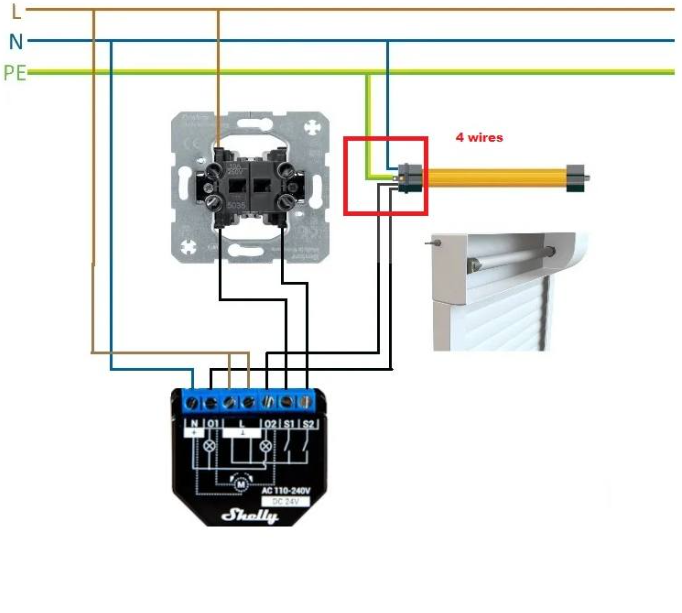

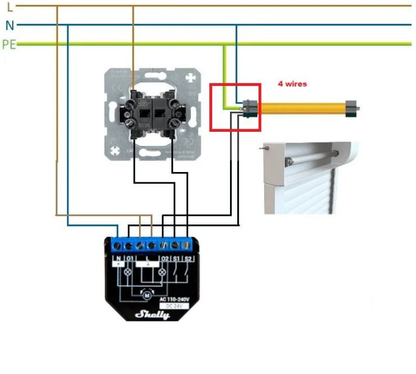

• Add a Shelly 2PM, Pro Shutter, or Wave 2PM to convert into a motor you can control via WiFi / wireless.

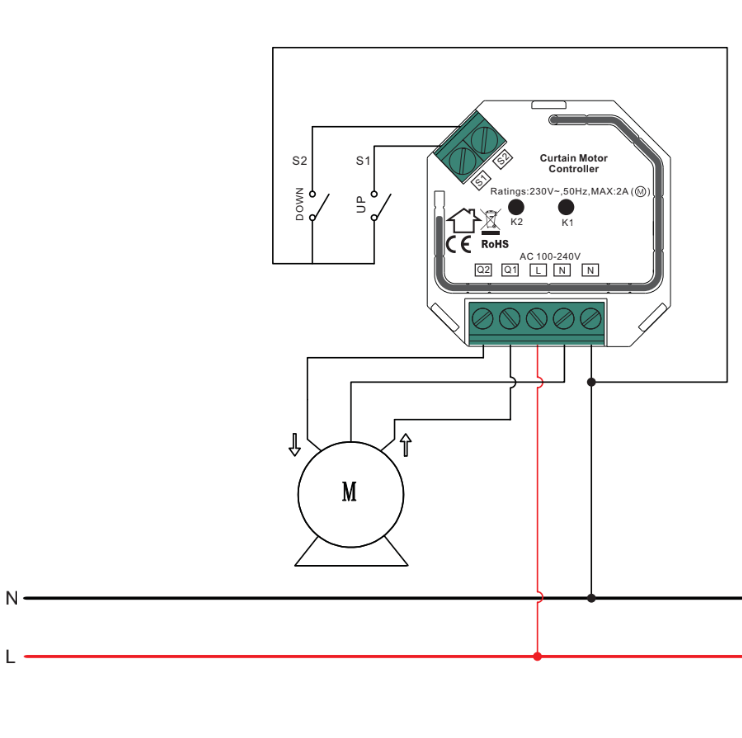

• It works seamlessly with the Oz Zigbee Motor Control Puck — for local control & simple smart upgrades.

• The can be compatible with popular smart home hubs/systems: Home Assistant, Fibaro, Zemismart Hub, and others.

So whether you want scheduled automation, voice control, or remote operation — this motor can support it once the smart module is added.

Applications

Ideal for:

• Roller blinds

• Projection screens

• Other tubular motor use-cases where standard spec, reliability and easy upgradeability are important

What’s Included

• Motor WSS40-5/28 universal

• Bracket A3304

• Crown & Drum (C&D) A2310

Why Choose the WSS40-5/28

• Reliable basic workhorse with solid torque and speed.

• Flexible & upgradable — can stay “dumb” or become part of your smart home.

• Good IP rating and standard build quality.

Specifications at a Glance
