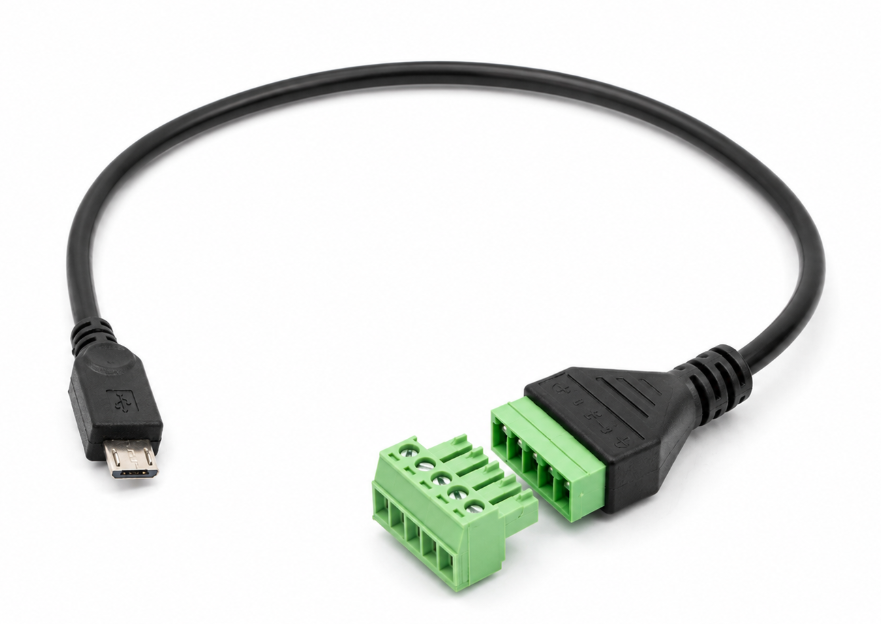

5-Terminal Add-on (Accessory for The Pill by Shelly)

5-Terminal Add-on for The Pill by Shelly – Sensor & I/O Expansion Module

The 5-Terminal Add-on for The Pill by Shelly is a versatile accessory designed to unlock and extend The Pill’s hardware capabilities. It provides easy access to multiple input/output terminals, allowing The Pill to be used with digital inputs, digital outputs, analog sensors, and supported temperature sensors.

With terminals for 3 logic-level input/outputs, 5V power, and GND reference, this add-on makes it simple to connect external sensors such as DS18B20 and DHT22, or use analog input and digital control functions in your smart automation setup.

Key Features

• Expands The Pill with accessible terminal connections
• Supports DS18B20 and DHT22 temperature sensors
• Includes 1 multi-purpose IO terminal for sensor, analog, or digital use
• Provides 2 additional digital input/output terminals
• Supports analog input range from 0–2.5V
• Logic-level input/output support at 3.3V
• Includes 5V and GND terminals for connected sensors or power reference
• Compact, lightweight, and easy to integrate

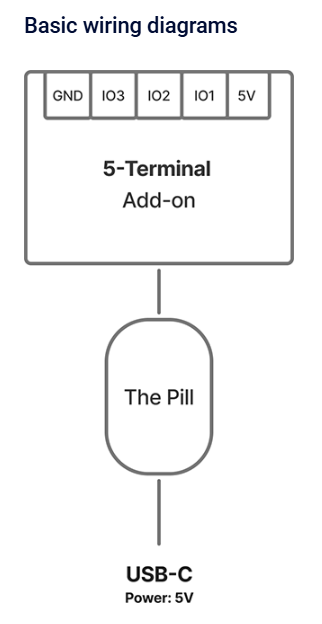

Device Interfaces

• 5V: Power output for connected sensors or 5V power for The Pill
• IO1: Configurable for DS18B20, DHT22, analog input 0–2.5V, digital input, or digital output
• IO2: Configurable as digital input or digital output
• IO3: Configurable as digital input or digital output
• GND: Ground reference for connected sensors or 0V power supply reference

Specifications

• Size: 44 mm x 23 mm x 10 mm
• Weight: 23 g
• Cable length: 24 cm
• Wire colour: Black
• Shell colour: Black
• Operating temperature: 0°C to 40°C / 32°F to 105°F
• Storage temperature: -20°C to 40°C / -5°F to 105°F
• Humidity: 30% to 70% RH
• Maximum altitude: 2000 m / 6562 ft
