4G Heavy Duty Portable Tracker

4G Heavy-Duty Portable GPS Tracker

Long-Lasting, Portable Vehicle and Asset Tracking

Protect and monitor vehicles, equipment and valuable assets with this heavy-duty portable 4G GPS tracker. Its powerful 20,000mAh rechargeable battery and strong built-in magnets provide extended tracking without permanent wiring or complicated installation.

View the tracker’s current location through the LKGPS2 mobile app or web platform. Review historical routes, monitor multiple compatible trackers from one account and create alerts for movement, overspeeding, low battery, power loss, removal or entry into and exit from a defined area.

KEY FEATURES

• Portable 4G GPS tracking for vehicles, equipment and valuable assets
• Large 20,000mAh rechargeable battery
• Approximately 20 days of continuous tracking when reporting every 30 seconds
• Up to approximately 350 days on standby
• Strong built-in magnets for secure attachment to a suitable metal surface
• Real-time location through the LKGPS2 app or web platform
• Geo-fence alerts when the tracker enters or leaves a selected area
• Movement, vibration and displacement alerts
• Removal, low-battery, power-off and overspeed alerts
• Historical route and journey review
• GPS, AGPS and mobile-network positioning
• Timed and vibration-activated sleep modes
• App, web-platform and supported SMS access
• Multiple compatible trackers viewable from one account
• Rated GPS accuracy of up to 5 metres under suitable outdoor conditions

Battery-life figures are estimates. Actual performance depends on the reporting interval, sleep settings, movement, temperature, mobile and GPS signal strength and frequency of use.

IDEAL FOR

• Cars, utes, vans and work vehicles
• Trailers, caravans and mobile equipment
• Plant and machinery
• Valuable portable assets
• Personal vehicle monitoring
• Small fleets and commercial operations

HOW IT WORKS

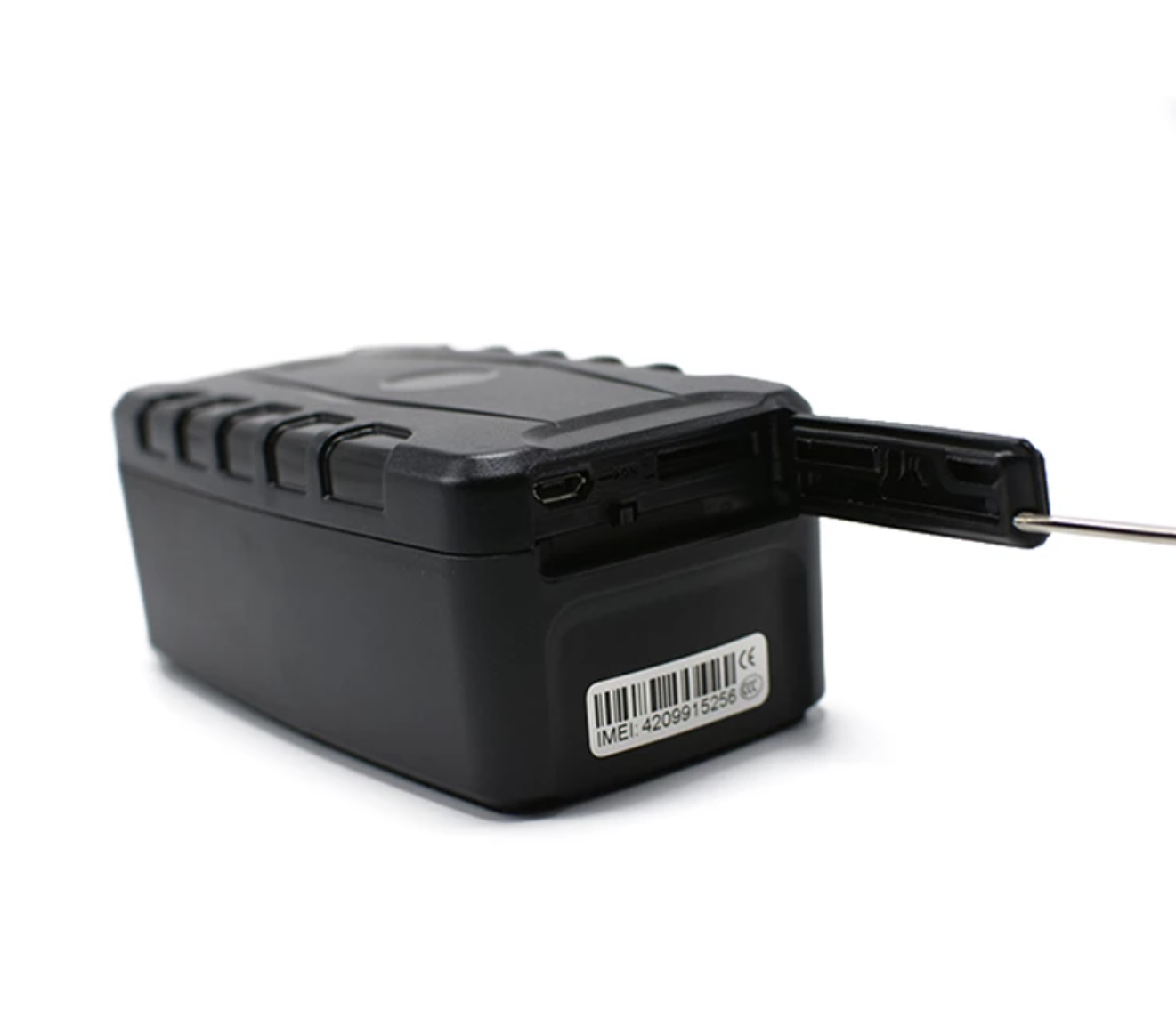

1. Insert an activated, compatible SIM card into the tracker.
2. Switch on the tracker outdoors or in an open area so it can obtain a GPS position.
3. Log in through the LKGPS2 mobile app or at www.lkgps.net.
4. View its current location, route history and available alerts through the tracking platform.

SIM CARD REQUIREMENTS

We recommend an Amaysim SIM using the Optus network with the $10 Pay As You Go option. Under typical tracker use, this may provide enough data for approximately one year. Actual usage, credit expiry and service conditions depend on the mobile provider and tracker settings.

The SIM must:

• Support mobile data, SMS and standard mobile network services
• Be activated with sufficient credit or an active service
• Use the correct APN for the selected mobile provider

Important: Data-only SIM cards are not compatible.

DEVICE SPECIFICATIONS

• Battery: Rechargeable 3.7V 20,000mAh
• Estimated continuous tracking: Approximately 20 days when reporting every 30 seconds
• Estimated standby time: Up to approximately 350 days
• Dimensions: 120 × 64 × 48 mm
• Network: 4G
• Positioning: GPS, AGPS and mobile-network positioning
• Rated GPS accuracy: Up to 5 metres under suitable outdoor conditions
• GPS acquisition: Approximately 35-80 seconds from a cold start and approximately 1 second from a hot start
• Operating temperature: -20°C to +55°C
• Charging: USB rechargeable
• Tracking access: LKGPS2 mobile app, web platform and supported SMS commands
• Communication protocols: UDP, TCP and HTTP
• Power-saving modes: Timed sleep and vibration-activated sleep

COMMON QUESTIONS

How does the tracker work?

After purchase, we configure the tracker and create your tracking account. Simple instructions are sent by email. Once a compatible SIM is installed and the tracker has obtained a GPS signal, you can view its location through the LKGPS2 app or web platform.

How long does the rechargeable battery last?

The 20,000mAh model provides approximately 20 days of continuous tracking when reporting every 30 seconds or up to approximately 350 days on standby.

These figures are estimates. Actual battery life depends on the reporting interval, sleep settings, movement, temperature, mobile and GPS signal strength and frequency of use.

How can I extend the battery life?

Use vibration-activated sleep mode so the tracker wakes when movement is detected. You can also increase the location-reporting interval or configure a timed sleep period when tracking is not required.

In standby mode, you can request the tracker’s location using a supported SMS command when needed.

Can it be mounted underneath a vehicle?

The strong built-in magnets allow the tracker to be attached to a suitable metal surface. However, the supplied manual instructs users to keep the device dry because rain and moisture may damage its internal circuitry.

Install the tracker in a dry, protected and secure location. Do not rely on it as a waterproof device.

IMPORTANT INFORMATION

• Mobile coverage is required for the tracker to send location information to the app or web platform.
• GPS performance is best outdoors or in an open area.
• Buildings, metal enclosures, underground parking and other obstructions may reduce accuracy or delay updates.
• Keep the tracker dry and protect it from rain, moisture, dust, chemicals and extreme temperatures.
• Do not mount the tracker near vehicle controls, moving parts, heat sources or safety systems.
• Confirm that the magnetic mounting surface is clean, suitable and secure before travel.
• Use the tracker lawfully and obtain any consent required before tracking a person, employee, vehicle or asset.
• Actual battery performance will vary according to settings and operating conditions.
