Shelly 1 Gen4 ANZ – Smart Switch with Potential-Free Contacts
The Shelly 1 Gen4 ANZ is a compact smart switch designed for modern homes and offices. With potential-free contacts, it allows remote control of electric appliances via smartphone, tablet, PC, or home automation systems. It works standalone on a local Wi-Fi network or integrates with cloud-based services.
Key Features
- Wi-Fi Connectivity: Monitor and control devices remotely.
- Smart Home Integration: Works with Google Assistant, Alexa, Samsung SmartThings, and Matter.
- Local & Cloud Control: Flexible operation modes.
- Bluetooth & Zigbee: Multi-protocol MCU ensures secure connection.
- User-Friendly Interface: Embedded web interface and reset button.
- Dry Contact: Volt-free relay output for safe integration.
- Range Extender: Wi-Fi and Zigbee repeaters for IoT devices.
- Scripting & API: ShellyScript, HTTP API, MQTT, Webhooks, UDP, and KNX IP support.
- Scheduling: Complex automation based on date and time.
- Virtual Components: Supports dynamic virtual components.
Use Cases & Applications
- Remote Appliance Control: Turn on/off devices from anywhere.
- Home Automation: Lights, fans, heaters, and more.
- Light Control: Automate LED, halogen, or incandescent lights with motion sensors.
- Garage Doors: Smart triggers with sensor monitoring.
- Fan & Ventilation: Automate based on occupancy or humidity sensors.
- Heaters & Towel Rails: Control devices up to 16A.
- Commercial: Lighting, meeting rooms, and security automation.
- Industrial & Utility: Pumps, motors, or network equipment control.
Technical Specifications
- Dimensions: 37x42x16 mm | Weight: 26 g
- Power Supply: 110–240 V~ | Consumption: <1W
- Max Switching: 16 A | 240 V~
- Operating Temp: -20°C to 40°C | Humidity: 30–70% RH
- Connectivity: Wi-Fi 802.11 b/g/n/ax, Bluetooth 5.0, Zigbee, Matter
- Microcontroller: ESP-Shelly-C68F, 8MB Flash
-

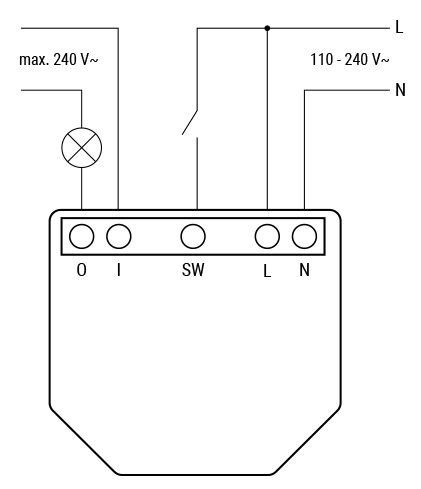

Inputs & Outputs:
- 1x Switch/Button input (potential-free)
- 1x Relay output (potential-free)
- Power supply inputs: N and L terminals
- Shelly proprietary serial add-on interface
- Safety: Overheating protection; supports resistive, capacitive, and inductive loads.
- Firmware Capabilities: Schedules, Webhooks, ShellyScript, MQTT.
