Buy 10 Shelly Plus 2PM Get 1 FREE - 2 channel Wi-Fi relay with power metering and cover (roller) control
Shelly Plus 2PM is a one-phase, two-channel smart relay supporting up to 10A per channel and 16A total current (18A peak). It is equipped with two power meters for each channel and an overpower protection function to limit your energy consumption. Cover (roller) control allows for the control and monitoring of roller shutters, blinds, curtains, gates, or other bi-directional AC motors.

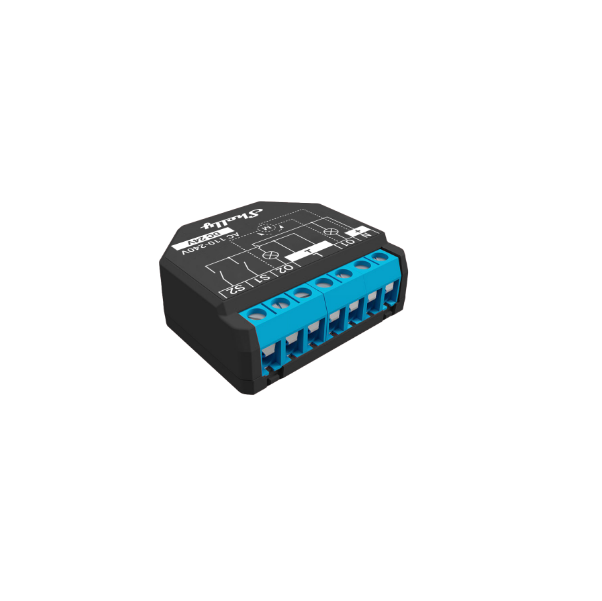

Shelly Plus 2PM
- Wi-Fi connectivity: Connects to your Wi-Fi network.No HUB required!
- Bluetooth: Add devices quick and easily via Bluetooth connection, using the Shelly Cloud App.
- two channels with the same phase
- Power metering on each channel
- Cover (roller) control: automate and adjust the position of roller shutters, blinds, gates, curtains, awnings, sliding doors, and other bi-directional motors.
- Wide range of voltage support
- Scripting, schedules, and webhooks
ONE DEVICE – DIFFERENT POSSIBILITIES
2 Channel Smart Relay
Automate lights and monitor their real-time power consumption.
Cover (Roller) Control
Automate and control the current position of roller shutters, curtains, garage doors, awnings, gates, electric sliding doors, pool covers, and bi-directional AC motors.
CURTAINS THAT FOLLOW YOUR SCHEDULE
Shelly Plus 2PM supports cover control, which makes it perfect for automating curtains, roller shutters, garage doors, awnings, gates, and any other two-directional motor in your home. Use the "Schedules" function to create the perfect morning and evening routines by setting Shelly Plus 2PM to open and close the curtains in your home at pre-set hours every day. Additionally, precise position control allows you to set the desired intermediate position of your curtains in percent (%).
FUNCTIONALITIES
Wi-Fi operated
Connect Shelly Plus 2PM to your Wi-Fi network. No HUB required.
Bluetooth
Add devices quickly and easy via Bluetooth connection, using Shelly Cloud App.
Extremely fast processor
For immediate command execution and notification (ESP32).
Cover (roller) control
Control two-directional AC motors and set your desired position
Enhanced safety
Enhanced over-temperature protection with software thresholds for control and prevention of failures.
Power metering with data storage
Two integrated precise power meters allow you to monitor the consumption for each channel
Wide range of voltage support
Can be powered by 110-240V AC & 24V DC, and supports up to 10A per channel and 16A total
Improved API interface
Broad range of cloud connections and local integrations with much lower integration cost
Specification:
| POWER | |
| Power supply AC | 110 – 240 V, 50/60 Hz |
| Power supply DC | 24 V ±10%, |
| Channels | 2 channels |
| Max. current per channel | 10 A |
| Max total device current | 16 A (18 A peak) |
| Max. switching voltage | 240 VAC / 30 VDC |
| Device power consumption | < 1.4 W |
| SPECIAL FUNCTIONS | |
| Cover (roller) control | Yes, with position control – roller shutters, blinds, awnings, curtains, gates, shades, sliding door, pool covers, garage door, bi-directional AC motors |
| Overload protection | Yes |
| Overtemperature protection | Yes |
| Power measurement | Yes (AC only) |
| Working without a neutral line | No |
| Dry contacts | No |
| FEATURES | |
| HTTP/HTTPS webhooks | Yes |
| Custom scripts (mJs) | Yes |
| Ambient temperature | -20 °C to + 40 °C |
| Local and remote control | Yes |
| Sunrise/Sunset | Yes |
| Weekly Schedule | Yes |
| UL listed option | No |
| CONNECTIVITY | |
| Wireless/Wi-Fi Protocol | 802.11 b/g/n |
| Radio frequency | 2400 – 2500 MHz |
| Radio signal power | 1 mW |
| Range | up to 50 m outdoors and up to 30 m indoors (depending on the building materials) |
| Bluetooth | Yes |
| DIMENSIONS | |
| Size | 42x38x17 mm |
