Zigbee Ceiling PIR Sensor Manual

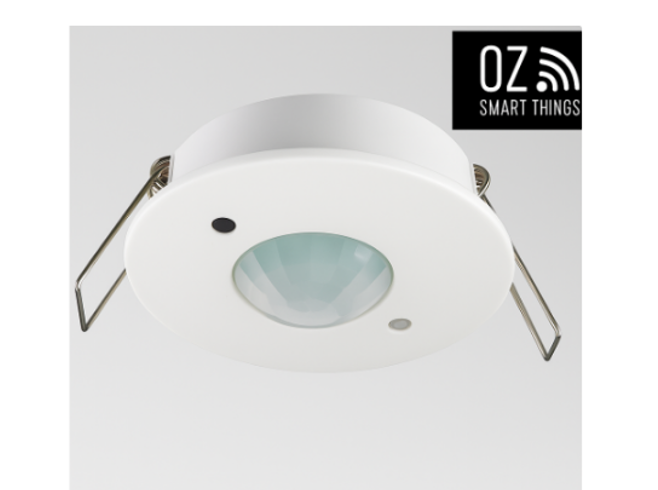

SR-ZG9030A-PIR Zigbee Motion & Light Sensor Manual
This manual provides detailed instructions for the SR-ZG9030A-PIR Zigbee Motion Sensor with Light Sensor and 0-10V Dimming. It is a 4-in-1 device that integrates occupancy sensing, daylight harvesting, dimming control, and Zigbee 3.0 wireless communication for smart lighting automation.
Product Data
Physical Information
• Dimensions / Cutting Hole: 70-73mm
• Material: ABS / White
• Wire Gauge: 26-16 AWG (0.2-1.3 mm²)
• Strip Length: 7-9 mm
Electrical Information
• Input Voltage: 12/24 VDC
• Current Consumption: <30mA (sink)
• Dimming Control: Analog 0-10V
• Dimming Output: 4mA (sink) / 20mA (source)
• Status Indicator: Red LED (motion detection)
Wireless Communication
• Frequency: 2.4GHz
• Protocol: Zigbee 3.0
• Range: 100ft (30m) Line of Sight
• Certification: FCC/IC, CE
Lighting Control Features
• Continuous dimming
• Individual/group addressing
• Scene control
• Task tuning (0-100%)
• Autonomous sensor-based control
• Scheduler control
Sensing
• Occupancy Sensing: PIR sensor
• Detection Angle: 130°
• Detection Sensitivity: Adjustable (0-15)
• Lux Detection Range: 0-1000 Lux
• Recommended Mounting Height: 2.5m (8ft)
Environment
• Operating Temperature: 32℉ to 104℉ (0℃ to 40℃)
• Humidity: 0-95% (non-condensing)
• Certification: cULus Listed, CE
• Indoor use only
Product Description
The SR-ZG9030A-PIR is designed for low bay applications requiring a medium detection area and smart automation. It enables lighting manufacturers to integrate wireless control and sensing into fixtures. Applications include offices, meeting rooms, corridors, and residences.
Key Features
· Zigbee 3.0 compliant
· PIR motion detection
· Daylight harvesting
· Works with 0-10V dim-to-off LED drivers
· Autonomous sensor-based control
· OTA firmware upgrade
· Ceiling recessed installation
· Energy code compliance
· Robust mesh network
· Compatible with universal Zigbee platforms
Benefits & Applications
• Offices
• Meeting Rooms
• Corridors
• Residences
Commissioning & Operation
The sensor can be paired and configured via Zigbee gateways. Supported operations include:
• Zigbee network pairing
• TouchLink commissioning
• Factory reset (manual or via switch)
• OTA firmware updates
• Find and Bind mode
• Learning and deleting with Zigbee Green Power Switches
After commissioning, the sensor controls dimming, daylight harvesting, and occupancy responses, with adjustable delay times, sensitivity, and lux thresholds.
Proprietary Attributes & Configuration
The device supports customization of parameters such as motion sensitivity, dimming levels, lux thresholds, delay times, and PWM output. These values can be modified either via Zigbee gateway attributes or the dedicated mobile app 'Sensor Tools' (available on App Store and Google Play).
Wiring Diagram
Refer to the included wiring diagram for correct connection with 12/24V power supply and 0/1-10V dimmable LED driver.
Detection Pattern
The PIR motion detection area covers up to 16m depending on mounting height. Coverage is divided for slow and fast movements.
Coverage Top View
Product Dimensions
