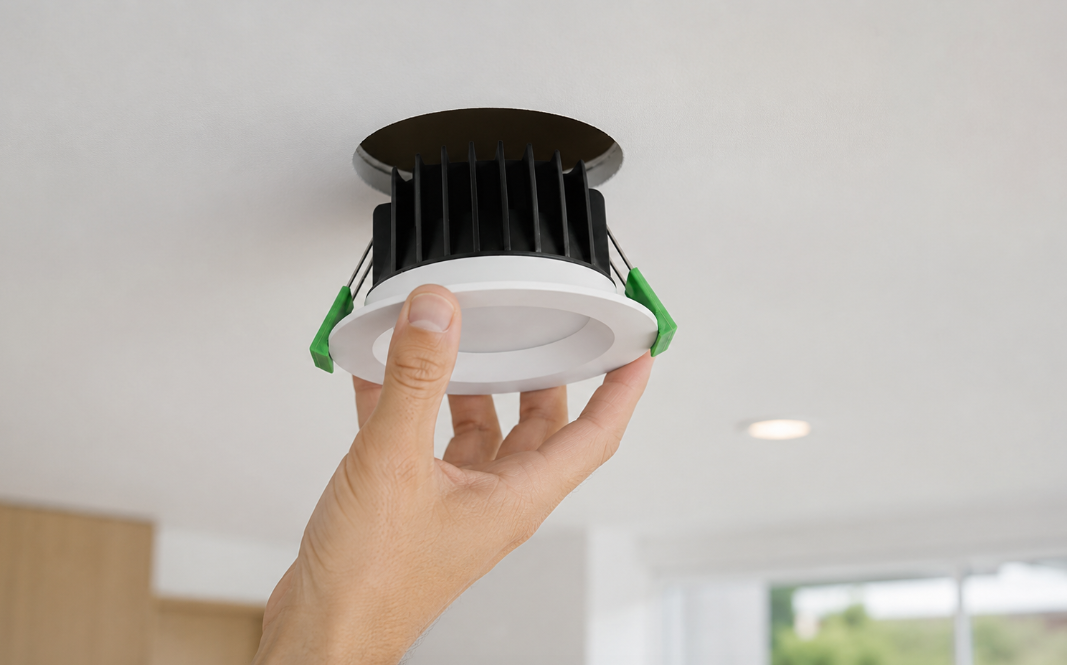

Oz Smart RGBW Matter Downlight

How to Set Up Your Matter Smart Downlight

Matter makes it easier to control compatible smart-home devices across multiple platforms. Your Matter smart downlight can be added using the Matter QR code or numerical setup code supplied with the product.

Before You Begin

Before starting, make sure:

• Your phone is connected to a 2.4 GHz Wi-Fi network.
• Bluetooth is enabled on your phone.
• Your phone, Matter controller and downlight are within reliable network range.
• The downlight is switched on.
• You have the Matter QR code or numerical setup code ready.
• Your preferred smart-home app is updated to the latest version.

How to Put the Downlight Into Pairing Mode

When powered on for the first time, the downlight should automatically enter pairing mode. The light will begin pulsing or “breathing” to indicate that it is ready to connect.

If the downlight does not begin pulsing, reset it as follows:

1. Switch the downlight on and off five times.
2. Allow approximately three seconds between each power cycle.
3. After the fifth cycle, leave the downlight switched on.
4. Wait for the light to begin pulsing or breathing.

The downlight is now ready to be added to your preferred Matter-compatible platform.

Connecting the Downlight to Apple Home

A compatible Apple home hub, such as a HomePod mini, may be required for full functionality and remote control.

1. Make sure your Apple home hub has already been added to the Apple Home app.
2. Switch on the Matter downlight and confirm that it is in pairing mode.
3. Open the Home app on your iPhone or iPad.
4. Tap the + icon in the upper-right corner.
5. Select Add Accessory.
6. Scan the Matter QR code supplied with the downlight.
7. If the QR code cannot be scanned, select the option to enter the setup code manually.
8. Follow the instructions displayed in the app.
9. Assign the downlight to a room and give it a recognisable name.

Once connected, press and hold the downlight’s tile in the Home app to access its available controls.

Connecting the Downlight to Google Home

A compatible Google Home hub or Matter controller should be added to your Google Home account before beginning.

1. Confirm that your Google hub is connected and visible in the Google Home app.
2. Switch on the Matter downlight and place it into pairing mode.
3. Open the Google Home app.
4. Tap Add or the + icon.
5. Select Set up device or Add new device.
6. Choose Matter-enabled device when prompted.
7. Scan the downlight’s Matter QR code.
8. Follow the on-screen instructions to complete the connection.
9. Select the room where the downlight is installed and give it a suitable name.

The downlight can then be controlled through the Google Home app or with compatible Google Assistant voice commands.

Connecting the Downlight to Amazon Alexa

Before starting, make sure a compatible Alexa Matter controller has been added to your Alexa account.

1. Switch on the Matter downlight and confirm that it is in pairing mode.
2. Open the Amazon Alexa app.
3. Select Devices.
4. Tap the + icon in the upper-right corner.
5. Select Add Device.
6. Choose Other, followed by Matter when available.
7. Scan the Matter QR code or enter the numerical setup code.
8. Follow the instructions in the Alexa app to finish connecting the downlight.
9. Assign the downlight to the appropriate room or group.

After setup, you can control the downlight through the Alexa app or compatible Alexa voice commands.

Connecting the Downlight to Samsung SmartThings

You will need a compatible SmartThings hub or Samsung device with Matter controller functionality.

Set Up the SmartThings Hub

If your SmartThings hub is already working in the app, proceed directly to the next section.

1. Connect the SmartThings hub to your network and power supply.
2. Open the SmartThings app.
3. Tap the + icon in the upper-right corner.
4. Select Add device.
5. Choose Samsung devices, followed by Smart Home Hub.
6. Follow the instructions displayed in the app until the hub has been added successfully.

Add the Matter Downlight

1. Switch on the downlight and confirm that it is in pairing mode.
2. Open the SmartThings app.
3. Tap the + icon and select Add device.
4. Choose Partner devices or select the option to scan a QR code.
5. Scan the Matter QR code supplied with the downlight.
6. Alternatively, enter the setup code manually.
7. Select your 2.4 GHz Wi-Fi network when prompted.
8. Enter your Wi-Fi password and complete the remaining instructions.
9. Assign the downlight to a room and give it a recognisable name.

Troubleshooting Pairing Problems

If the downlight cannot be discovered or added, try the following:

• Confirm that your phone is connected to a 2.4 GHz Wi-Fi network.
• Make sure Bluetooth is enabled.
• Move your phone and Matter controller closer to the downlight.
• Check that the downlight is pulsing or breathing before attempting setup.
• Close and reopen your smart-home app.
• Restart your phone and Matter controller.
• Reset the downlight by switching it on and off five times, allowing approximately three seconds between each cycle.
• Make sure the Matter QR code belongs to the downlight being installed.
• If the QR code cannot be scanned, enter the numerical setup code manually.

Enjoy Simpler Smart Lighting with Matter

Once connected, your Matter smart downlight can be controlled through your chosen smart-home app. Depending on the platform and available features, you can adjust the lighting, organise it by room, include it in automations and control it using compatible voice assistants.
